Charging Port Flex Cable
Alcatel 3X 2020 Charging Port Flex Cable Replacement
- Fits
- Alcatel 3X 2020
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

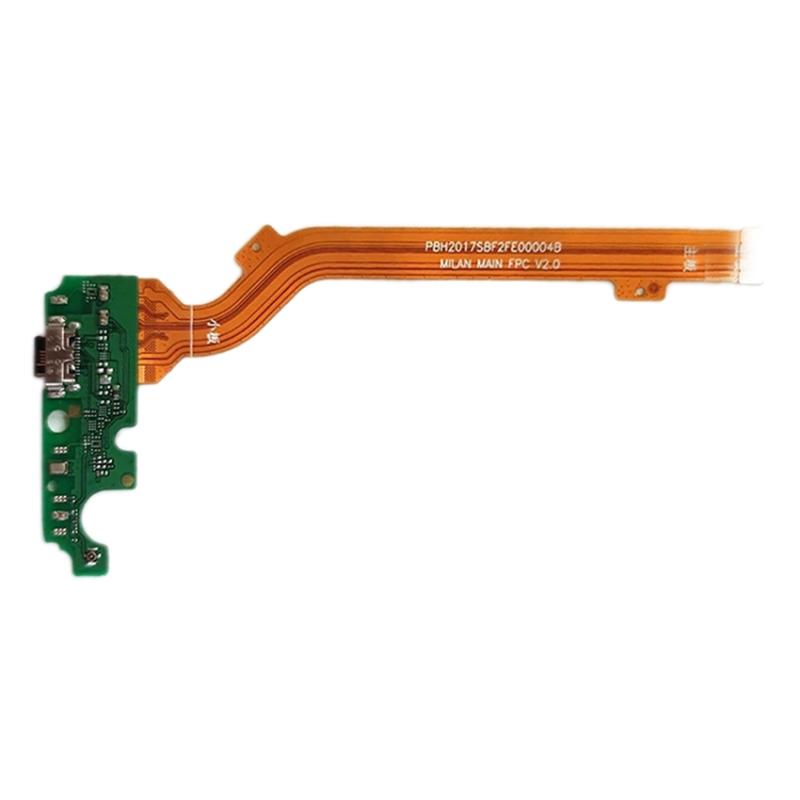

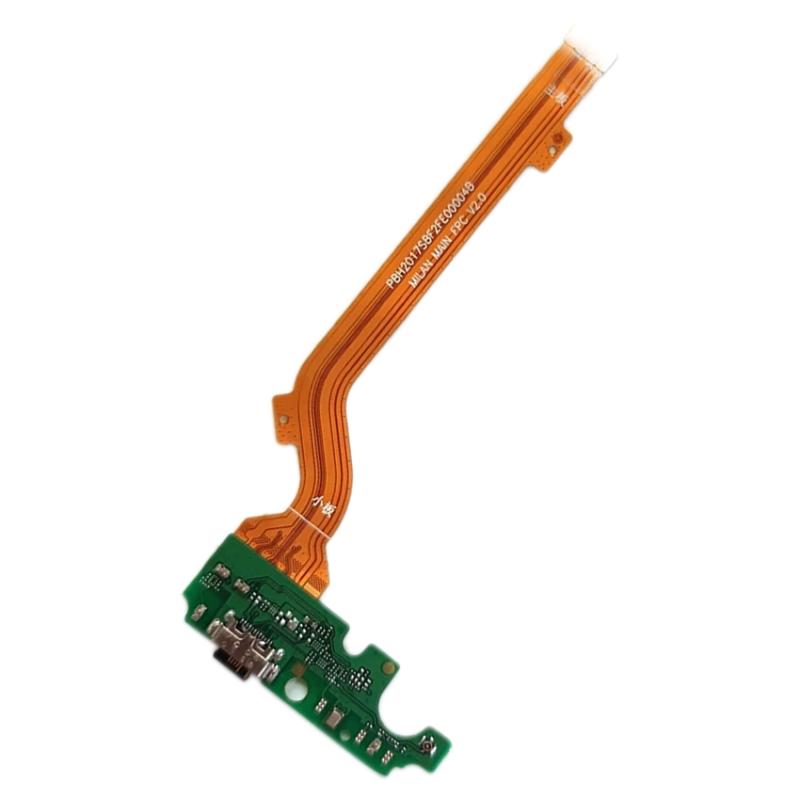

The Alcatel 3X 2020 charging port sits at the bottom of the phone on a flex cable that links it to the main board. A worn port, liquid damage or a cable pulled at an angle can stop the phone charging or connecting to a computer.
This flex has the port already fitted, so no soldering is needed. The old flex is unplugged and the new one fitted in its place.
Compatibility
Specifications and compatibility
- Part
- Charging Port Flex Cable
- Compatible with
- Alcatel 3X 2020
- Model numbers
- 5061 · 5061U · 5061A
- Does not fit
- Alcatel 3X 2019, 1S 2020 or any other model
- Fixes
- Loose or failed charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with Alcatel 3X 2020
- In the box
- 1 × charging port flex cable for Alcatel 3X 2020.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
How to check your model
Open Settings › About phone. The model should read 3X (2020) and the model number should start 5061.
The 3X 2020 has a different charging part from the 3X 2019 (5048). Check before ordering.
Professional installation
How a technician fits this part
- Power the Alcatel 3X 2020 off and remove the SIM tray.
- Remove the back cover with a plastic opening tool, then remove the screws holding the inner cover.
- Disconnect the battery connector before touching any other part.
- Unplug the old charging port flex from the main board and lift it out.
- Fit the new flex in the same position and press its connector firmly home.
- Refit the inner cover, screws and back cover.
- Reconnect the battery, power on and test charging and USB data.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Alcatel 3X 2020?
Yes, if your model number is 5061, 5061U or 5061A.
Does it fit the Alcatel 3X 2019?
No. The 3X 2019 (5048) uses a separate charging port board. Choose the 3X 2019 listing instead.
Is the port already on the flex?
Yes. The USB port is already fitted to the flex cable, so it is a plug-in swap with no soldering.
Is it made by Alcatel?
No. It is a brand new, OEM-quality charging port flex cable made to fit the Alcatel 3X 2020, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Alcatel 3X 2020 has to be opened carefully with plastic tools, and the battery must be disconnected before the new part is connected.
