Charging Port Connector
Amazon Fire HD 8 Charging Port Connector Replacement
- Fits
- Amazon Fire HD 8
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On this Kindle Fire HD 8 the charging port is soldered directly to the main board. When it wears loose, breaks off or the pins bend, the tablet stops charging and cannot be fixed by swapping a flex cable.

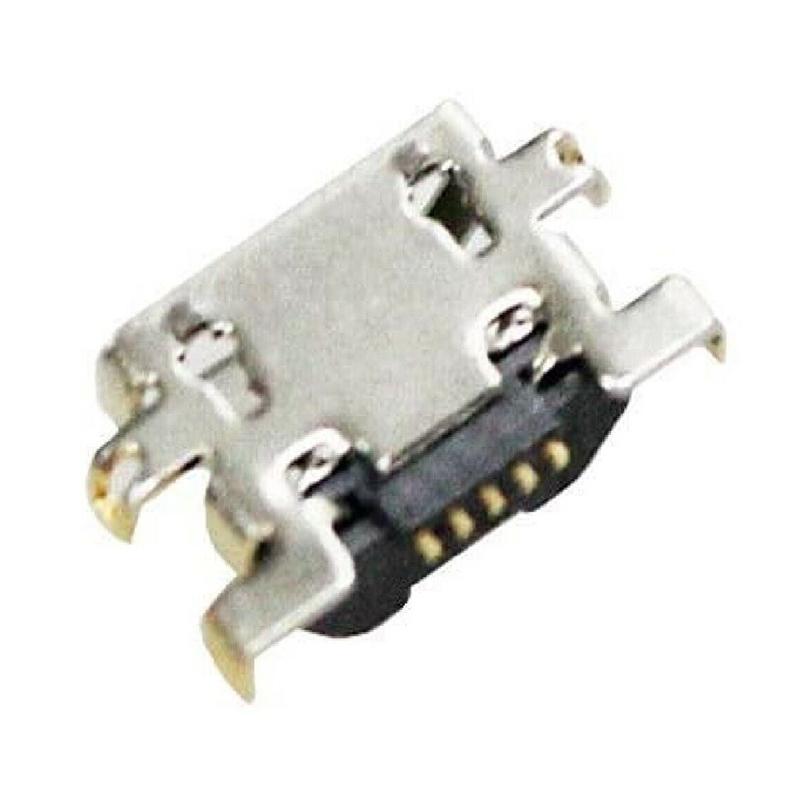

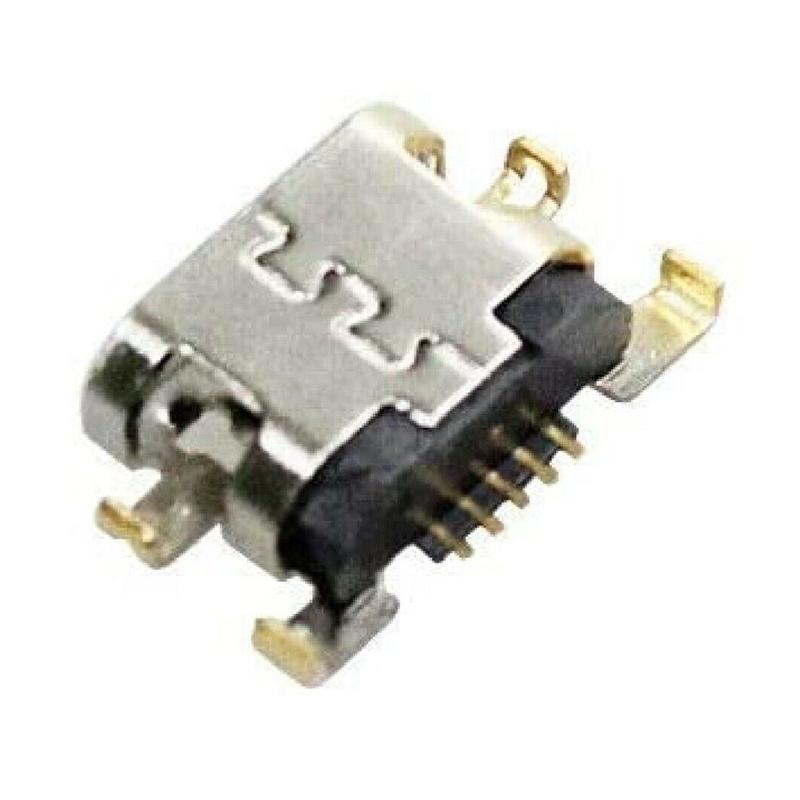

This is the bare connector. The old port has to be removed with hot air or a soldering iron and the new one soldered in place. It is a small, low-cost part, but the repair needs micro-soldering skill and equipment.
Compatibility
Specifications and compatibility
- Part
- Charging Port Connector
- Compatible with
- Amazon Fire HD 8
- Model numbers
- SX034Q
- Does not fit
- Other Fire HD 8 generations, Fire HD 10, Fire 7 or any other model
- Fixes
- A broken, loose or bent charging port on the SX034Q main board
- Does not fix
- Damaged main board pads, battery or screen faults
- Quality
- Brand new, OEM-quality charging port connector. Tested before dispatch.
- Brand
- Unbranded, compatible with Amazon Fire HD 8
- In the box
- 1 × charging port connector (bare port, no flex).
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charging port has come loose from the board
- The cable only charges at an angle
- Pins inside the port are bent or broken
- The tablet does not charge with any cable
How to check your model
Open Settings › Device Options › Device Model. It should show your Fire HD 8 model.
Check the model code SX034Q on the tablet or in Amazon's device details before ordering. Other Fire HD 8 generations use a different port.
Professional installation
How a technician fits this part
- Power the Amazon Fire HD 8 off completely.
- Release the back cover clips with a plastic opening tool, working slowly around the edge.
- Disconnect the battery before touching any other part.
- Remove the screws and lift out the main board.
- Remove the old port with hot air, clean the pads and solder the new connector in place.
- Refit any shields, screws and the back cover.
- Refit the board, reconnect the battery and test charging with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Fire HD 8?
It is made for the Kindle Fire HD 8 model SX034Q. Check your model code before ordering.
Does it fit the Fire HD 10?
No. The Fire HD 10 uses a different charging port. This connector is for the SX034Q Fire HD 8 only.
Do I need to solder it?
Yes. This is the bare port. It must be soldered onto the main board, which needs micro-soldering tools.
Is it made by Amazon?
No. It is a brand new, OEM-quality charging port connector made to fit the Amazon Fire HD 8, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The old port has to be desoldered and the new one soldered onto the main board, which needs hot air and micro-soldering skills.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
