Loudspeaker

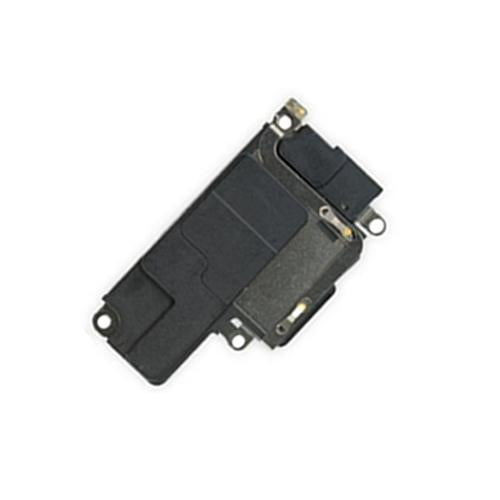

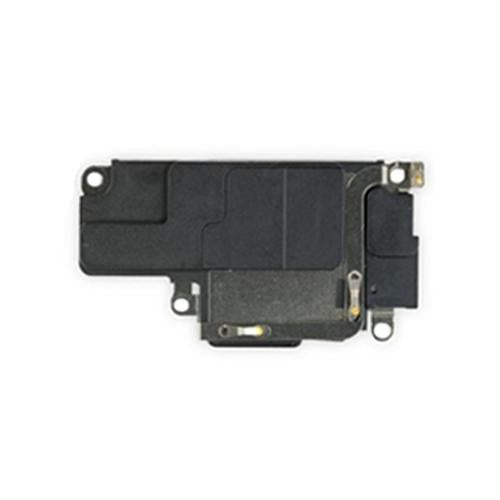

Apple iPhone 12 Pro Max Loudspeaker Replacement
- Fits
- Apple iPhone 12 Pro Max
- Fixes
- No ringer sound
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The iPhone 12 Pro Max plays ringtones, alerts, media and speakerphone calls through the loudspeaker at the bottom of the phone, working with the earpiece at the top for stereo sound. Water, dust or a blown speaker can make it crackle, sound tinny or go silent.
This part replaces the bottom loudspeaker. If you can hear callers through the earpiece but ringtones and speakerphone are silent or distorted, this is usually the part to change. If there is no sound anywhere, the fault may be on the main board.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- Apple iPhone 12 Pro Max
- Model numbers
- A2342 · A2410 · A2411 · A2412
- Does not fit
- iPhone 12 Pro, iPhone 13 Pro Max or any other model
- Fixes
- Silent, quiet, crackling or distorted ringtones, media and speakerphone
- Does not fix
- Earpiece faults, microphone faults or main board audio faults
- Quality
- Brand new, OEM-quality loudspeaker. Tested before dispatch.
- Brand
- Unbranded, compatible with Apple iPhone 12 Pro Max
- In the box
- 1 × bottom loudspeaker for iPhone 12 Pro Max.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- Ringtones and alerts are silent
- Speakerphone crackles or buzzes
- Music sounds tinny or very quiet
- The speaker grille is clear but the sound is still poor
How to check your model
Open Settings › General › About. The model name should read iPhone 12 Pro Max. Tap the model number to see the A-number (for example A2342).
The iPhone 12 Pro Max has a 6.7-inch screen, three rear cameras and a LiDAR scanner. The iPhone 12 Pro is smaller, with a 6.1-inch screen.
Professional installation
How a technician fits this part
- Power the iPhone 12 Pro Max off, remove the two pentalobe screws next to the charging port and warm the screen edges to soften the adhesive.
- Open the display carefully and disconnect the battery before anything else.
- Remove the screws holding the loudspeaker at the bottom of the phone.
- Lift out the old loudspeaker and fit the new one, keeping the gasket in place.
- Reconnect the display and battery, then test the repair before sealing.
- Apply new adhesive, close the phone and press evenly while it cures.
- Test ringtones, media and a speakerphone call.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my iPhone 12 Pro Max?
Yes, if Settings › General › About shows iPhone 12 Pro Max. It fits models A2342, A2410, A2411 and A2412. It does not fit the iPhone 12 Pro or iPhone 13 Pro Max.
Does it fit the iPhone 12 Pro?
No. The iPhone 12 Pro uses a different loudspeaker. This part is made only for the iPhone 12 Pro Max.
Is this the earpiece or the bottom speaker?
This is the bottom loudspeaker. It handles ringtones, media and speakerphone. The earpiece at the top of the iPhone 12 Pro Max is a separate part.
Is it made by Apple?
No. It is a brand new, OEM-quality loudspeaker made to fit the iPhone 12 Pro Max, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. Opening a iPhone 12 Pro Max needs heat, pentalobe and tri-point screwdrivers and new adhesive, and the battery must be disconnected safely.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
