LiDAR Scanner Antenna Flex Cable
Apple iPhone 13 Pro LiDAR Scanner Antenna Flex Cable Replacement
- Fits
- Apple iPhone 13 Pro
- Fixes
- Torn antenna flex
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

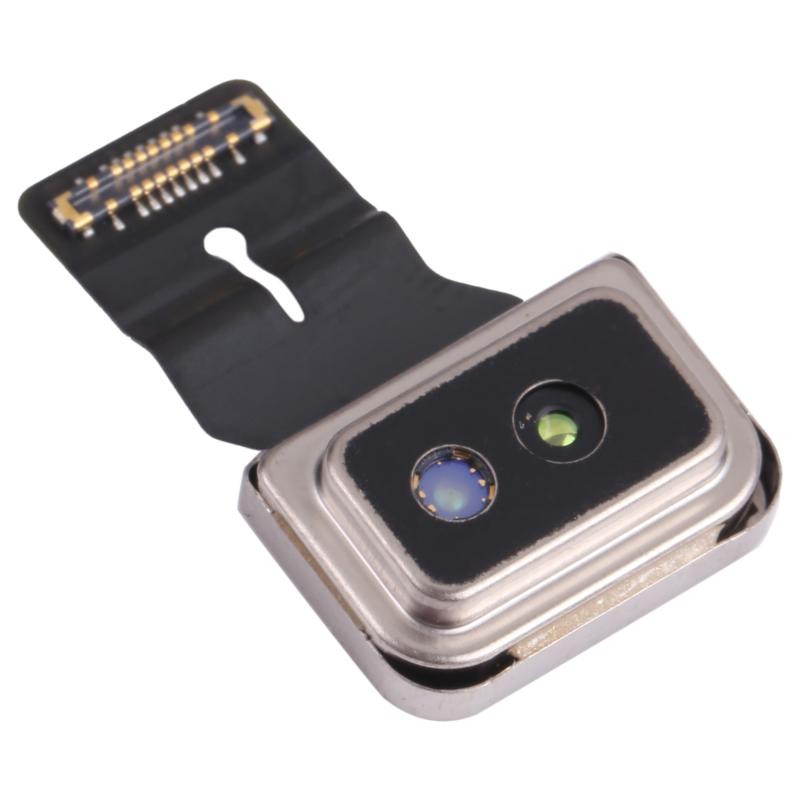

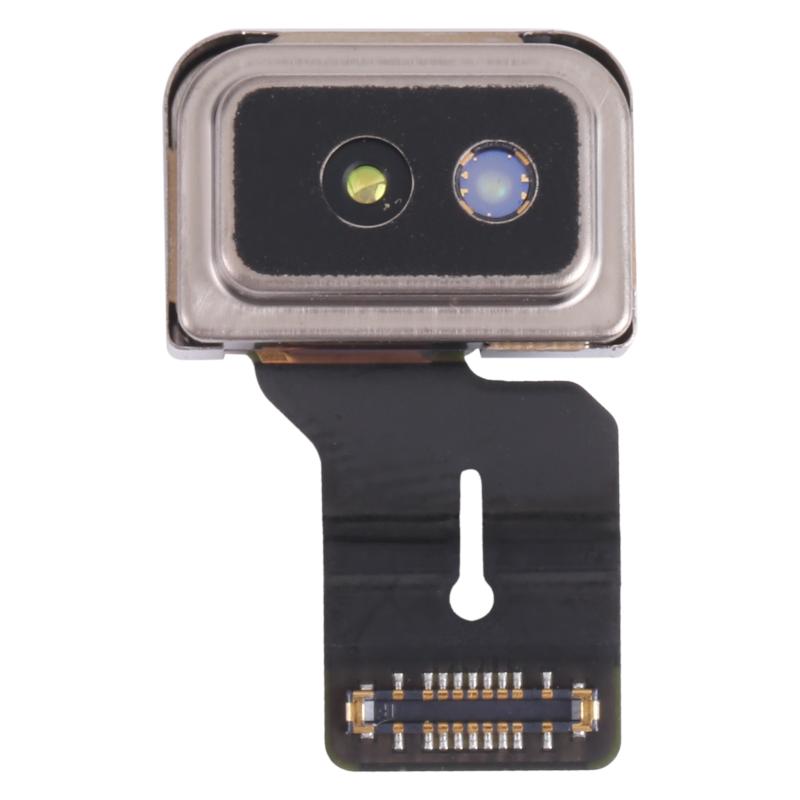

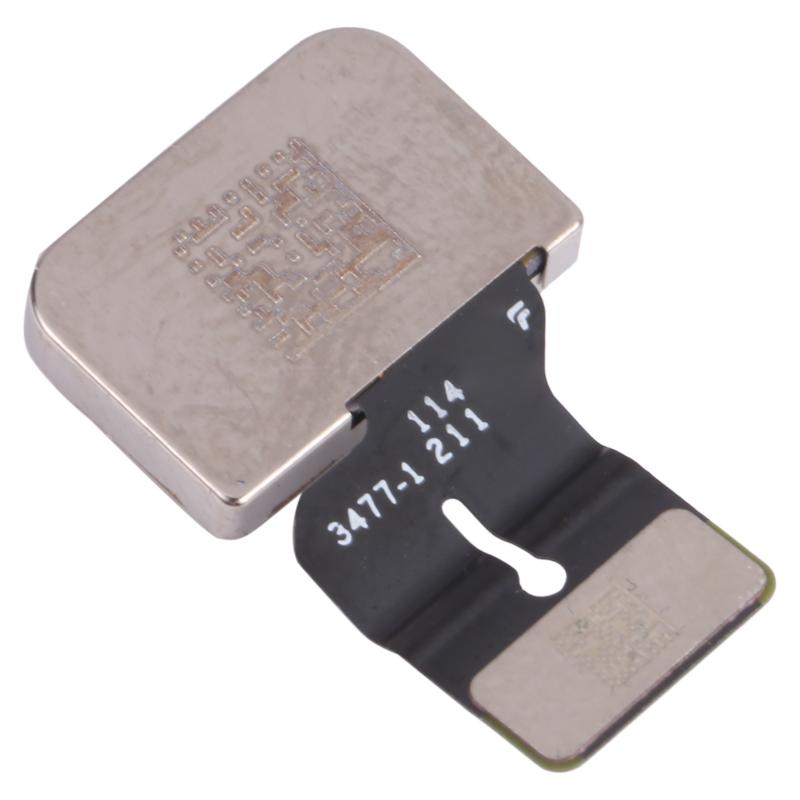

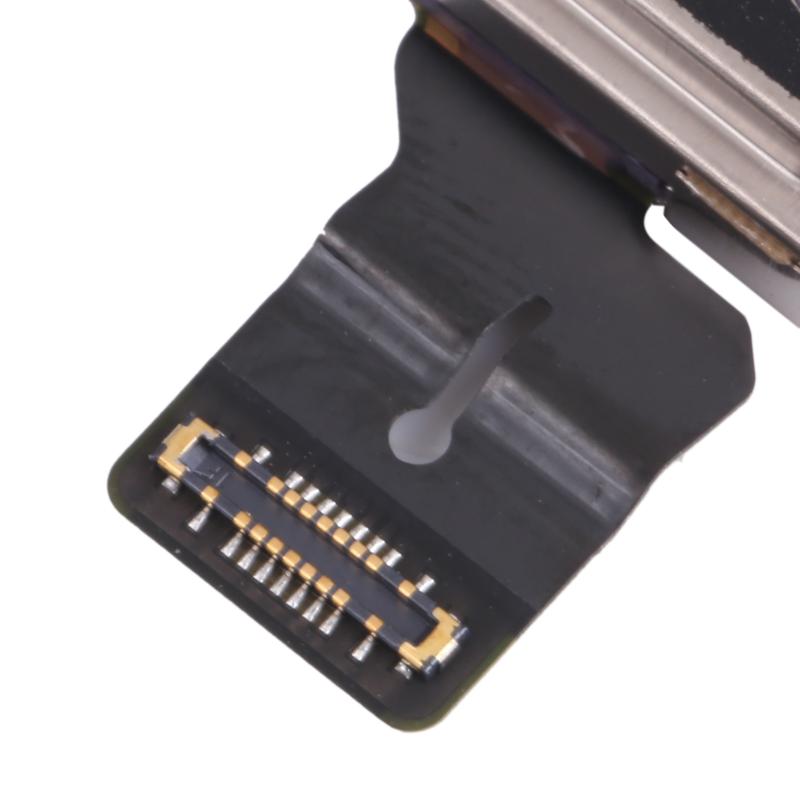

The iPhone 13 Pro has a LiDAR scanner beside its three rear cameras, and several thin antenna flex cables run around the inside of the housing. This part is listed by the supplier as the radar (LiDAR) scanner sensor antenna flex for the iPhone 13 Pro.
These flex cables are easy to tear during a rear camera, back glass or screen repair. Compare your old part with the photos before ordering, as the iPhone 13 Pro has several antenna flex cables of different shapes. Main board faults are not fixed by this part.
Compatibility
Specifications and compatibility
- Part
- LiDAR Scanner Antenna Flex Cable
- Compatible with
- Apple iPhone 13 Pro
- Model numbers
- A2638 · A2483 · A2636 · A2639 · A2640
- Does not fit
- iPhone 13 Pro Max, iPhone 13, iPhone 12 Pro or any other model
- Fixes
- A torn, pinched or corroded antenna flex in the LiDAR scanner area
- Does not fix
- A faulty LiDAR scanner or camera module, or main board faults
- Quality
- Brand new, OEM-quality lidar scanner antenna flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with Apple iPhone 13 Pro
- In the box
- 1 × lidar scanner antenna flex cable for iPhone 13 Pro.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The antenna flex was torn during a camera or back glass repair
- Signal problems started after the phone was opened
- The flex is visibly corroded after liquid damage
- The flex is creased or pinched under a bracket
How to check your model
Open Settings › General › About. The model name should read iPhone 13 Pro. Tap the model number to see the A-number (for example A2638).
The iPhone 13 Pro has a 6.1-inch screen and three rear cameras. The iPhone 13 Pro Max is larger, with a 6.7-inch screen, and the iPhone 13 has two rear cameras.
Professional installation
How a technician fits this part
- Power the iPhone 13 Pro off, remove the two pentalobe screws beside the charging port and warm the edges to soften the adhesive.
- Open the phone carefully and disconnect the battery before anything else.
- Remove the brackets in the rear camera area and unclip the old antenna flex.
- Fit the new flex, seat each connector firmly and refit the brackets and screws.
- Reconnect the battery, then test the repair before sealing.
- Apply new adhesive, close the phone and press evenly while it cures.
- Check signal, WiFi and the rear cameras before the final close-up.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my iPhone 13 Pro?
Yes, if Settings › General › About shows iPhone 13 Pro. It fits models A2638, A2483, A2636, A2639 and A2640. It does not fit the iPhone 13 Pro Max or iPhone 13.
Does it fit the iPhone 13 Pro Max?
No. The iPhone 13 Pro Max uses a different part. This one is made only for the iPhone 13 Pro.
Is this the LiDAR scanner itself?
No. It is the antenna flex cable listed for the LiDAR scanner sensor area. The LiDAR scanner module is a separate part.
Is it made by Apple?
No. It is a brand new, OEM-quality lidar scanner antenna flex cable made to fit the iPhone 13 Pro, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. Opening an iPhone needs heat, pentalobe and tri-point screwdrivers and new adhesive, and the battery must be disconnected safely.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
