Loudspeaker

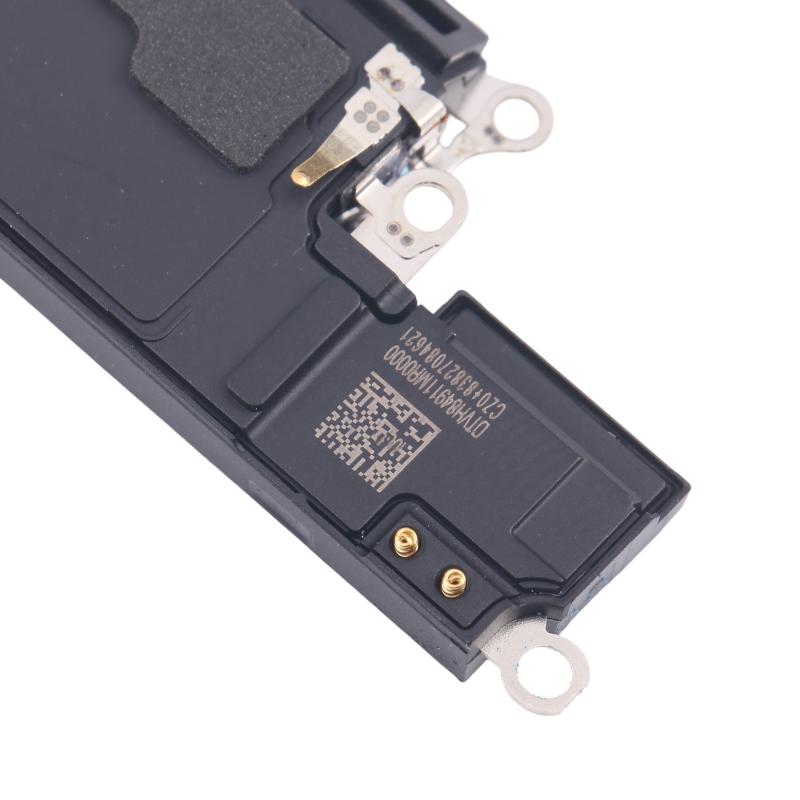

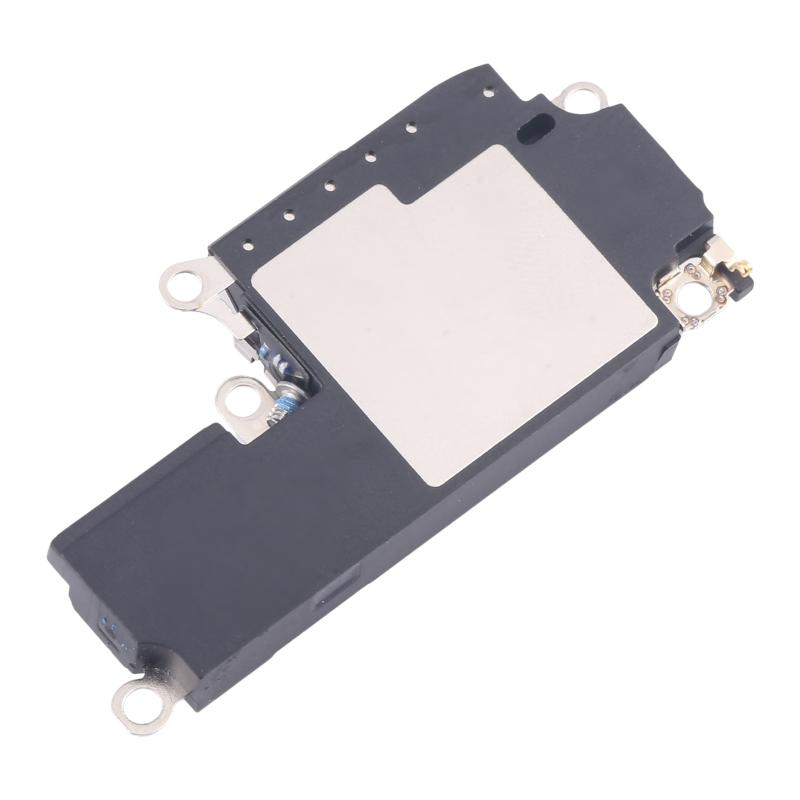

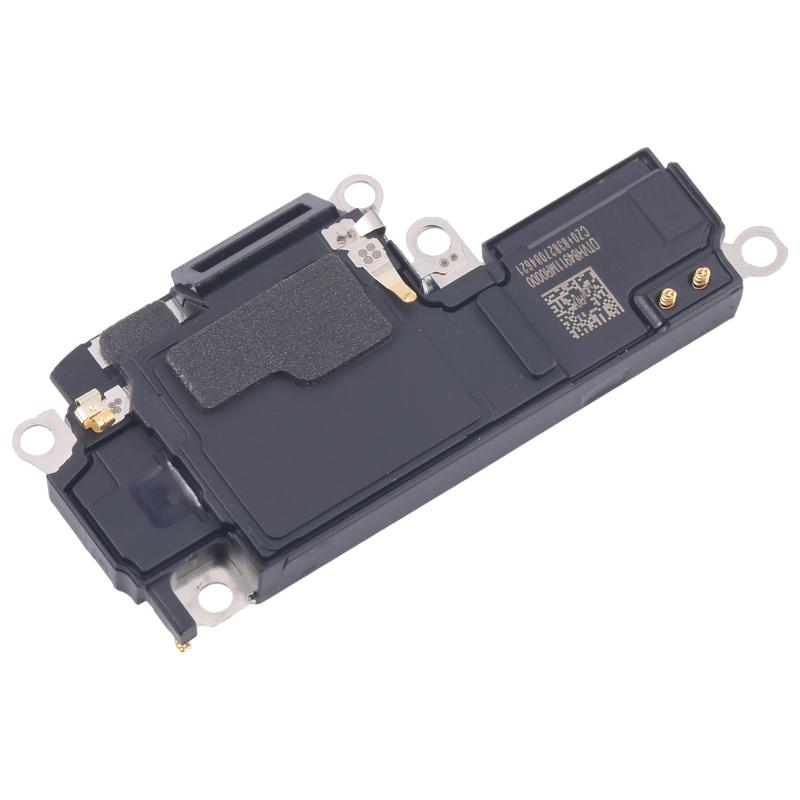

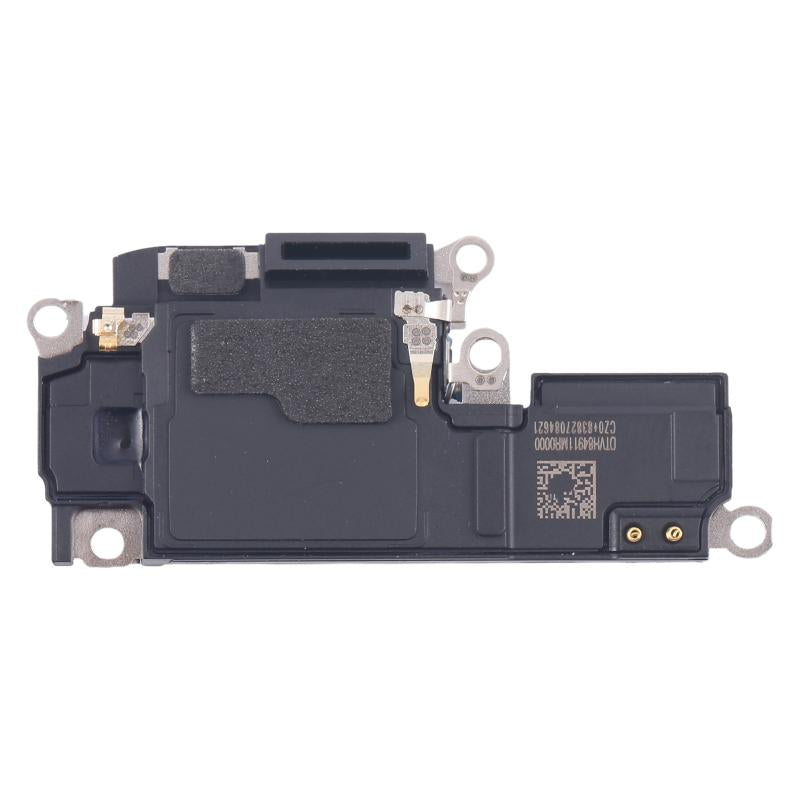

Apple iPhone 16 Pro Loudspeaker Replacement
- Fits
- Apple iPhone 16 Pro
- Fixes
- No ringer sound
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The loudspeaker sits at the bottom of the iPhone 16 Pro, next to the charging port. It plays ringtones, alarms, music and speakerphone calls. When it is damaged by a drop, water or dust in the grille, sound can crackle, buzz or stop altogether.
This is a replacement loudspeaker (ringer) module. It is not the earpiece at the top of the screen, which you hear during normal calls. Before ordering, check the speaker grille is clean and that the phone is not stuck in headphone or Bluetooth mode.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- Apple iPhone 16 Pro
- Model numbers
- A3083 · A3292 · A3293 · A3294
- Does not fit
- iPhone 16 Pro Max, iPhone 16, iPhone 15 Pro or any other model
- Fixes
- No ringtone, crackling or distorted speaker sound, or a silent speakerphone
- Does not fix
- Earpiece sound in normal calls, microphone faults or audio chip faults
- Quality
- Brand new, OEM-quality loudspeaker. Tested before dispatch.
- Brand
- Unbranded, compatible with Apple iPhone 16 Pro
- In the box
- 1 × loudspeaker for iPhone 16 Pro.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- No sound from ringtones or alarms
- Music and speakerphone crackle or buzz
- The speaker is much quieter than it used to be
- Sound stopped after the phone got wet
How to check your model
Open Settings › General › About. The model name should read iPhone 16 Pro. Tap the model number to see the A-number (for example A3083).
The iPhone 16 Pro has a 6.3-inch screen and three rear cameras. The iPhone 16 Pro Max is larger, with a 6.9-inch screen.
Professional installation
How a technician fits this part
- Power the iPhone 16 Pro off, remove the two pentalobe screws next to the charging port, then warm the screen edges to soften the adhesive.
- Open the display carefully and disconnect the battery before anything else.
- Remove the screws and bracket holding the loudspeaker at the bottom of the phone.
- Lift out the old speaker, fit the new one in the same position and refit its screws.
- Reconnect the battery and display, then play a ringtone and some music before sealing.
- Apply new adhesive, close the phone and press evenly while it cures.
- Check ringtone volume, speakerphone calls and media sound.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my iPhone 16 Pro?
Yes, if Settings › General › About shows iPhone 16 Pro. It fits models A3083, A3292, A3293, A3294. It does not fit the iPhone 16 Pro Max or iPhone 16.
Does it fit the iPhone 16 Pro Max?
No. The iPhone 16 Pro Max uses a different loudspeaker. This part is listed only for the iPhone 16 Pro.
Will this fix quiet sound during normal calls?
No. Normal calls use the earpiece at the top of the screen. This part is the bottom loudspeaker for ringtones, music and speakerphone.
Is it made by Apple?
No. It is a brand new, OEM-quality loudspeaker made to fit the iPhone 16 Pro, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. Opening an iPhone 16 Pro needs heat, pentalobe and tri-point screwdrivers and new adhesive, and the battery must be disconnected safely.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
