6.66-inch OLED Screen with Frame
Samsung Galaxy A16 4G 6.66-inch OLED Screen with Frame Replacement
- Fits
- Samsung Galaxy A16 4G
- Fixes
- Broken display
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The Galaxy A16 4G has an OLED display bonded to its cover glass and touch layer. If the glass cracks, touch fails, or the picture shows lines, green tint or black patches, the whole assembly needs replacing.

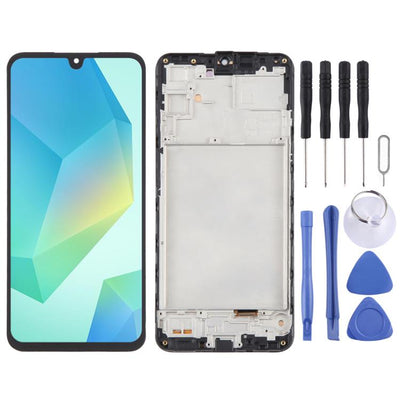

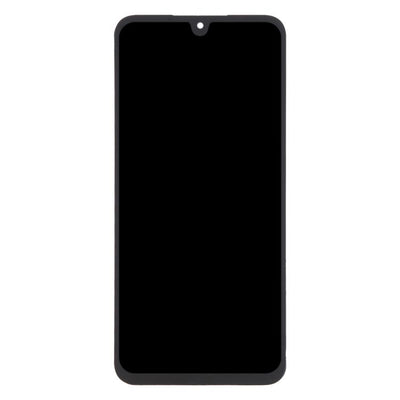

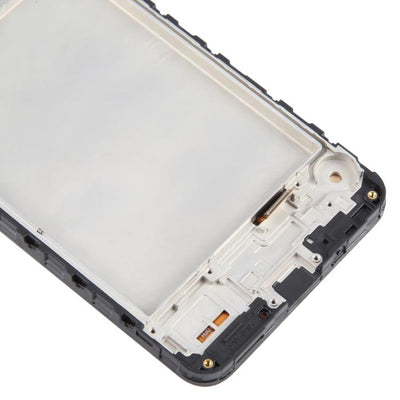

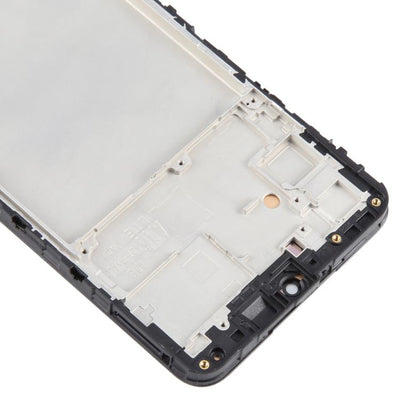

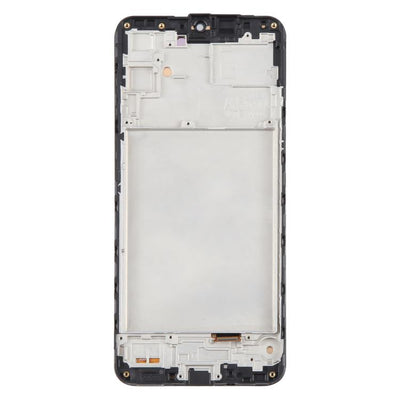

This 6.66-inch OLED screen comes pre-fitted to a new mid-frame for the SM-A165F. The technician moves the battery, board and small parts into the new frame. It is an OLED panel, the same display type the phone was sold with, and the fingerprint sensor in the side key is not affected.
Compatibility
Specifications and compatibility
- Part
- 6.66-inch OLED Screen with Frame
- Compatible with
- Samsung Galaxy A16 4G
- Model numbers
- SM-A165F
- Does not fit
- Galaxy A16 5G, Galaxy A15 or any other model
- Fixes
- Cracked glass, a black or flickering display, lines, dark patches or dead touch areas
- Does not fix
- Charging, battery, camera, button or motherboard faults
- Quality
- Brand new, OEM-quality OLED screen and digitiser assembly with mid-frame. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy A16 4G
- In the box
- 1 × OLED screen assembly fitted to a mid-frame. Check the photos for any tools or adhesive included.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The glass is cracked or shattered
- The screen stays black while the phone rings or vibrates
- Lines, flicker, dark patches or discoloured areas appear
- Touch does not respond in some areas, or registers ghost touches
How to check your model
Open Settings › About phone. The model name should read Galaxy A16. The model number (it starts SM-) should be SM-A165F.
The Galaxy A16 4G and Galaxy A16 5G look very similar. Check the model number: this part is for the SM-A165F.
Professional installation
How a technician fits this part
- Power the phone off, warm the back cover gently and lift it off.
- Remove the screws and board cover, then disconnect the battery first.
- Move the battery, main board, cameras, speaker, charging board and small parts into the new frame.
- Connect the new screen and test display, touch and brightness before closing.
- Refit the covers and screws, then fit the back cover with new adhesive.
- Run a final check: display, touch, calls, speakers, cameras, buttons and charging.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy A16?
Yes, if Settings › About phone shows Galaxy A16 with model number SM-A165F. It does not fit the Galaxy A16 5G or Galaxy A15.

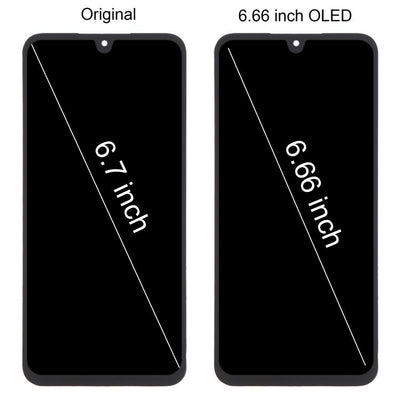

What is the difference between the 6.66-inch and 6.46-inch versions?
This listing is the 6.66-inch OLED panel. We also sell a 6.46-inch version for the same phone. Both are fitted to a mid-frame for the SM-A165F. Check the photos and choose the size you want before ordering, and contact us if you are unsure.
Does it fit the Galaxy A16 5G?
No. The Galaxy A16 5G (SM-A166B) uses a different frame. This part is for the Galaxy A16 4G SM-A165F only.
Is it made by Samsung?
No. It is a brand new, OEM-quality OLED screen and digitiser assembly with mid-frame made to fit the Samsung Galaxy A16 4G, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. Opening the Galaxy A16 needs heat, the right tools and new adhesive, and the battery must be disconnected safely.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders from £5. Returns are accepted within 30 days from receipt.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
