Charging Port Board
Google Pixel 3 XL Charging Port Board Replacement
- Fits
- Google Pixel 3 XL
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the Google Pixel 3 XL the USB-C charging port sits at the bottom of the phone and connects to the main board. Daily plugging in, pocket lint and drops wear the port out, and the phone stops charging reliably.

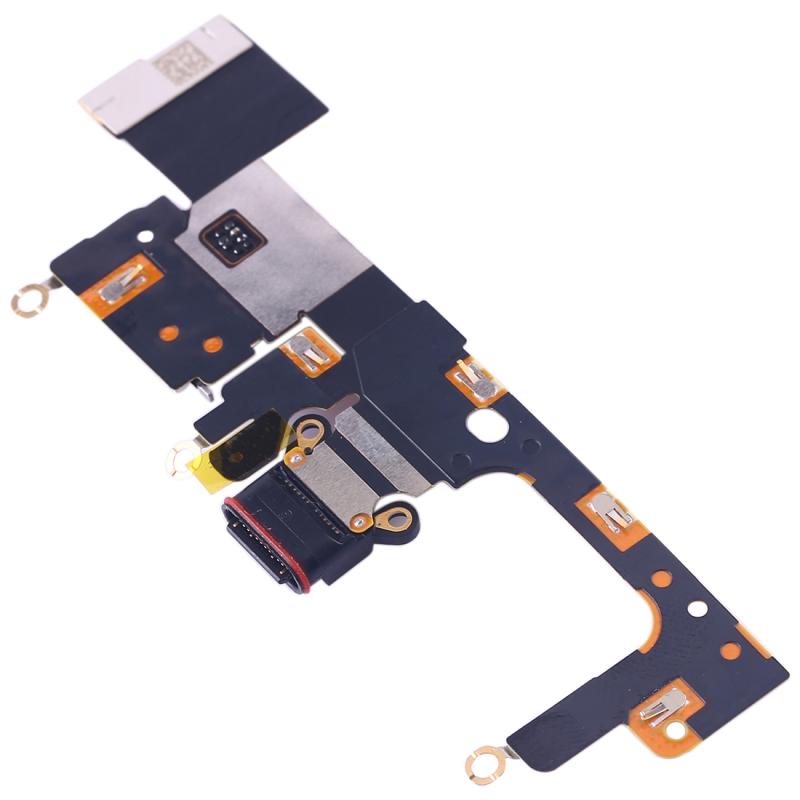

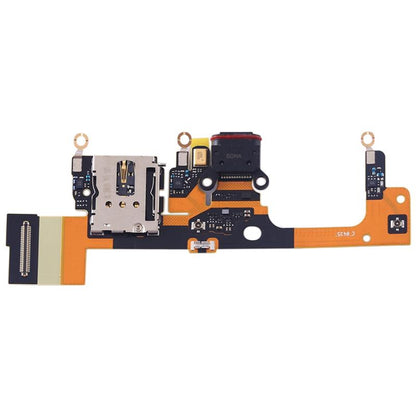

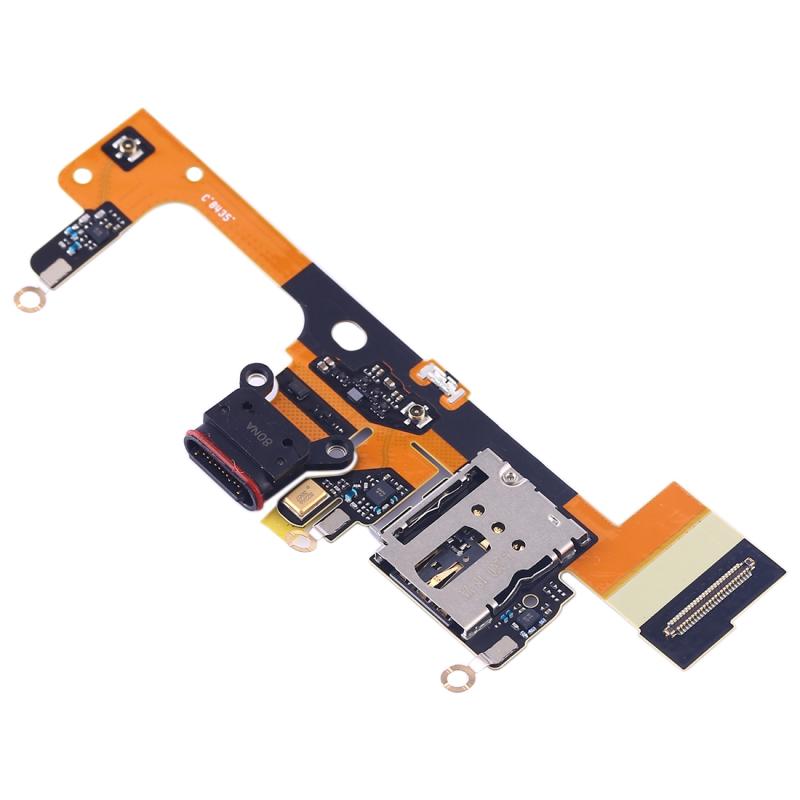

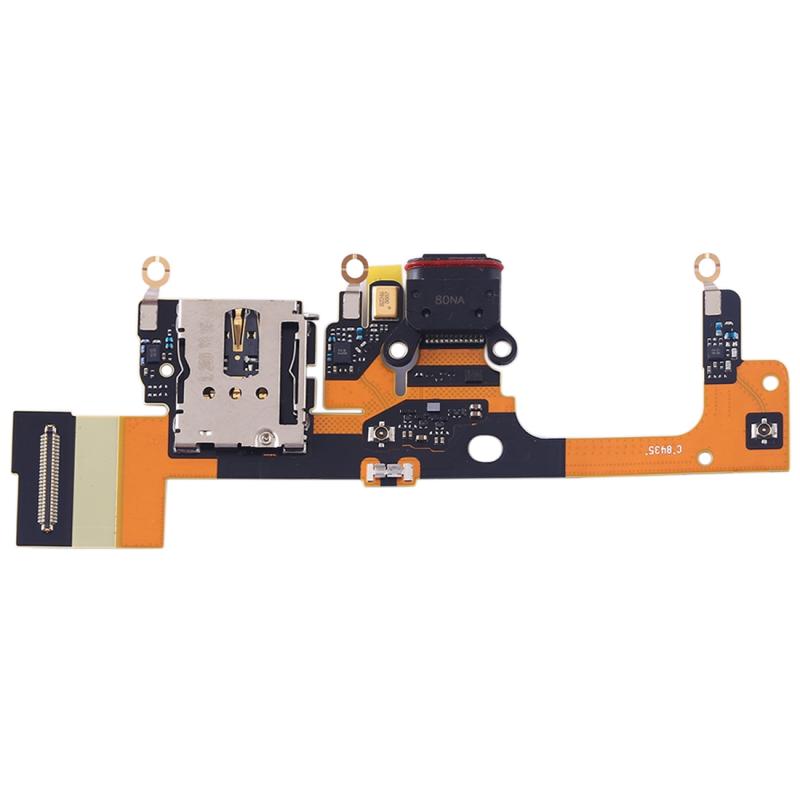

This part comes with the USB-C port already fitted to the board, so no soldering is needed. The whole part is swapped as one unit. If the phone still does not charge with a new port and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Google Pixel 3 XL
- Model numbers
- G013C · G013D
- Does not fit
- Pixel 3 or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Google Pixel 3 XL
- In the box
- 1 × charging port board for Google Pixel 3 XL.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The USB-C cable feels loose or falls out
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About phone. The device name should read Pixel 3 XL, not Pixel 3. The model code (G013C or G013D) is shown in Settings › About phone › Regulatory labels.
The Pixel 3 XL has a 6.3-inch screen with a notch at the top. The smaller Pixel 3 has a 5.5-inch screen and no notch.
Professional installation
How a technician fits this part
- Power the Pixel 3 XL off and remove the SIM tray.
- Warm the back glass edges and open the back carefully with a thin opening tool.
- Disconnect the battery before touching any other part.
- Unplug and unscrew the old charging port board.
- Fit the new board, reconnect it and secure the screws.
- Reconnect the battery and test charging with a known good cable before closing.
- Reseal the back glass with new adhesive and press evenly while it cures.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Pixel 3 XL?
Yes, if Settings › About phone shows Pixel 3 XL. It fits models G013C and G013D. It does not fit the Pixel 3.
Does it fit the Pixel 3?
No. The Pixel 3 is a different phone and needs its own charging port. This part is for the Pixel 3 XL only.
Do I need to solder anything?
No. The USB-C port is already fitted to the board. It connects with a connector and screws.
Is it made by Google?
No. It is a brand new, OEM-quality charging port board made to fit the Google Pixel 3 XL, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Pixel 3 XL opens from the glass back, which needs heat, the right tools and new adhesive, and the battery must be disconnected safely.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
