USB-C Charging Port Connector
Google Pixel 8 USB-C Charging Port Connector Replacement
- Fits
- Google Pixel 8
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The USB-C charging port on the Google Pixel 8 wears with daily use. Pocket lint, bent pins and drops can make the cable loose, charging slow or intermittent, or stop the phone from being seen by a computer.

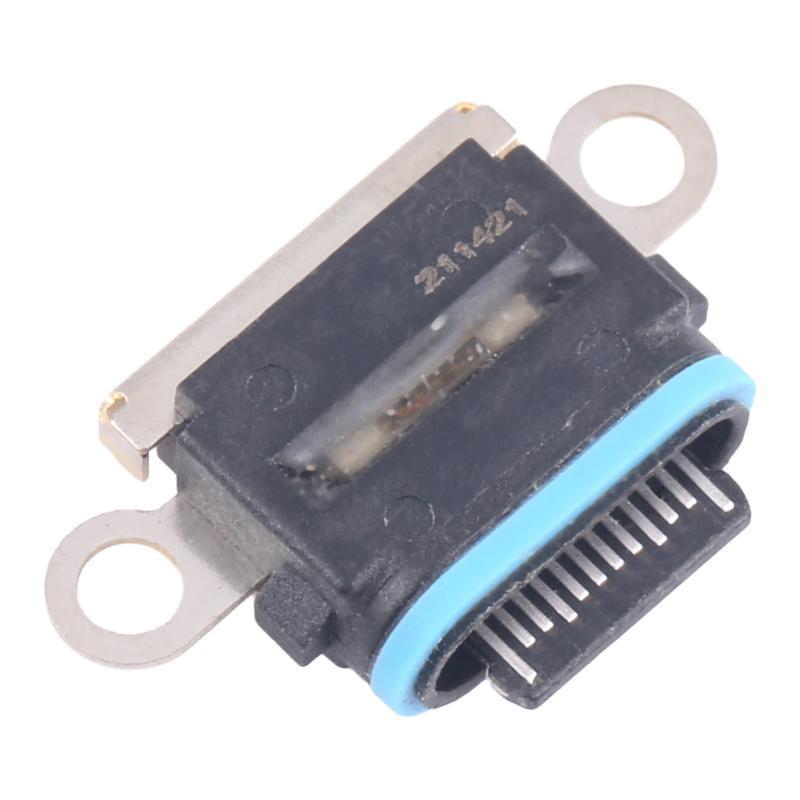

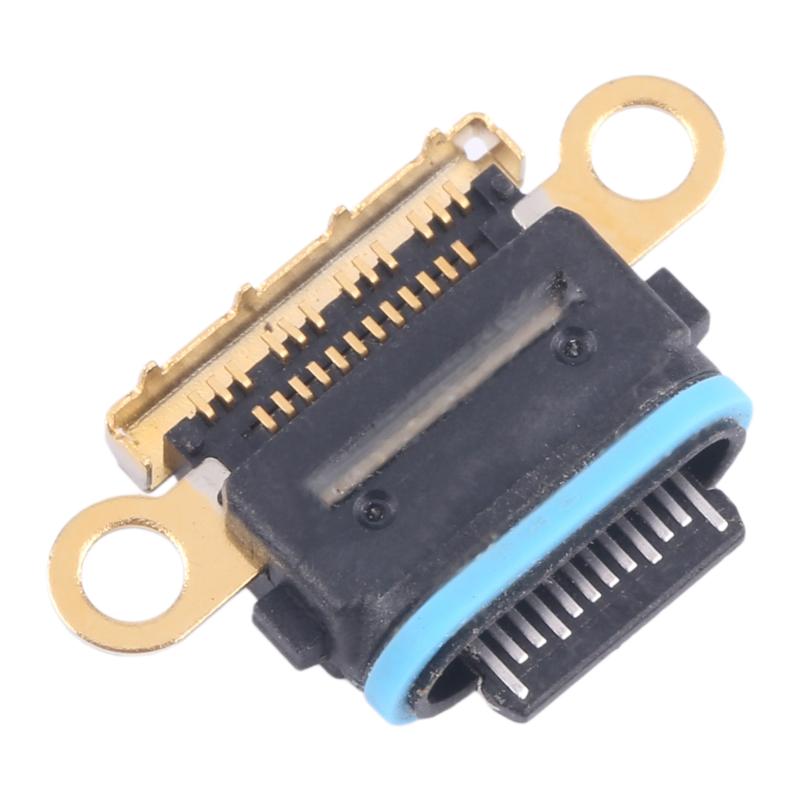

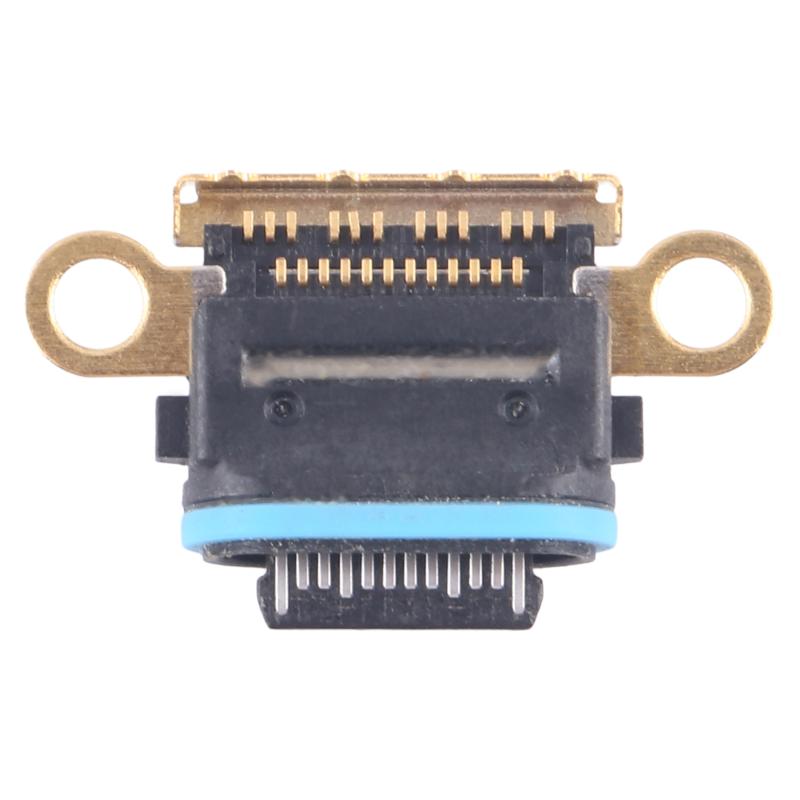

This is a replacement USB-C charging port connector for the Pixel 8. It is the socket itself, supplied on its own, and has to be soldered in. Before ordering, clean the port gently with a wooden or plastic pick and try a known good cable, as lint is a very common cause of charging faults.
Compatibility
Specifications and compatibility
- Part
- USB-C Charging Port Connector
- Compatible with
- Google Pixel 8
- Model numbers
- GKWS6 · GPJ41 · G9BQD
- Does not fit
- Pixel 8 Pro, Pixel 8a or any other model
- Fixes
- A worn, loose or damaged USB-C socket that stops charging or data
- Does not fix
- Battery, wireless charging, screen or main board faults
- Quality
- Brand new, OEM-quality USB-C charging port connector. Tested before dispatch.
- Brand
- Unbranded, compatible with Google Pixel 8
- In the box
- 1 × USB-C charging port connector for Google Pixel 8.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The cable only charges at a certain angle, or not at all
- The cable feels loose or falls out
- Charging keeps starting and stopping
- A computer does not see the phone over USB
How to check your model
Open Settings › About phone. The device name should read Pixel 8, not Pixel 8 Pro or Pixel 8a. The model code (GKWS6, GPJ41, G9BQD) is shown in Settings › About phone › Regulatory labels and on the box.
The Pixel 8 has a 6.2-inch screen and two rear cameras. The Pixel 8 Pro is larger and has three rear cameras.
Professional installation
How a technician fits this part
- Power the Pixel 8 off and remove the SIM tray.
- Warm the screen edges and open the display carefully with a thin pick.
- Disconnect the battery before anything else.
- Remove the parts needed to reach the USB-C port and desolder the old connector.
- Solder the new connector in place and check every joint under magnification.
- Reassemble, reconnect the battery and test wired charging and USB data.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Pixel 8?
Yes, if Settings › About phone shows Pixel 8. It fits models GKWS6, GPJ41, G9BQD. It does not fit the Pixel 8 Pro or Pixel 8a.
Does it fit the Pixel 8 Pro?
No. The Pixel 8 Pro is a different phone with a different part. This USB-C charging port connector is made for the Pixel 8 only.
Does this need soldering?
Yes. This is the bare USB-C connector, not a complete board. The old connector must be removed and the new one soldered in place, so it should be fitted by a technician with micro-soldering equipment.
Is it made by Google?
No. It is a brand new, OEM-quality USB-C charging port connector made to fit the Google Pixel 8, and every part is tested before dispatch.
Should I fit it myself?
No. This connector must be soldered, so we recommend professional installation by a technician with micro-soldering equipment. The Pixel 8 also needs heat and new adhesive to open and close.
