Charging Port Board
Honor 20S Charging Port Board Replacement
- Fits
- Honor 20S
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

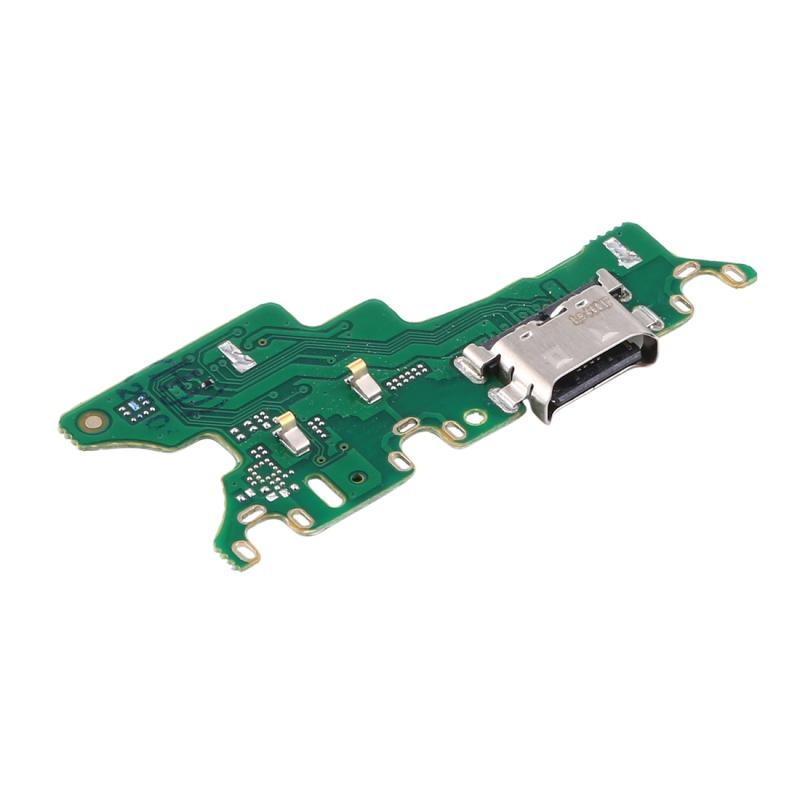

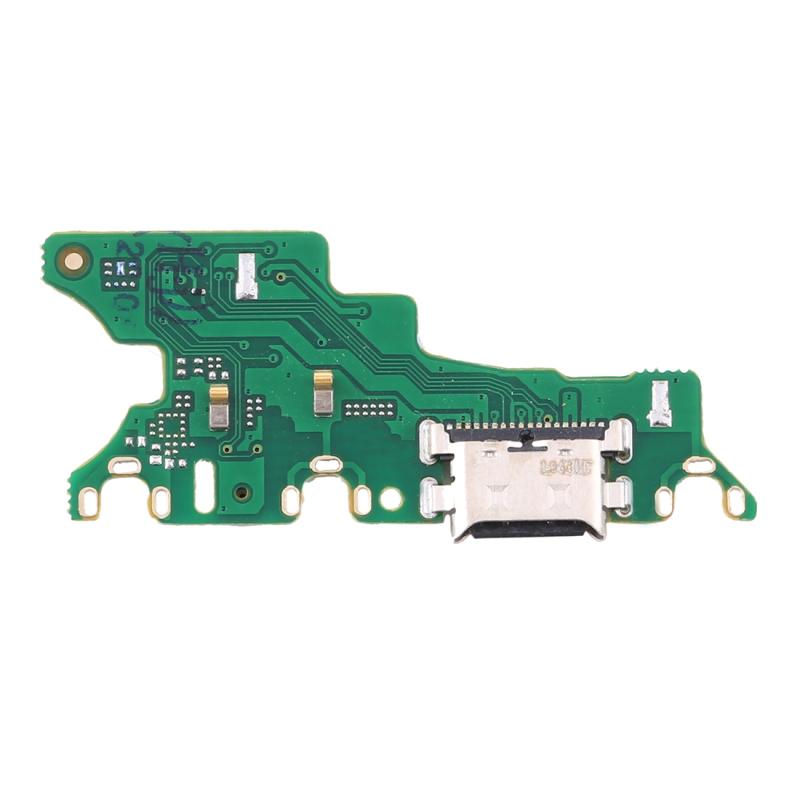

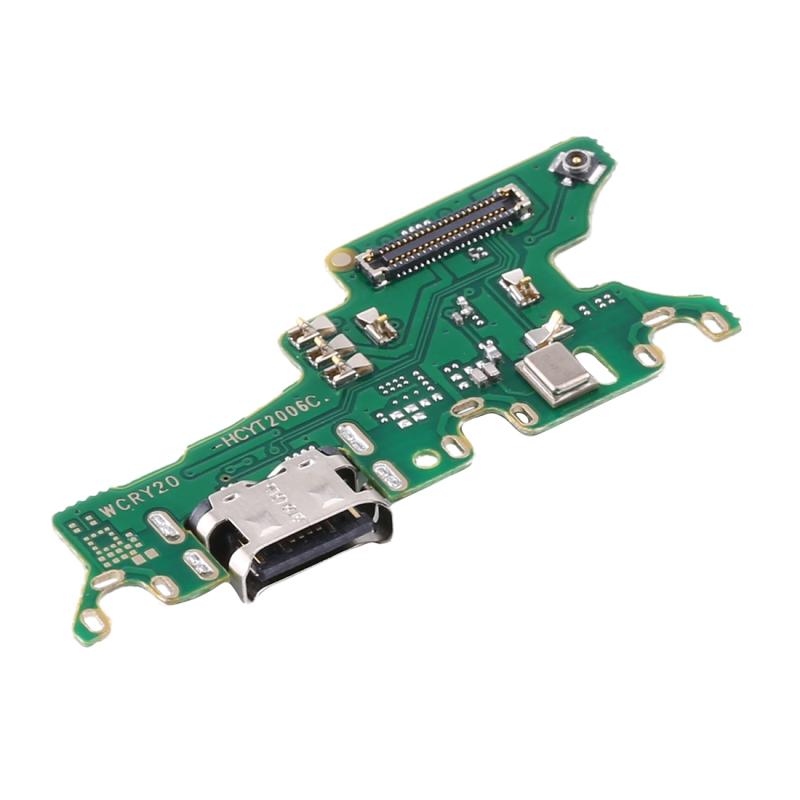

In the Honor 20S the charging socket sits on a small separate board at the bottom of the phone, rather than on the main board. That makes it the part to replace when the socket is worn, loose or damaged.
A worn charging port often shows up as a cable that falls out, charging that stops when the cable moves, or a computer that no longer detects the phone. Before ordering, clean out the socket and try another cable and charger, as lint and a bad cable cause many of the same signs.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Honor 20S
- Model numbers
- Check Settings › System › About phone
- Does not fit
- Honor 20, Honor 20 Pro, Honor 20 Lite or any other model
- Fixes
- A phone that will not charge, charges slowly, or only charges at an angle; a loose charging socket
- Does not fix
- A worn-out battery, screen, camera or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Honor 20S
- In the box
- 1 × charging port board
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone will not charge with a known good cable
- Charging stops when the cable moves
- The cable feels loose or falls out
- A computer does not detect the phone
How to check your model
Open Settings › System › About phone. The model name should read Honor 20S, not Honor 20. The model code is also shown there and on the phone's box.
The Honor 20S is a separate model from the Honor 20 and Honor 20 Pro. Check the exact name before ordering.
Professional installation
How a technician fits this part
- Power the Honor 20S off and remove the SIM tray.
- Remove the back cover carefully, using gentle heat if it is glued.
- Disconnect the battery connector before anything else.
- Remove the screws and covers, then unclip and lift out the old charging port board.
- Fit the new board, reconnect every flex cable and test charging before closing.
- Refit the back cover with new adhesive and check charging, calls and the loudspeaker.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Honor 20S?
Yes, if Settings › System › About phone shows Honor 20S. It is made for the Honor 20S only.
Does it fit the Honor 20?
No. The Honor 20 is a different model and needs its own charging port board.
Should I try anything before replacing the port?
Yes. Clean out the socket gently with a wooden or plastic pick and test with another cable and charger. If it still will not charge, the port board is the likely cause.
Is it made by Honor?
No. It is a brand new, OEM-quality charging port board made to fit the Honor 20S, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. Opening the Honor 20S needs heat, the right tools and new adhesive, and the battery must be disconnected safely.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ. Returns are accepted within 30 days from receipt.
