Charging Port Board
Honor 5X Charging Port Board Replacement
- Fits
- Honor 5X
- Fixes
- Charging problems
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview

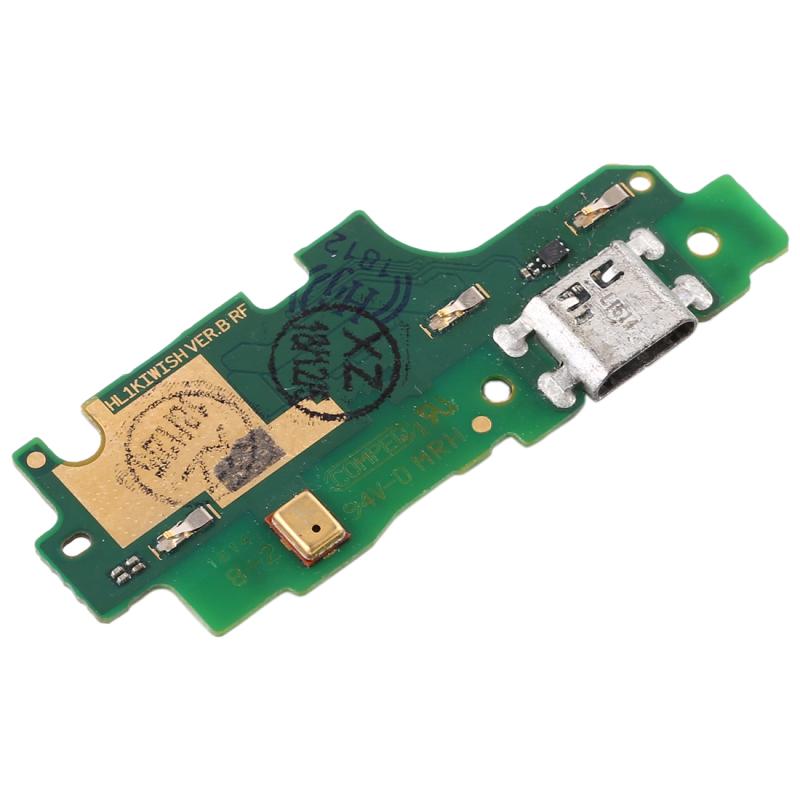

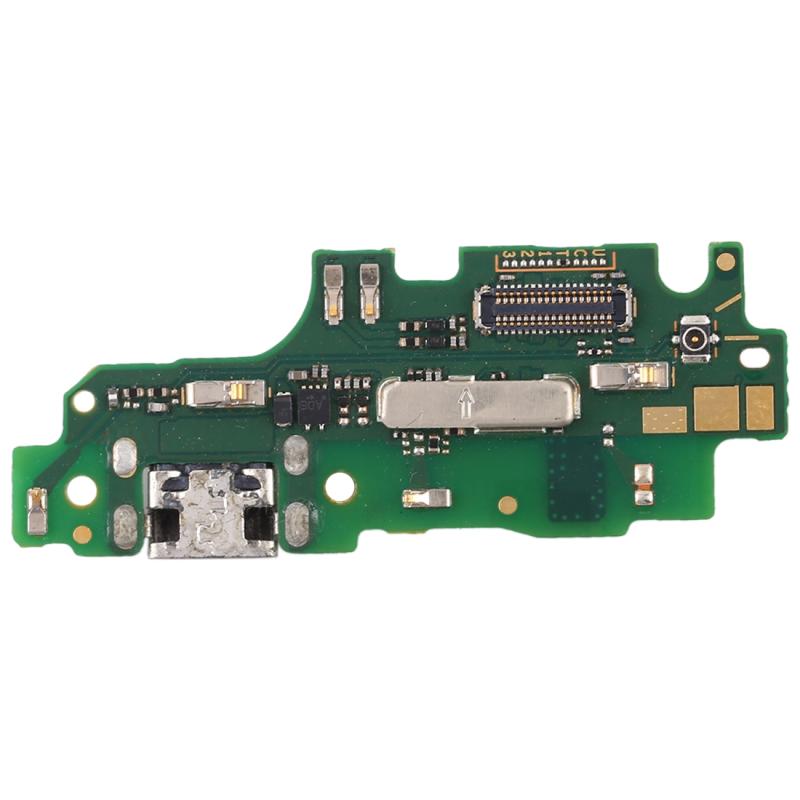

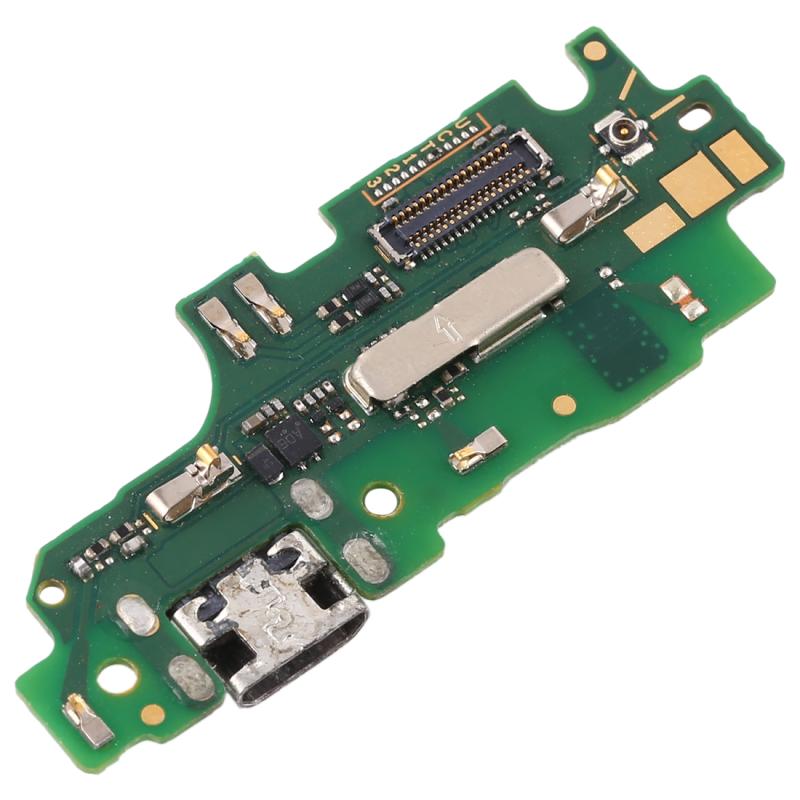

What this part is
The Honor 5X charges through a micro-USB port on a small board at the bottom of the phone. Over time, the port wears out, bends or fills with dust and damp. The cable then feels loose, charging stops and starts, or the phone does not charge at all.
This part replaces the whole charging port board. Before ordering, try a different cable and charger, and clean the port gently with a wooden toothpick. If charging still fails, the board is the most likely cause.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Honor 5X
- Model numbers
- Check Settings › About phone
- Does not fit
- Honor 5C, Honor 6X or Honor 7 or any other model
- Fixes
- Not charging, slow or on-off charging, a loose cable, no computer connection
- Does not fix
- Battery, screen, software or motherboard faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Honor 5X
- In the box
- 1 × charging port board. Check the photos for exactly what is included.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone does not charge, or only charges at an angle
- The cable feels loose or falls out
- Charging is very slow or keeps stopping
- The phone is not seen by a computer over USB
How to check your model
Open Settings › About phone. The model name should read Honor 5X, not Honor 5C, Honor 6X or Honor 7. The full model code is also shown there and on the phone box.
The Honor 5X was also sold as the Huawei GR5 in some markets. Older units may list the maker as Huawei.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Open the Honor 5X with the correct method for this model, using gentle heat and a thin opening tool.
- Disconnect the battery before touching any other part.
- Disconnect the flex cables from the old charging board, remove its screws and lift it out.
- Fit the new board, reconnect every flex cable and screw, then reconnect the battery.
- Test charging, the USB data connection and the microphone before sealing the phone.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Honor 5X?
Yes, if Settings › About phone shows Honor 5X. It is made for this model only and does not fit the Honor 5C, Honor 6X or Honor 7.
Does it fit the Honor 6X?
No. The Honor 6X uses a different part. Check the model name in Settings › About phone before ordering.
Is this a micro-USB port?
Yes. The Honor 5X charges through micro-USB, and this board has the micro-USB connector already fitted.
Is it made by Honor?
No. It is a brand new, OEM-quality charging port board made to fit the Honor 5X, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. Opening the Honor 5X needs heat, the right tools and new adhesive, and the battery must be disconnected safely.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
