Charging Port Board
Honor 9X Lite Charging Port Board Replacement
- Fits
- Honor 9X Lite
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

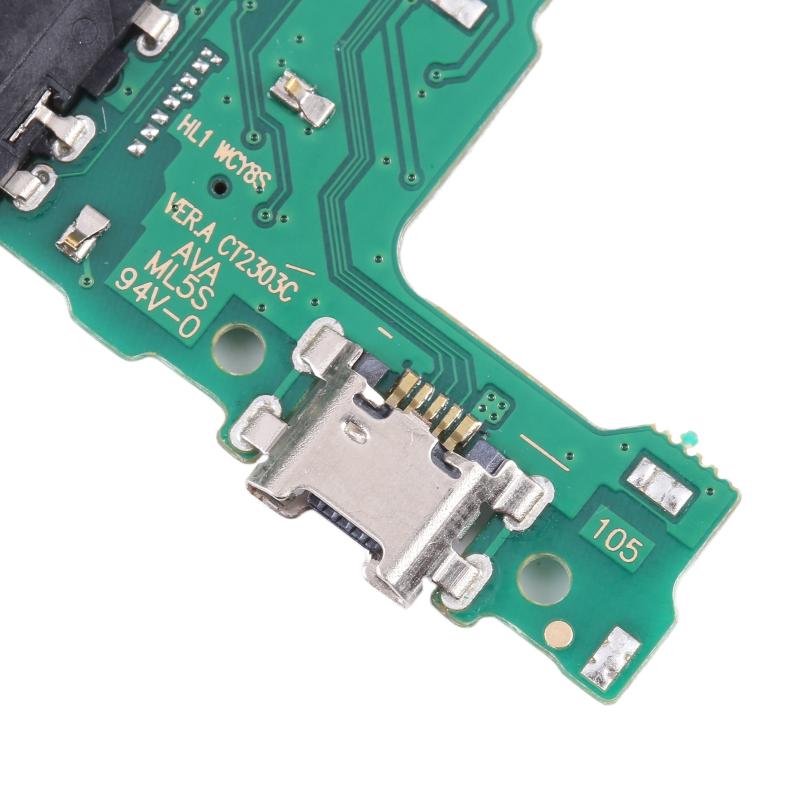

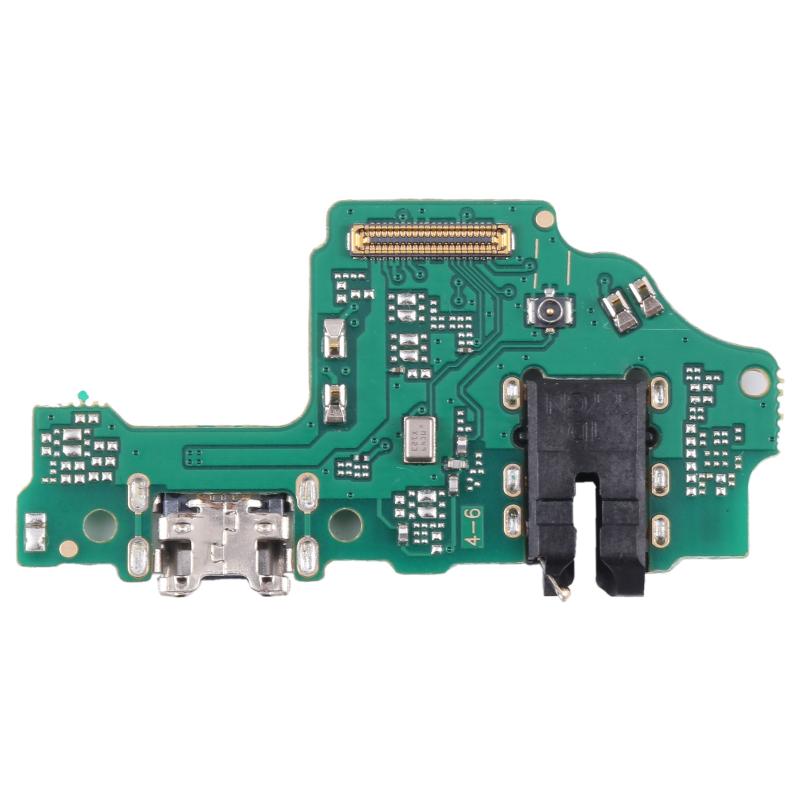

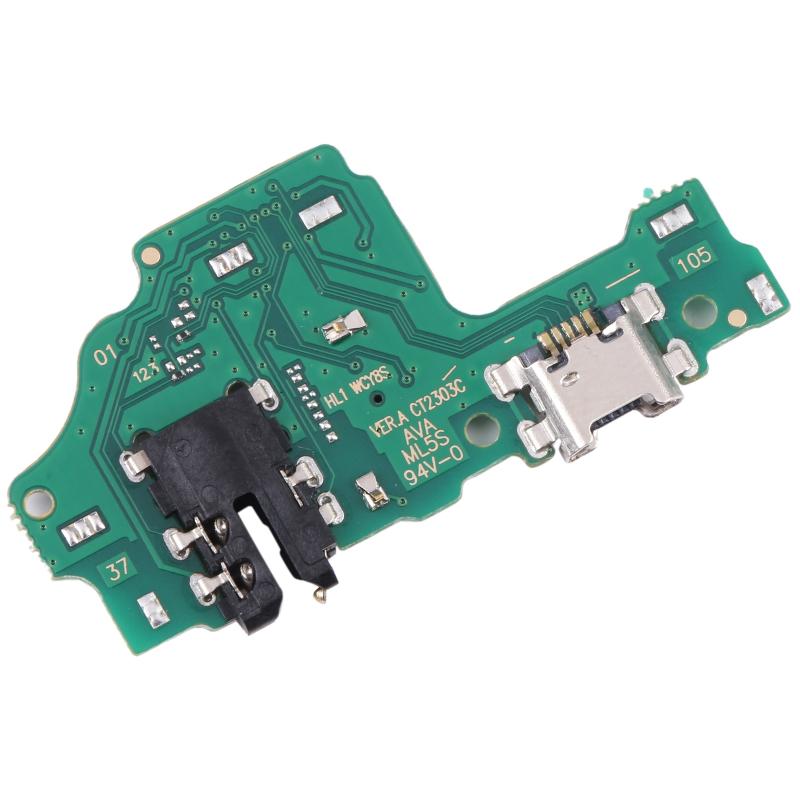

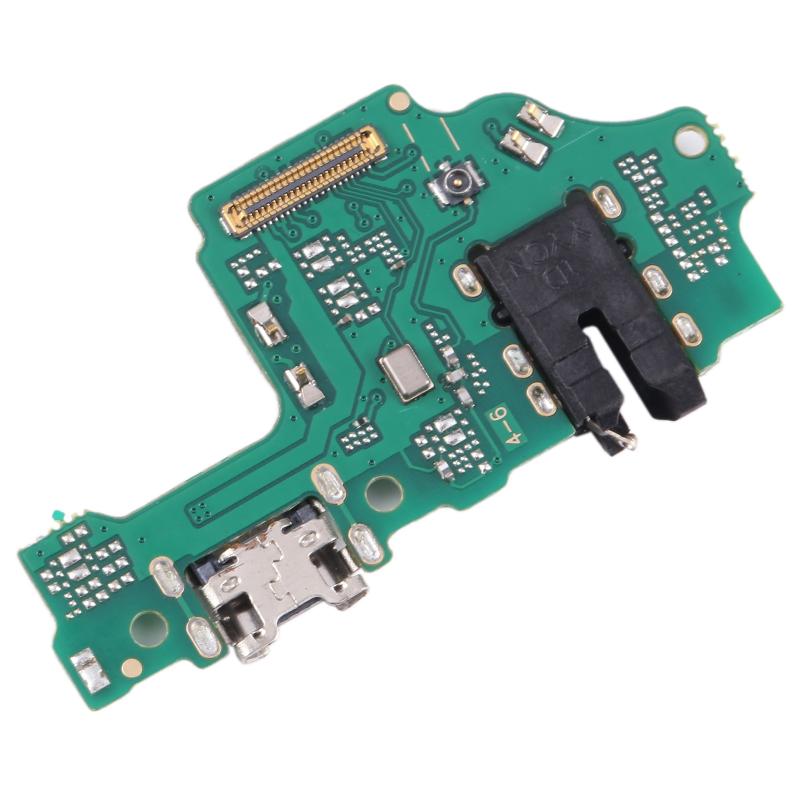

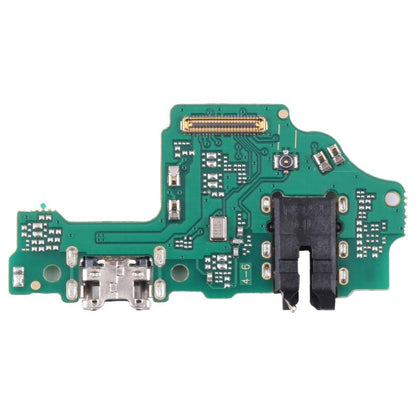

On the Honor 9X Lite the charging socket sits on a small board at the bottom of the phone, joined to the main board by a flex cable. Worn contacts, bent pins or liquid damage can stop charging, slow it down or break the data connection to a computer.
It is a complete charging port board, not a loose socket, so no soldering is needed. Before you order, try a different cable and plug and clean out any fluff from the port with a plastic tool. If charging is still faulty, the board is the usual fix.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Honor 9X Lite
- Model numbers
- Check Settings › About phone
- Does not fit
- Honor 9X, Honor 9X Pro, Honor 9 Lite or any other model
- Fixes
- Not charging, loose or intermittent charging, and no USB data connection
- Does not fix
- A worn-out battery, a faulty charger, or main board charging faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Honor 9X Lite
- In the box
- 1 × charging port board. Check the photos for any tools or adhesive included.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone does not charge, or charges only when the cable is held at an angle
- The cable feels loose and falls out easily
- Charging stops and starts, or is much slower than it used to be
- A computer does not detect the phone over USB
How to check your model
Open Settings › About phone and check the model name reads Honor 9X Lite, not Honor 9X. The model code is also shown there and on the box. Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Power the phone off and warm the back cover to soften the adhesive.
- Lift the back cover carefully and remove the covers over the lower board.
- Disconnect the battery first, then the flex cables on the charging board.
- Remove the screws, lift out the old board and fit the new one in the same position.
- Reconnect the flex cables and battery, then test charging and USB data before closing.
- Fit new adhesive, close the back cover and press evenly.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Honor 9X Lite?
Yes, if Settings › About phone shows Honor 9X Lite. It does not fit the Honor 9X, Honor 9X Pro, Honor 9 Lite.
Does it fit the Honor 9X?
No. The Honor 9X is a different phone and uses different parts. Check the model name in Settings › About phone before you order.
Will it fix slow charging?
If the slow charging is caused by a worn or dirty socket, yes. If the battery is worn out, or the charger or cable is faulty, a new board will not help. Test with a known good cable and plug first.
Is it made by Honor or Huawei?
No. It is a brand new, OEM-quality charging port board made to fit the Honor 9X Lite, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Honor 9X Lite must be opened, the battery disconnected and the back cover sealed again with new adhesive.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
