Charging Port Board
Honor X8 5G Charging Port Board Replacement
- Fits
- Honor X8 5G
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

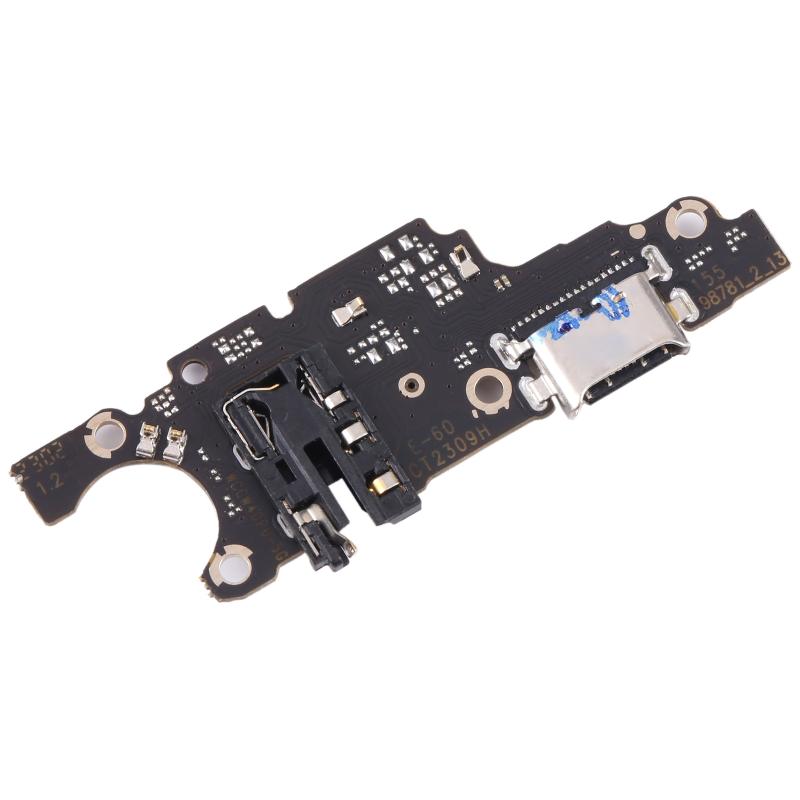

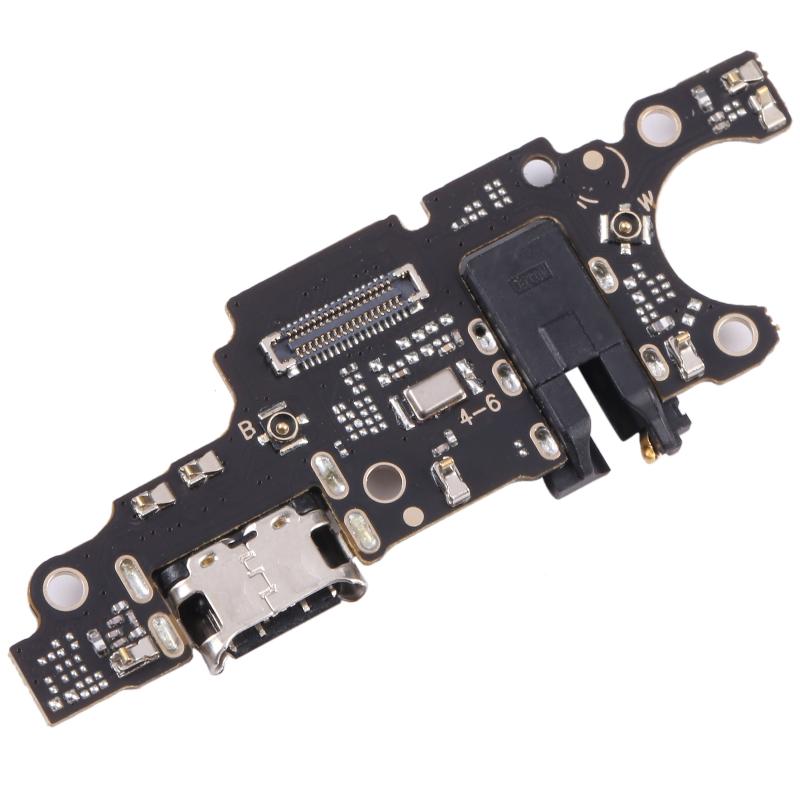

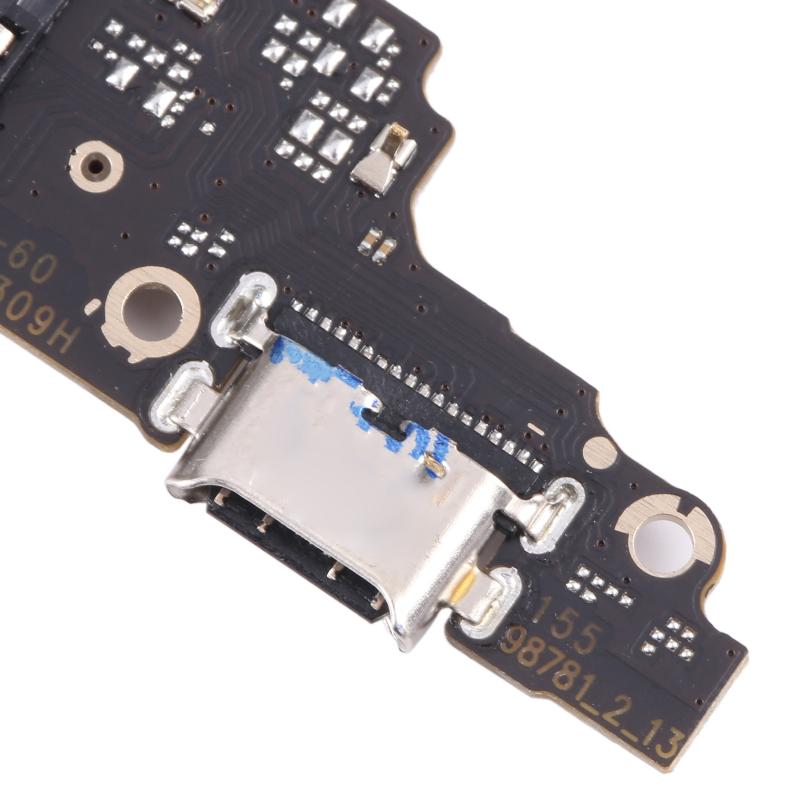

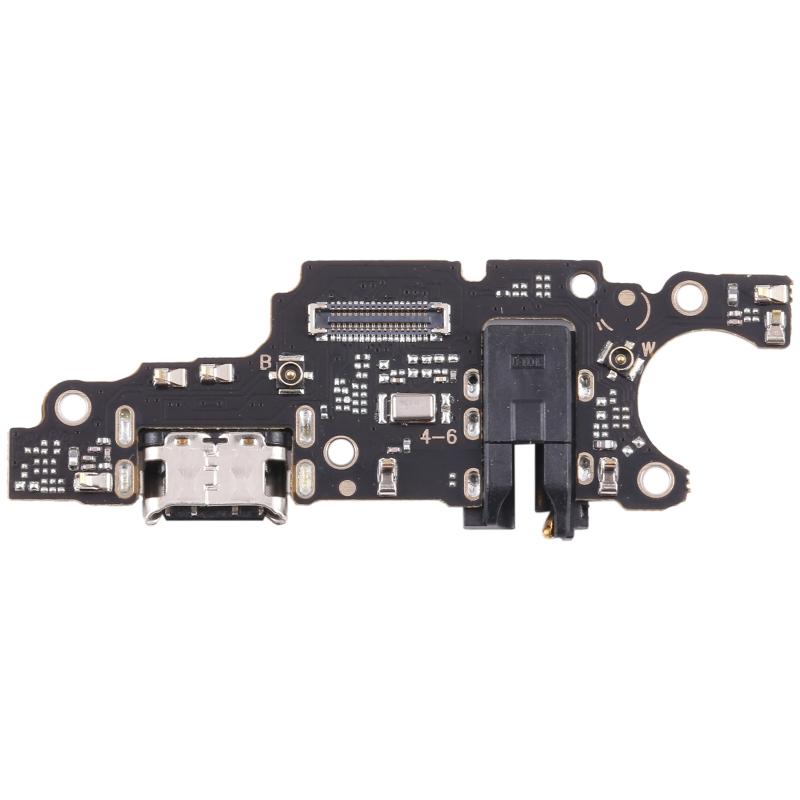

On the Honor X8 5G the USB-C charging port sits on a small board at the bottom of the phone, joined to the main board by a flex cable. Daily plugging in, pocket lint and drops wear the port, and the charger may then connect only at an angle or not at all.
This is the complete board with the port already fitted, so no soldering is needed. The supplier lists this board for the Honor X8 5G. If your phone is the Honor X8 (4G), this board is not listed for it. If the phone still does not charge with a new board and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Honor X8 5G
- Model numbers
- Check Settings › About phone
- Does not fit
- Honor X8 (4G), Honor X8a, Honor X9 or any other model
- Fixes
- A loose, slow or dead charging port and USB data faults
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Honor X8 5G
- In the box
- 1 × charging port board. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
How to check your model
Open Settings › About phone and check the model name reads Honor X8 5G, not Honor X8 (4G). The model code is also shown there and on the box. Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back cover of the Honor X8 5G and lift it gently with a plastic pick.
- Remove the screws and the bottom cover, then disconnect the battery connector first.
- Unplug the flex cable from the old charging port board and lift the board out.
- Fit the new board, reconnect the flex cable firmly and refit the bottom cover and screws.
- Reconnect the battery, fit new adhesive, close the back cover and test charging with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Honor X8 5G?
Yes, if Settings › About phone shows Honor X8 5G. It does not fit the Honor X8 (4G), Honor X8a, Honor X9.
Does it fit the Honor X8 (4G)?
No. The Honor X8 5G and Honor X8 (4G) share a name but are different phones with different internal parts. Check the model name in Settings › About phone before you order.
Do I need to solder anything?
No. This is a complete board with the USB-C port already fitted. It connects with a flex cable and is held by screws or light adhesive.
Is it made by Honor?
No. It is a brand new, OEM-quality charging port board made to fit the Honor X8 5G, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back cover of the Honor X8 5G is held with adhesive, and the battery must be disconnected before the new board is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
