Charging Port Board
Honor X8a Charging Port Board Replacement
- Fits
- Honor X8a
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

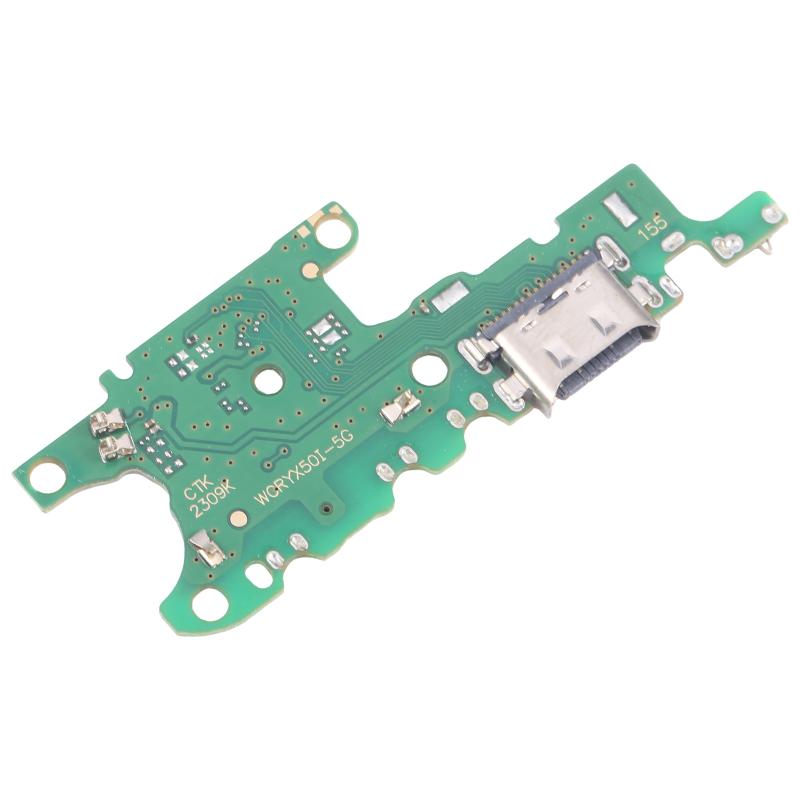

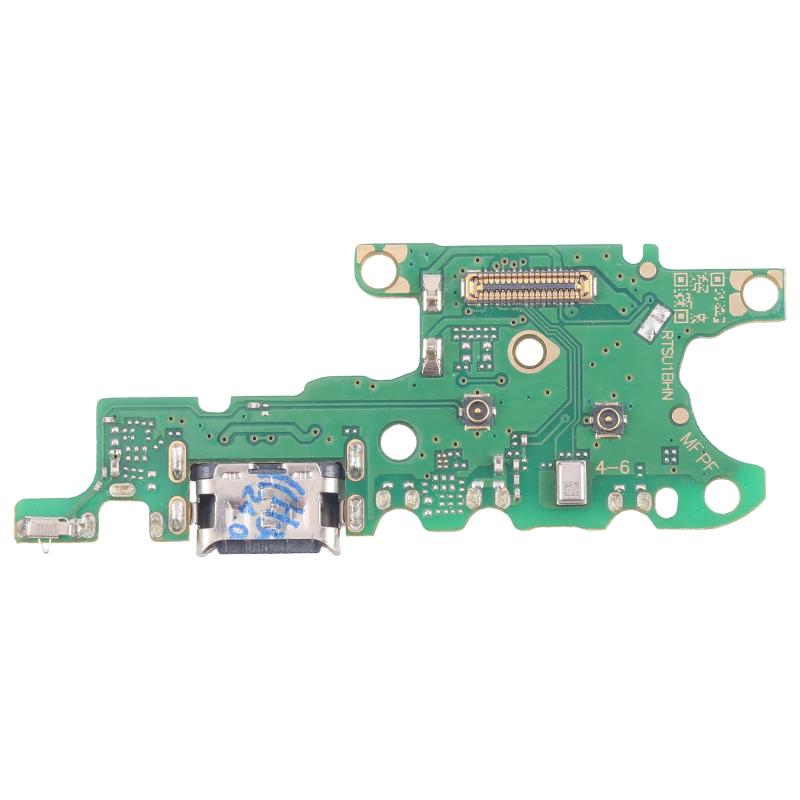

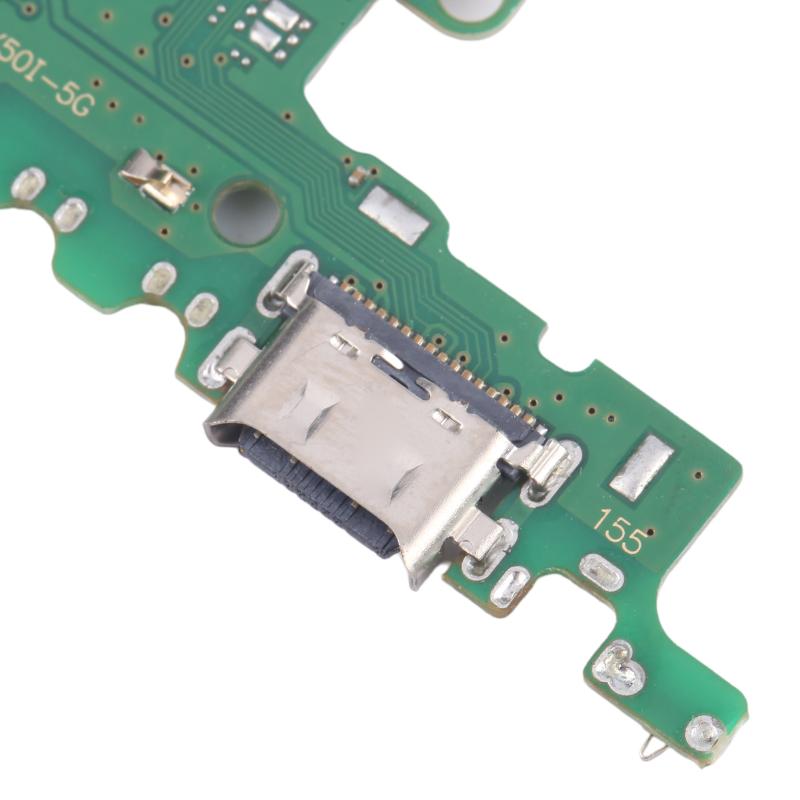

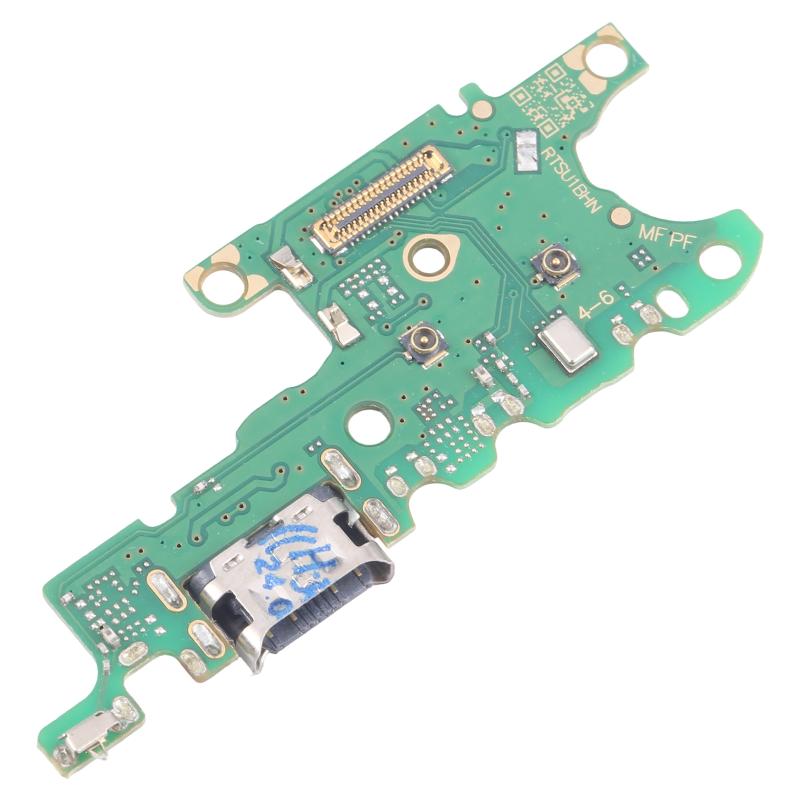

On the Honor X8a the USB-C port is mounted on a small sub-board at the bottom of the phone, joined to the main board by a flex cable. Daily plugging in, pocket lint and moisture wear the port out, so the phone stops charging or the cable feels loose.
This part replaces the whole charging port board, so the port and its connector are new. A new board restores normal charging and data. If the phone still will not charge with a new port, the fault may be the battery or the main board.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Honor X8a
- Model numbers
- CRT-LX1 · CRT-LX2 · CRT-LX3
- Does not fit
- Honor X8, Honor X8b, Honor X7a or any other model
- Fixes
- A loose or dead USB-C port, slow or intermittent charging, and no connection to a computer
- Does not fix
- Battery, screen, main board or software faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Honor X8a
- In the box
- 1 × charging port board for the Honor X8a. Check the photos for the exact part supplied.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone does not charge, or charges only when the cable is held at an angle
- The cable feels loose or falls out of the port
- A computer does not detect the phone
- Charging stops and starts on its own
How to check your model
Open Settings › About phone. The device name should read Honor X8a, not a Pro, Lite or other version. The model code (CRT-LX1 or CRT-LX2 or CRT-LX3) is shown under Settings › About phone › Model.
The Honor X8a has a 6.7-inch screen and a USB-C port. The older Honor X8 has a different body and internal layout.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back cover gently, open the phone and disconnect the battery first.
- Remove the lower cover and disconnect the flex cables from the charging port board.
- Unscrew the old board and fit the new one in the same position.
- Reconnect the flex cables and battery, then test charging and a computer connection.
- Refit the covers, seal the back with new adhesive and run a final check.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Honor X8a?
Yes, if Settings › About phone shows Honor X8a. It is made for models CRT-LX1, CRT-LX2 and CRT-LX3. It does not fit the Honor X8, Honor X8b, Honor X7a.
Does it fit the Honor X8?
No. The Honor X8 is a different phone with a different charging port board. This part is for the Honor X8a only.
Will it fix a phone that charges slowly?
It will if the port is worn or damaged. If a new cable and plug also charge slowly, the port is the likely cause. If the battery is worn, a new port will not help.
Is it made by Honor?
No. It is a brand new, OEM-quality charging port board made to fit the Honor X8a, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back cover is held by adhesive, and the battery must be disconnected before the board is removed.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester, with free Royal Mail Tracked delivery on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
