Charging Port Board
Huawei Mate 20 Lite Charging Port Board Replacement
- Fits
- Huawei Mate 20 Lite
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

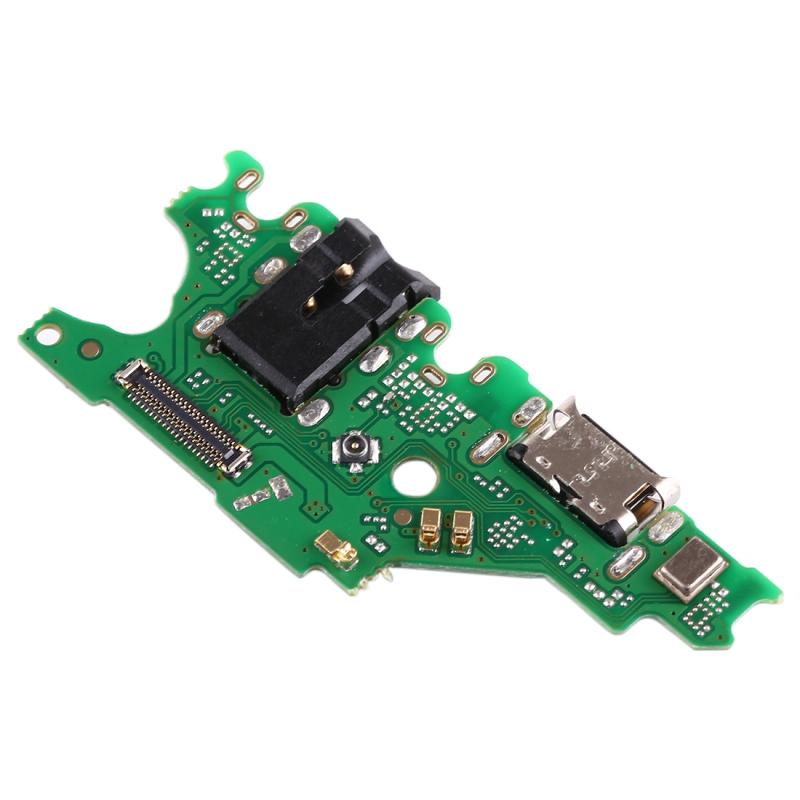

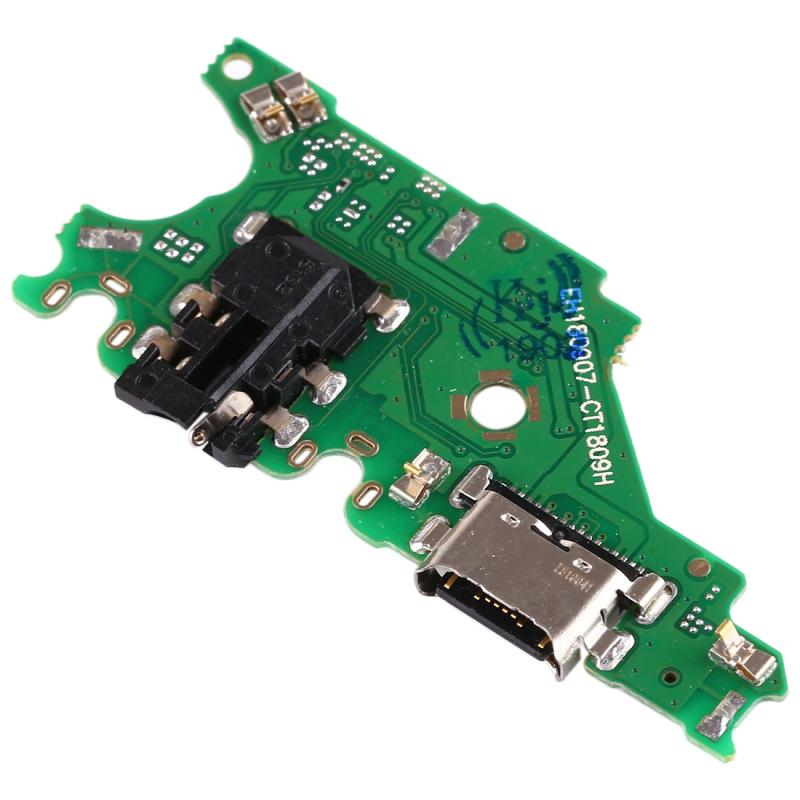

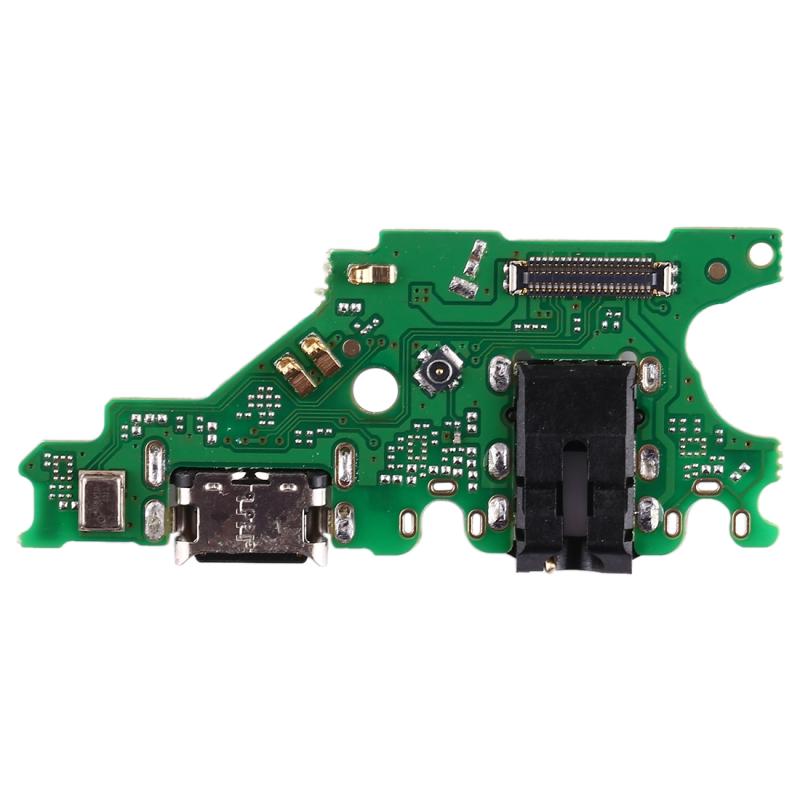

The Huawei Mate 20 Lite charges through a USB-C port on a small board at the bottom of the phone. Lint, moisture and daily use wear the port, so the cable feels loose or the phone stops charging.
This part replaces the charging port board as one unit. It restores charging and data when the port is at fault. The older Mate 10 Lite uses micro-USB and a different board, so the two are not interchangeable.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Huawei Mate 20 Lite
- Model numbers
- SNE-LX1 · SNE-LX2 · SNE-LX3
- Does not fit
- Mate 20, Mate 20 Pro, Mate 10 Lite or any other model
- Fixes
- A loose or dead USB-C port, intermittent charging, and no connection to a computer
- Does not fix
- Battery, screen, main board or software faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei Mate 20 Lite
- In the box
- 1 × charging port board for the Huawei Mate 20 Lite.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone does not charge, or only at an angle
- The USB-C cable is loose in the port
- A computer does not detect the phone
- The charging icon keeps turning on and off
How to check your model
Open Settings › About phone. The device name should read Mate 20 Lite, not a Pro, Lite or other version. The model code (SNE-LX1 or SNE-LX2 or SNE-LX3) is shown under Settings › About phone › Model.
The Mate 20 Lite has a 6.3-inch screen, two rear cameras stacked vertically and a rear fingerprint sensor. It was also sold in China as the Maimang 7.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Open the back cover carefully and disconnect the battery.
- Remove the lower cover and disconnect the charging board flex cables.
- Unscrew the old board and fit the new one.
- Reconnect the battery and test charging and a computer connection.
- Refit the covers, reseal the back and run a final check.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Mate 20 Lite?
Yes, if Settings › About phone shows Mate 20 Lite. It is made for models SNE-LX1, SNE-LX2 and SNE-LX3. It does not fit the Mate 20, Mate 20 Pro, Mate 10 Lite.
Does it fit the Mate 10 Lite?
No. The Mate 10 Lite has a micro-USB board with a different shape. This board is for the Mate 20 Lite only.
Will it fix a phone that shows 'moisture detected' in the port?
If the port itself is corroded, a new board will clear it. Dry the phone first, as the message can also appear when the port is simply wet.
Is it made by Huawei?
No. It is a brand new, OEM-quality charging port board made to fit the Huawei Mate 20 Lite, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back cover is glued, the battery must be disconnected first, and the flex connectors are small.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester, with free Royal Mail Tracked delivery on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
