Power and Volume Button Flex Cable
Huawei Mate 20 Power and Volume Button Flex Cable Replacement
- Fits
- Huawei Mate 20
- Fixes
- Dead side buttons
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the Huawei Mate 20 the power and volume buttons press small switches mounted on one flex cable inside the frame. Drops, liquid and wear can break a switch or the cable, so a button stops working or acts on its own.

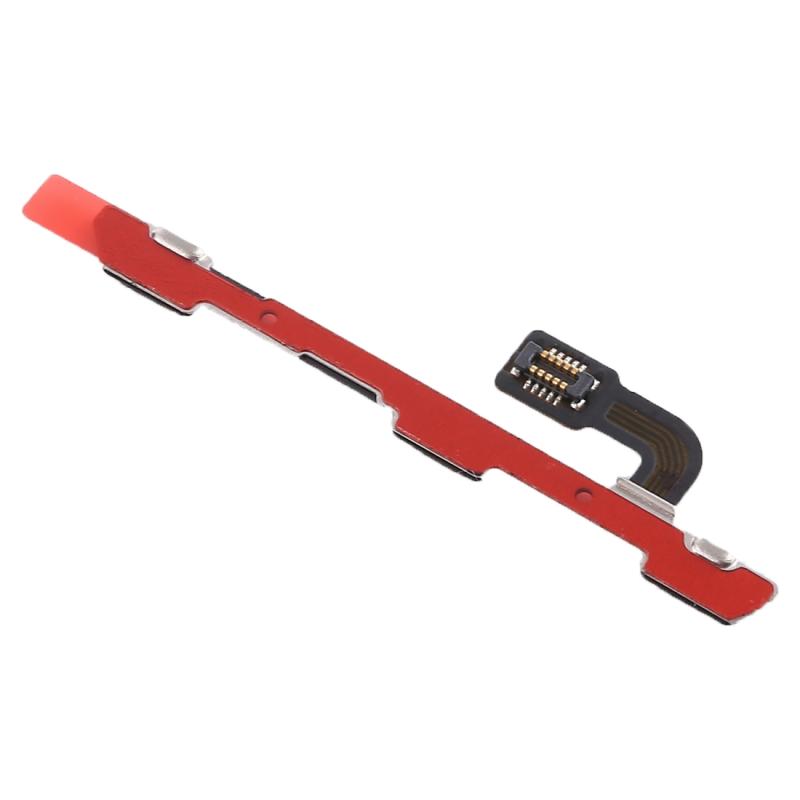

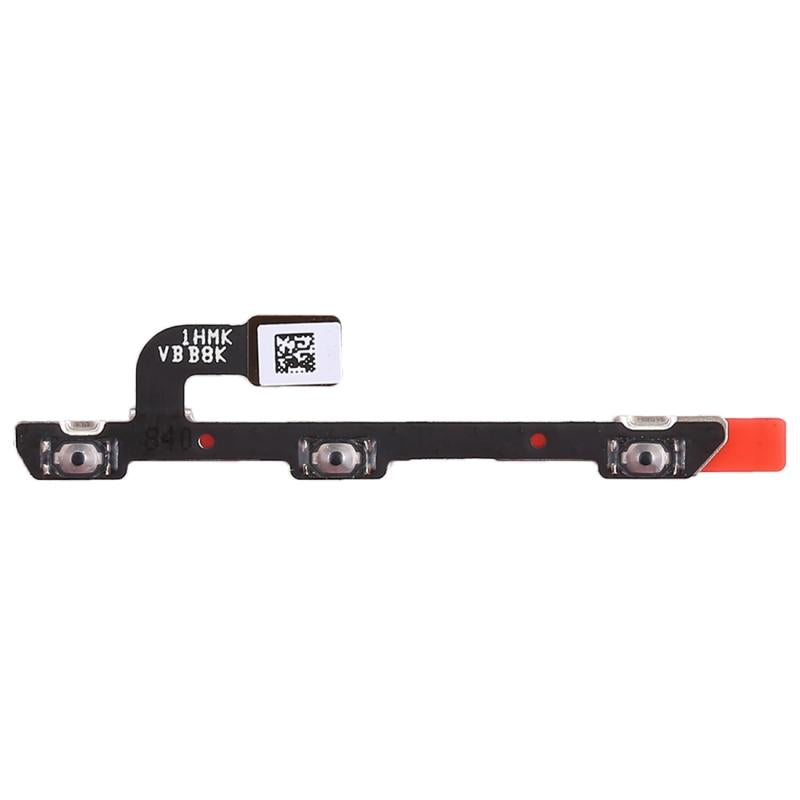

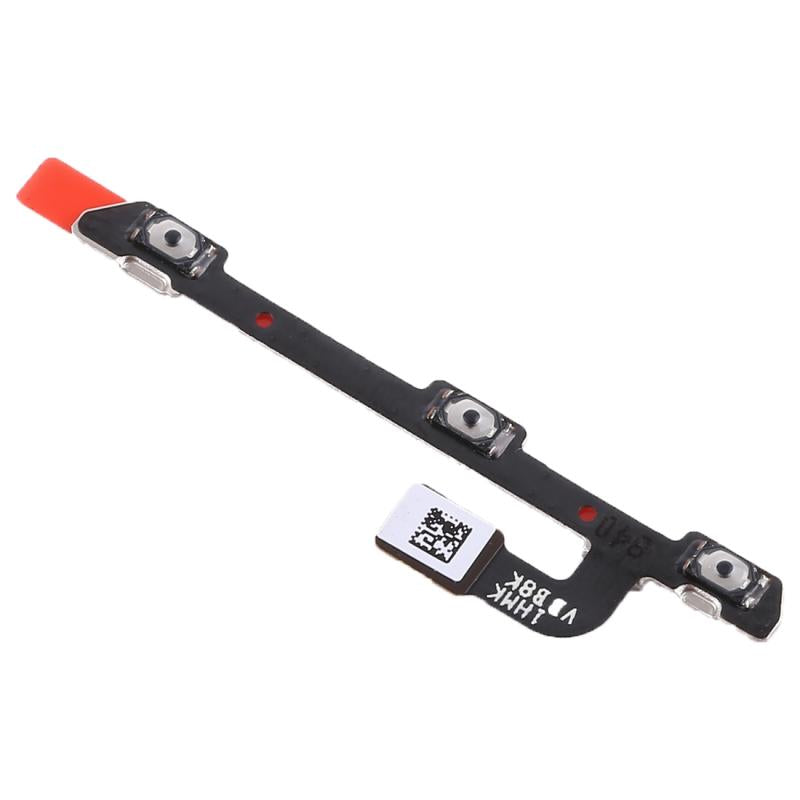

This part replaces the full side button flex. Fitting it restores power, volume up and volume down. It does not include the outer button caps.
Compatibility
Specifications and compatibility
- Part
- Power and Volume Button Flex Cable
- Compatible with
- Huawei Mate 20
- Model numbers
- HMA-L09 · HMA-L29
- Does not fit
- Mate 20 Pro, Mate 20 Lite, Mate 20 X or any other model
- Fixes
- Power or volume buttons that do not respond, feel flat, or trigger on their own
- Does not fix
- Broken outer button caps, screen, charging or main board faults
- Quality
- Brand new, OEM-quality power and volume button flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei Mate 20
- In the box
- 1 × power and volume button flex cable for the Huawei Mate 20.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone will not wake with the power button
- Volume buttons do nothing
- Screenshots or the volume bar appear by themselves
- A button feels soft with no click
How to check your model
Open Settings › About phone. The device name should read Mate 20, not a Pro, Lite or other version. The model code (HMA-L09 or HMA-L29) is shown under Settings › About phone › Model.
The Mate 20 has a 6.53-inch screen with a small teardrop notch and a rear fingerprint sensor. The Mate 20 Pro has a curved screen, a wide notch and an in-screen fingerprint sensor.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the glass back, open it and disconnect the battery.
- Remove the covers and parts over the side button flex.
- Lift the old flex from the frame and fit the new one, lining each switch up with its button.
- Reconnect the battery and test power, volume up and volume down.
- Reassemble, reseal the back and run a final check.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Mate 20?
Yes, if Settings › About phone shows Mate 20. It is made for models HMA-L09 and HMA-L29. It does not fit the Mate 20 Pro, Mate 20 Lite, Mate 20 X.
Does it fit the Mate 20 Pro?
No. The Mate 20 Pro has a different frame and flex. This part is for the standard Mate 20 only.
Does it include the button caps?
No. This is the flex cable with the switches. The outer power and volume button caps stay in the frame.
Is it made by Huawei?
No. It is a brand new, OEM-quality button flex cable made to fit the Huawei Mate 20, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Mate 20 has a glued glass back, and the battery must be disconnected before the flex is removed.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester, with free Royal Mail Tracked delivery on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
