Loudspeaker
Huawei Mate 20 Pro Loudspeaker Replacement
- Fits
- Huawei Mate 20 Pro
- Fixes
- No or crackly sound
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

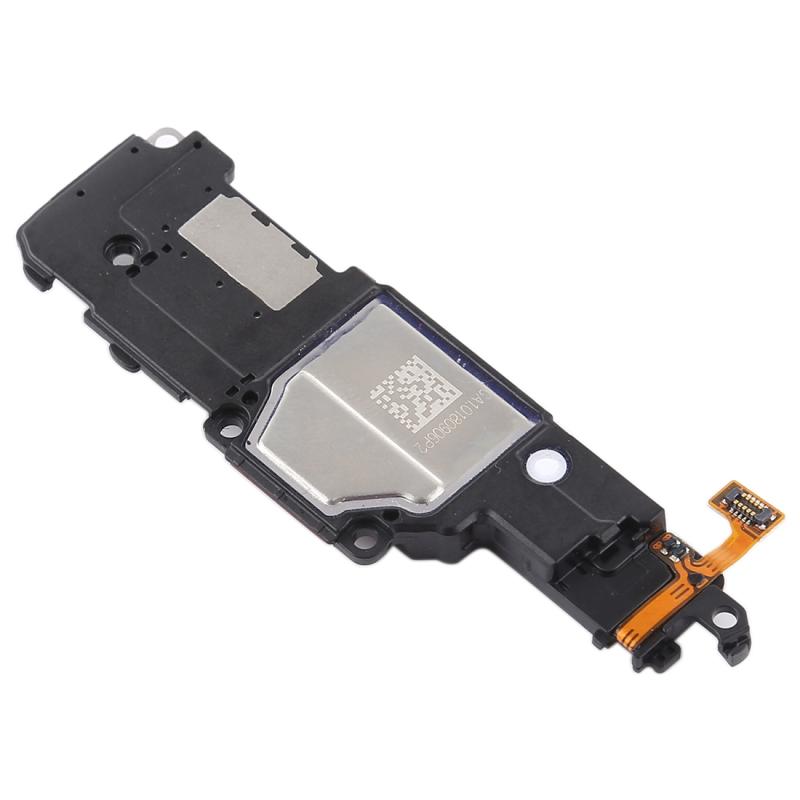

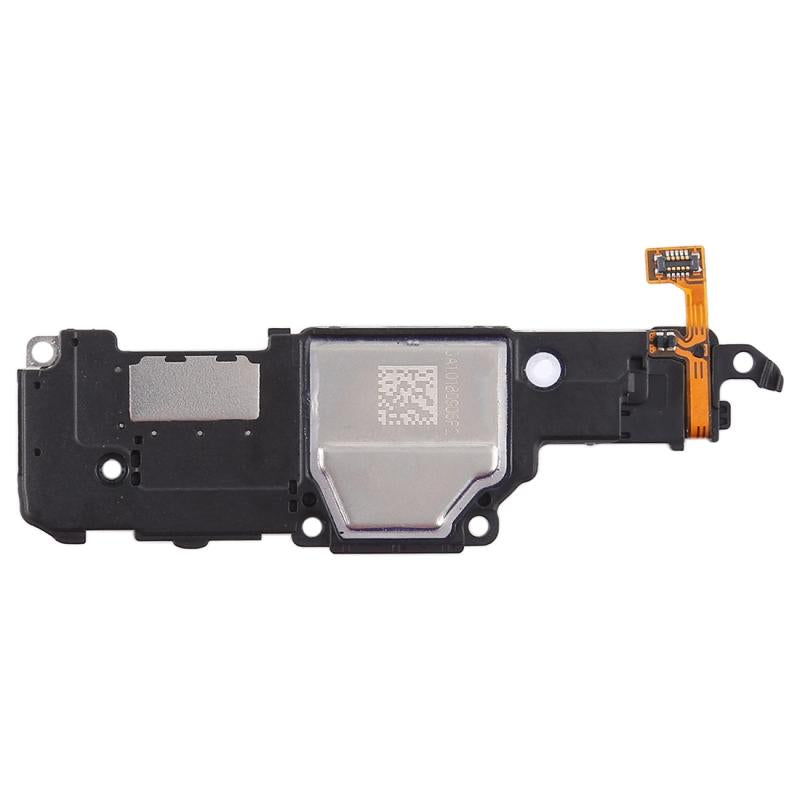

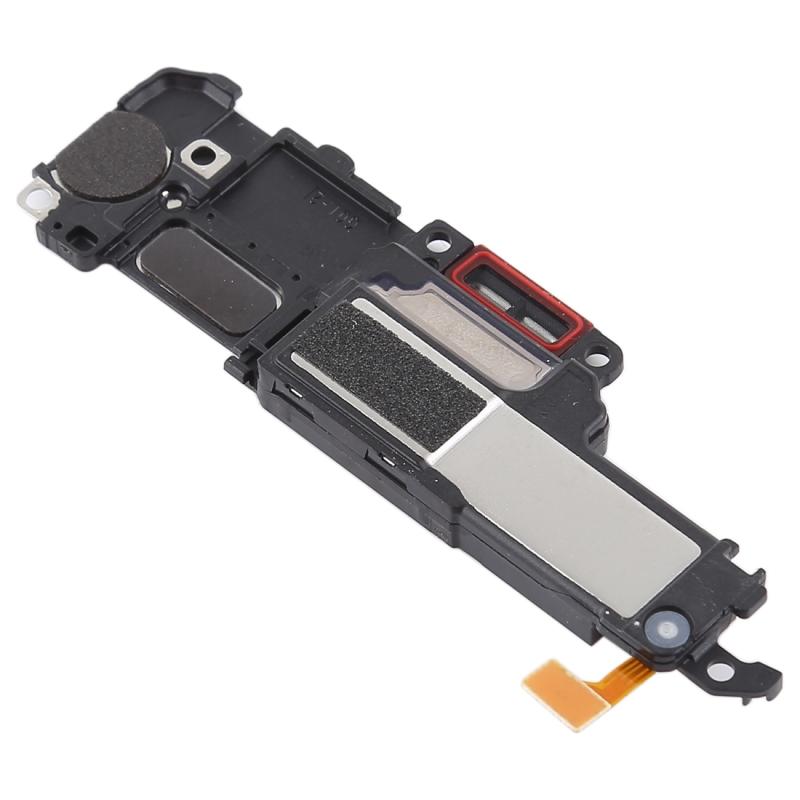

The loudspeaker at the bottom of the Huawei Mate 20 Pro plays ringtones, alarms, media and speakerphone calls. Water, dust and high volume can damage it, so sound becomes quiet, distorted or stops.
This part replaces the bottom loudspeaker. It restores clear sound when the speaker has failed. The earpiece at the top of the phone is a separate part.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- Huawei Mate 20 Pro
- Model numbers
- LYA-L09 · LYA-L29
- Does not fit
- Mate 20, Mate 20 X, Mate 20 Lite or any other model
- Fixes
- No sound, quiet sound, or crackling from the bottom speaker
- Does not fix
- Earpiece, microphone or USB-C audio faults
- Quality
- Brand new, OEM-quality loudspeaker. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei Mate 20 Pro
- In the box
- 1 × loudspeaker for the Huawei Mate 20 Pro.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- Ringtones and alarms are silent or very quiet
- Music and videos crackle or buzz
- Callers cannot be heard on speakerphone
- Sound works in headphones but not from the speaker
How to check your model
Open Settings › About phone. The device name should read Mate 20 Pro, not a Pro, Lite or other version. The model code (LYA-L09 or LYA-L29) is shown under Settings › About phone › Model.
The Mate 20 Pro has a 6.39-inch curved screen with a wide notch and an in-screen fingerprint sensor. The standard Mate 20 has a flat screen and a rear fingerprint sensor.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the glass back, open it and disconnect the battery.
- Remove the screws and lift out the old loudspeaker.
- Fit the new loudspeaker, making sure its contacts touch the board.
- Reconnect the battery and test ringtones, media and speakerphone.
- Reassemble, reseal the back with new adhesive and run a final check.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Mate 20 Pro?
Yes, if Settings › About phone shows Mate 20 Pro. It is made for models LYA-L09 and LYA-L29. It does not fit the Mate 20, Mate 20 X, Mate 20 Lite.
Does it fit the Mate 20?
No. The Mate 20 uses a different speaker. This part is for the Mate 20 Pro only.
Will it fix a quiet earpiece during calls?
No. This is the bottom loudspeaker. The earpiece at the top of the phone is a separate part.
Is it made by Huawei?
No. It is a brand new, OEM-quality loudspeaker made to fit the Huawei Mate 20 Pro, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Mate 20 Pro has a glued glass back and a water-resistant seal, so it needs heat and new adhesive.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester, with free Royal Mail Tracked delivery on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
