Charging Port Board
Huawei P Smart 2019 Charging Port Board Replacement
- Fits
- Huawei P Smart 2019
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The Huawei P Smart 2019 charges through a micro USB port at the bottom of the phone. Daily plugging in, pocket lint and drops wear the port, and the charger may only work at an angle or stop working altogether.

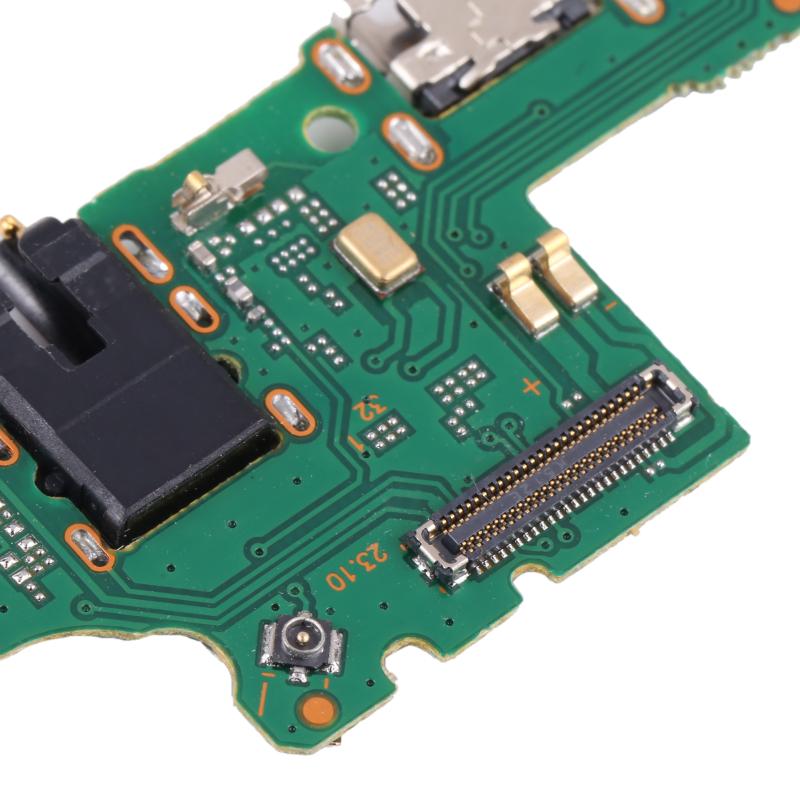

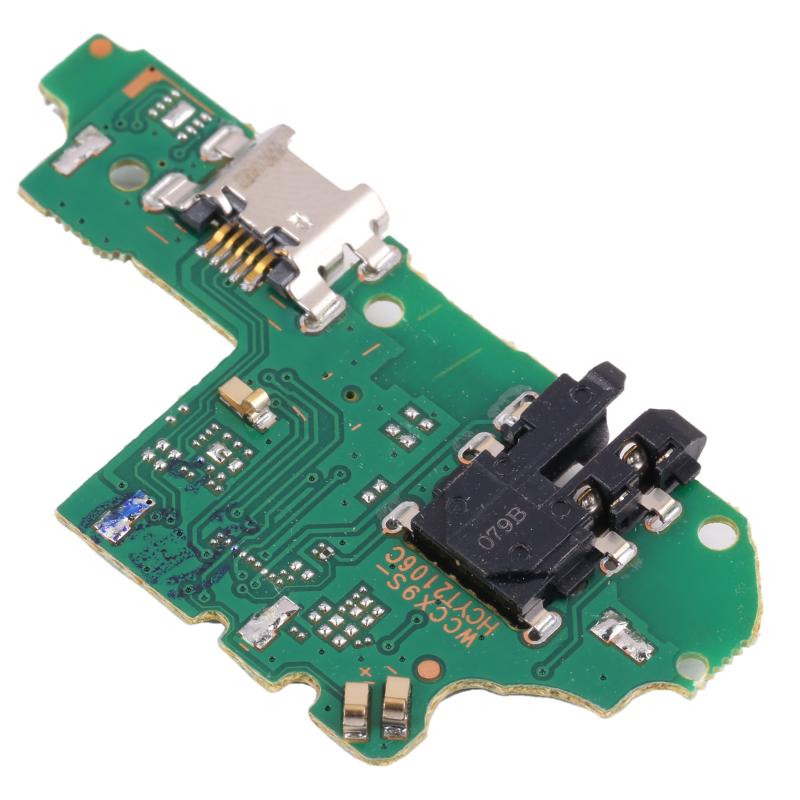

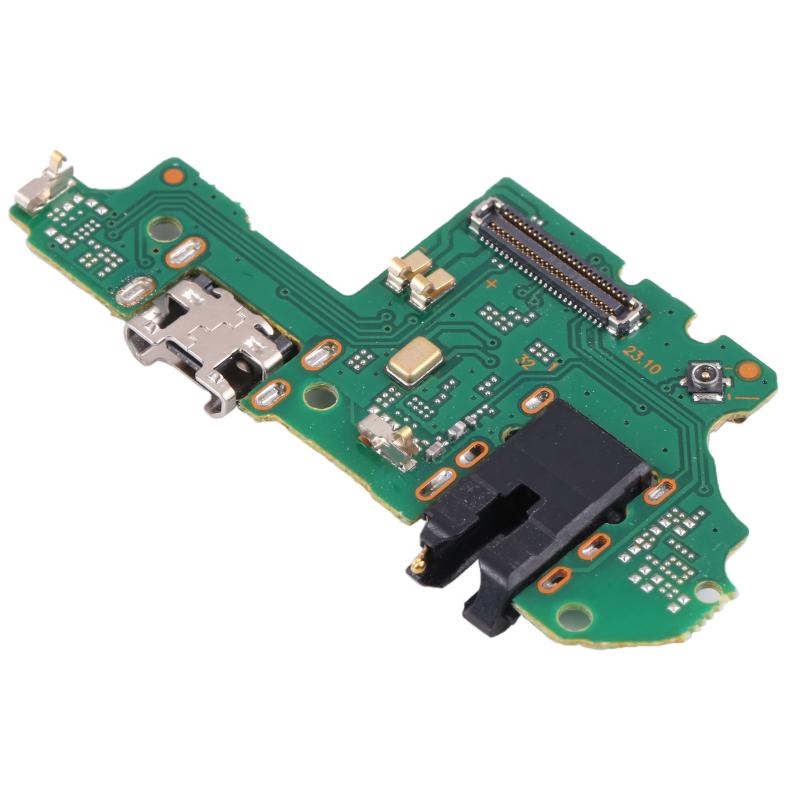

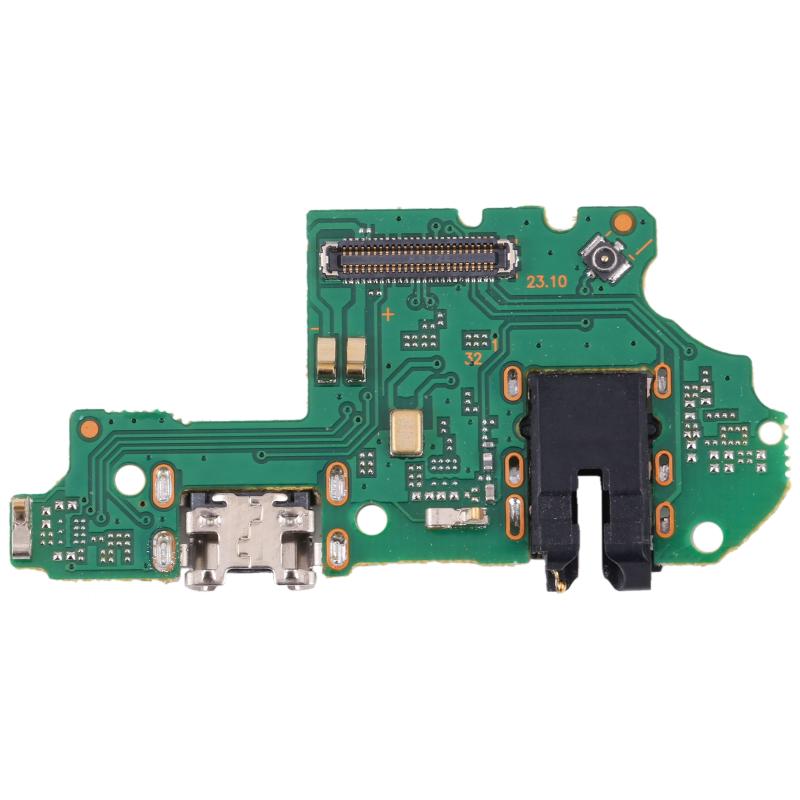

This is the complete charging port board with the port already fitted, so the whole board is swapped as one part. If the phone still does not charge with a new part and a known good cable, the battery, charger or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Huawei P Smart 2019
- Model numbers
- POT-LX1
- Does not fit
- P Smart 2018 (FIG-LX1), P Smart 2021 or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei P Smart 2019
- In the box
- 1 × charging port board for Huawei P Smart 2019.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About phone. The device name should read P Smart 2019. The model number should be POT-LX1.
The P Smart 2019 and P Smart 2020 look very alike. Check the model number: the 2019 version is POT-LX1, the 2020 version is POT-LX1A.
Professional installation
How a technician fits this part
- Power the Huawei P Smart 2019 off and remove the SIM or card tray.
- Warm the back cover to soften the adhesive and lift it off carefully with a plastic opening tool.
- Remove any screws and covers over the battery connector, then disconnect the battery before touching any other part.
- Unplug the flex cable and remove the old charging port part.
- Fit the new part, reconnect the flex cable firmly and refit the screws and covers.
- Reconnect the battery, test charging with a known good cable, then reseal with new adhesive.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Huawei P Smart 2019?
Yes, if your device shows Huawei P Smart 2019. It is made for model POT-LX1. It does not fit the P Smart 2018 (FIG-LX1), P Smart 2021.
Does it fit the first P Smart (2018)?
No. The first P Smart (FIG-LX1) uses a micro USB port and a different board. This board is for the P Smart 2019.
Do I need to solder anything?
No. The port comes already fitted, and the part connects with a flex cable connector and screws.
Is it made by Huawei?
No. It is a brand new, OEM-quality charging port board made to fit the Huawei P Smart 2019, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Huawei P Smart 2019 has to be opened with heat and plastic tools, and the battery must be disconnected before the new part is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
