Charging Port Board
Huawei P10 Charging Port Board Replacement
- Fits
- Huawei P10
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

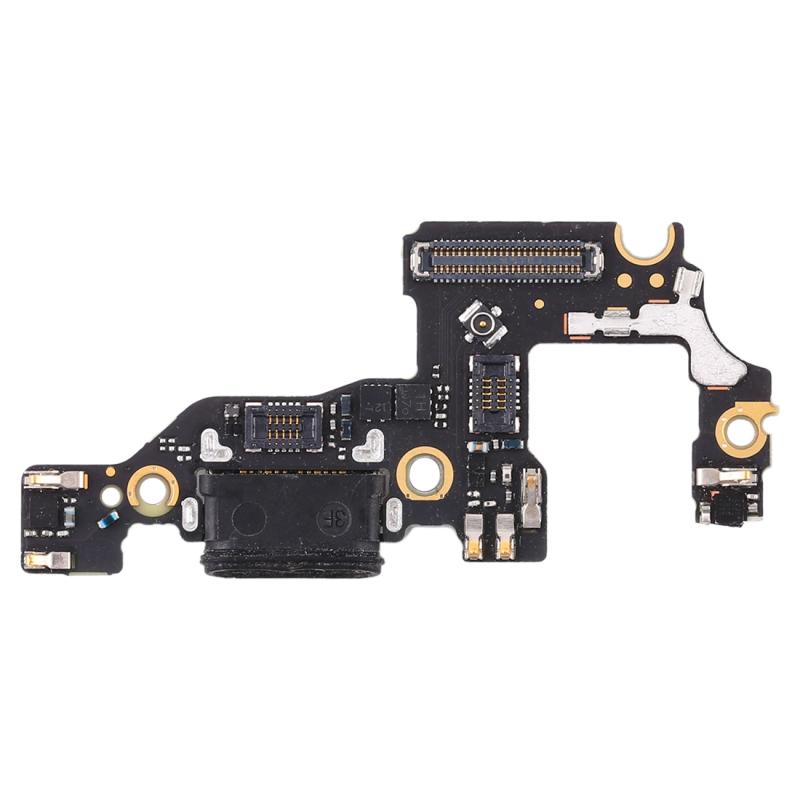

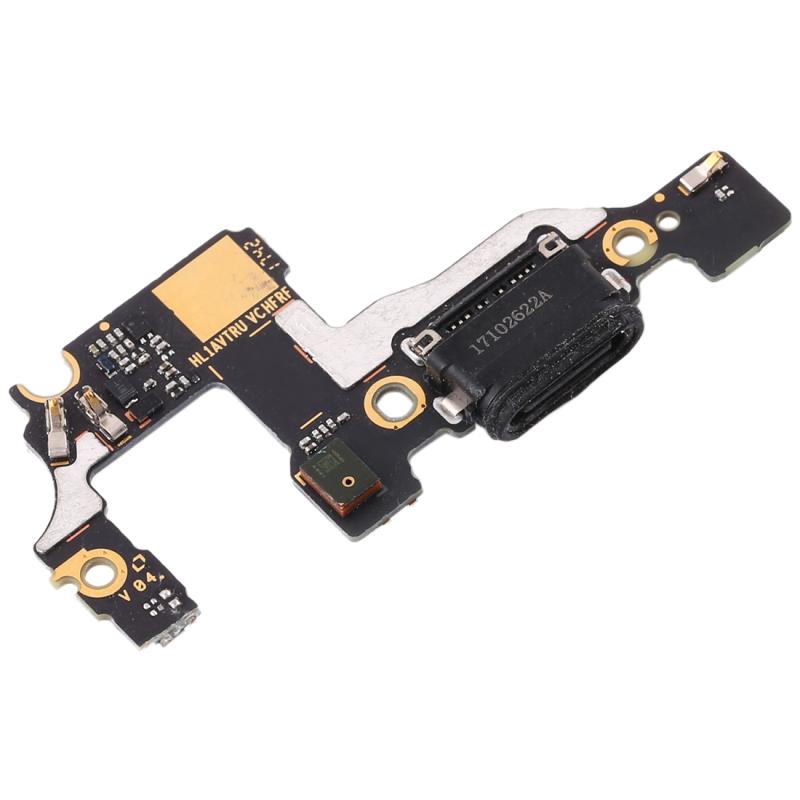

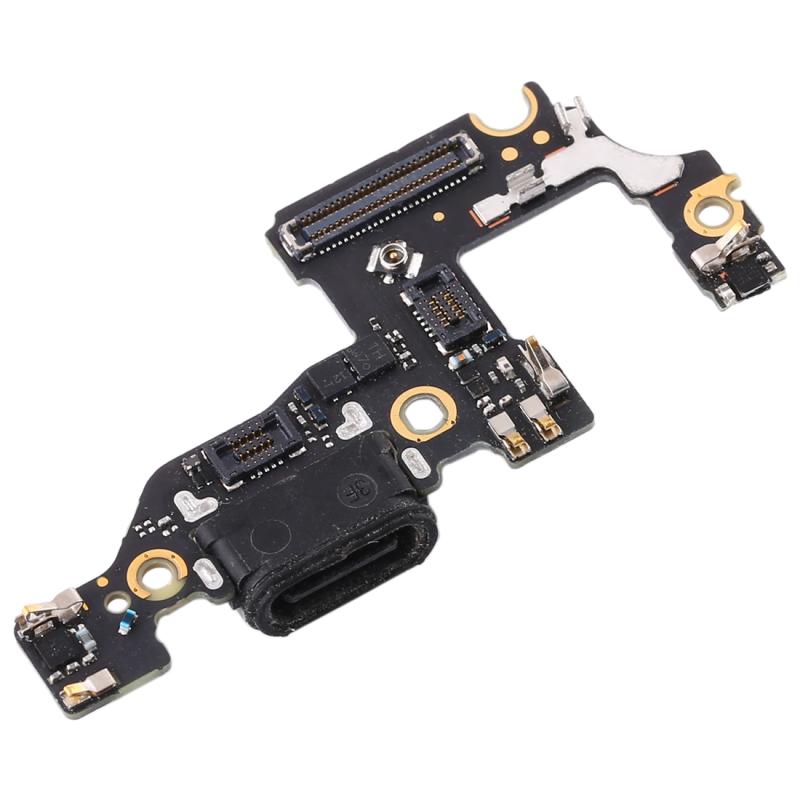

On the Huawei P10 the charging port is mounted on a small sub-board at the bottom of the phone, joined to the main board by a flex cable. Daily plugging in, pocket lint, moisture and drops wear the port out, and the phone stops charging reliably.
This is the complete charging port board with the port already fitted, so no soldering is needed. If the phone still does not charge with a new part and a known good cable and charger, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Huawei P10
- Model numbers
- VTR-L09 · VTR-L29
- Does not fit
- Huawei P10 Plus, P10 Lite, P9 or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei P10
- In the box
- 1 × charging port board for Huawei P10.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About phone. The model should read P10 and the model number should start VTR-.
The P10 has a 5.1-inch screen and a fingerprint sensor on the front below the display. The P10 Plus is larger and the P10 Lite has the fingerprint sensor on the back.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the display edges and open the phone from the screen side with a suction cup and plastic tools.
- Lift the display carefully, avoiding its flex cable, then disconnect the battery before anything else.
- Remove the bottom cover, unplug the connectors and unscrew the old charging port board.
- Fit the new part, reconnect its connectors and secure the screws.
- Refit the covers and screws, apply new adhesive and close the phone, pressing evenly.
- Reconnect the battery if needed, power on and test charging with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Huawei P10?
Yes, if your model number is VTR-L09 or VTR-L29. Check it in Settings › About phone.
Does it fit the Huawei P10 Plus?
No. The P10 Plus (VKY-) is a larger phone with different internal parts. This part is for the P10 (VTR-) only.
Do I need to solder anything?
No. This is a complete board with the port already fitted. It connects with plug-in connectors and screws.
Is it made by Huawei?
No. It is a brand new, OEM-quality charging port board made to fit the Huawei P10, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Huawei P10 has to be opened carefully with heat and plastic tools, and the battery must be disconnected before the new part is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
