Loudspeaker
Huawei P10 Lite Loudspeaker Replacement
- Fits
- Huawei P10 Lite
- Fixes
- No ringtone or media sound
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The loudspeaker in the Huawei P10 Lite sits at the bottom of the phone and plays ringtones, alarms, music, video sound and speakerphone calls. Water, dust and drops can damage it, so sound becomes quiet, crackly or stops completely.

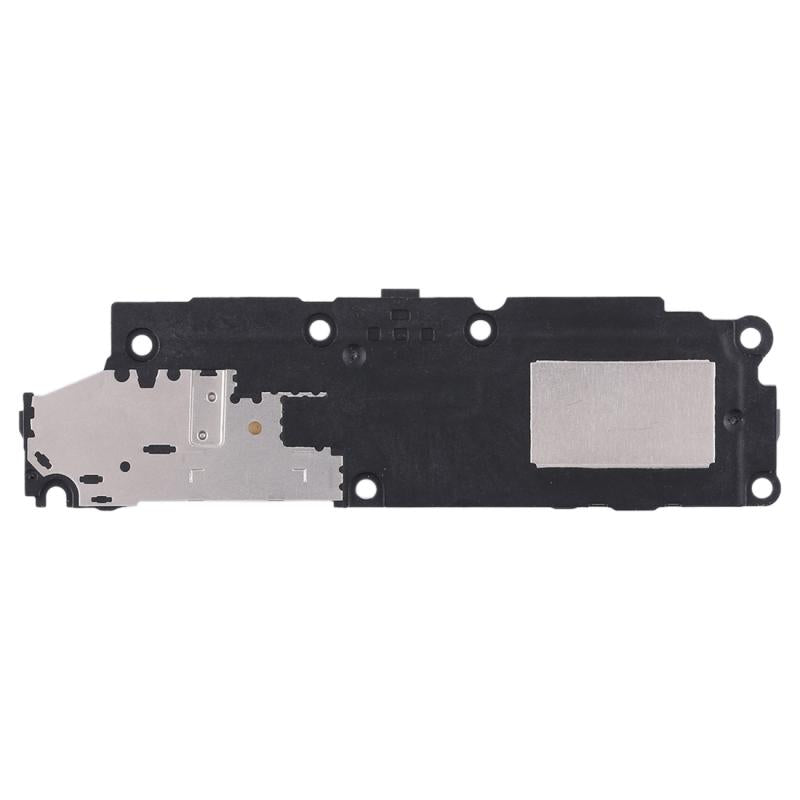

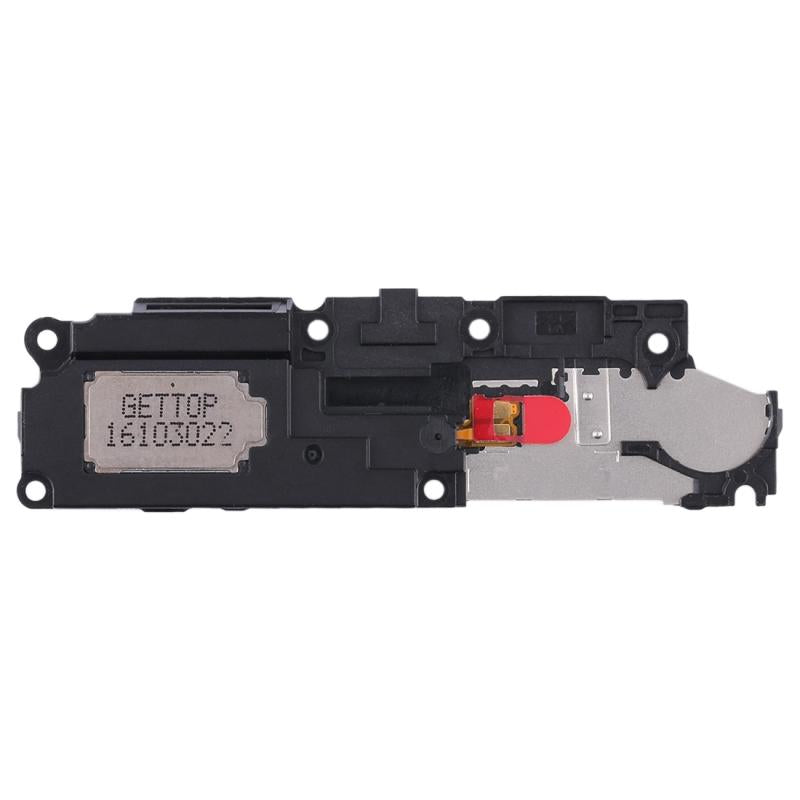

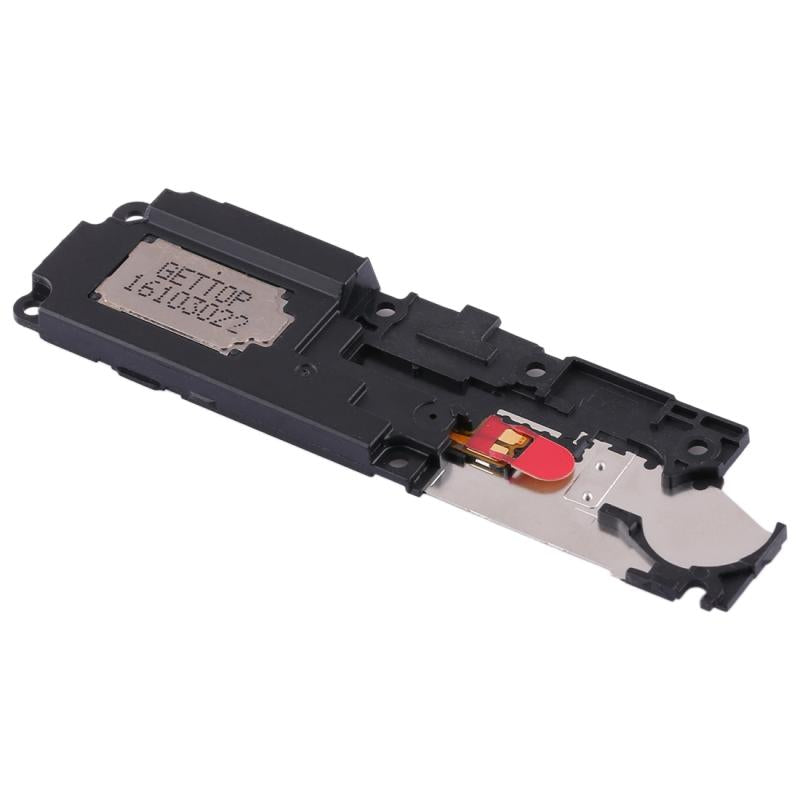

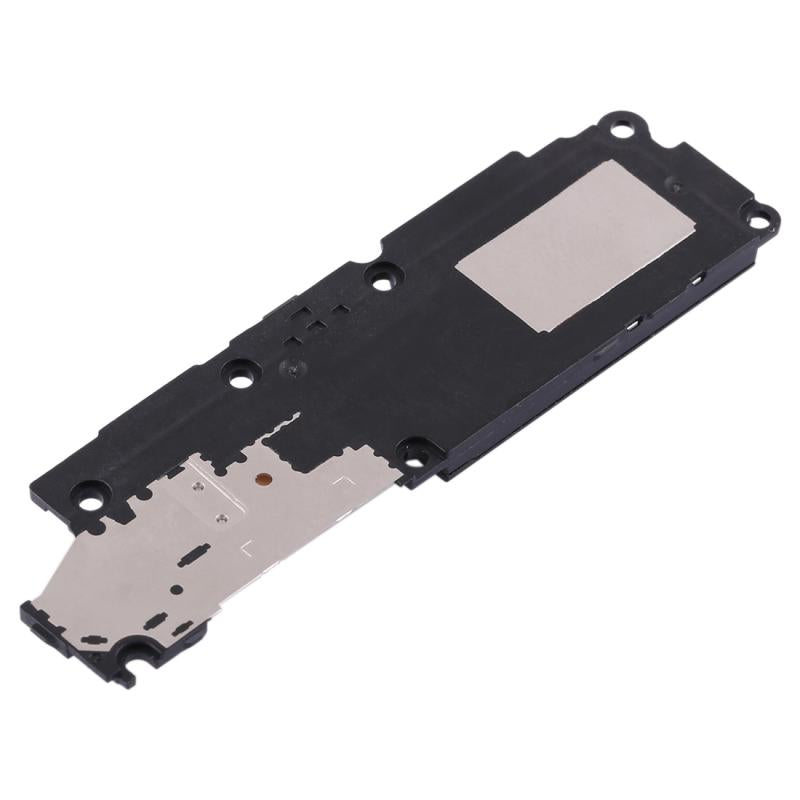

This is the complete speaker module for the Huawei P10 Lite. It is not the earpiece you hold to your ear during normal calls. If the loudspeaker is silent, first check the volume, Do Not Disturb and any Bluetooth connection; if sound is still missing, the speaker is the likely fault.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- Huawei P10 Lite
- Model numbers
- WAS-LX1 · WAS-LX1A
- Does not fit
- Huawei P10, P10 Plus, P9 Lite or any other model
- Fixes
- No sound, crackling, rattling or very quiet ringtones, media and speakerphone
- Does not fix
- Earpiece, microphone, headphone, software or main board faults
- Quality
- Brand new, OEM-quality loudspeaker module. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei P10 Lite
- In the box
- 1 × loudspeaker module for Huawei P10 Lite.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- Ringtones and alarms are silent or very quiet
- Music and video sound crackles or rattles
- Speakerphone does not work, but the earpiece does
- Sound is distorted at higher volume
How to check your model
Open Settings › About phone. The model should read P10 lite and the model number should start WAS-.
The P10 Lite has a single rear camera and a fingerprint sensor on the back. The P10 has two rear cameras and a front fingerprint sensor.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back glass edges and lift it off carefully with a thin plastic tool.
- Remove the screws holding the inner covers, then disconnect the battery before anything else.
- Remove the screws holding the loudspeaker module and lift it out.
- Fit the new loudspeaker, making sure its contacts sit flat, and secure the screws.
- Refit the covers and screws, apply new adhesive and close the phone, pressing evenly.
- Reconnect the battery if needed, power on and test ringtone, music and speakerphone.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Huawei P10 Lite?
Yes, if your model number is WAS-LX1 or WAS-LX1A. Check it in Settings › About phone.
Does it fit the Huawei P10?
No. The P10 (VTR-) is a different phone with a different internal layout. This part is for the P10 Lite (WAS-) only.
Is this the earpiece speaker?
No. This is the loudspeaker at the bottom of the Huawei P10 Lite, used for ringtones, media and speakerphone. The earpiece is a separate part.
Is it made by Huawei?
No. It is a brand new, OEM-quality loudspeaker made to fit the Huawei P10 Lite, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Huawei P10 Lite has to be opened carefully with heat and plastic tools, and the battery must be disconnected before the new part is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
