Charging Port Board
Huawei P20 Lite 2019 Charging Port Board Replacement
- Fits
- Huawei P20 Lite 2019
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

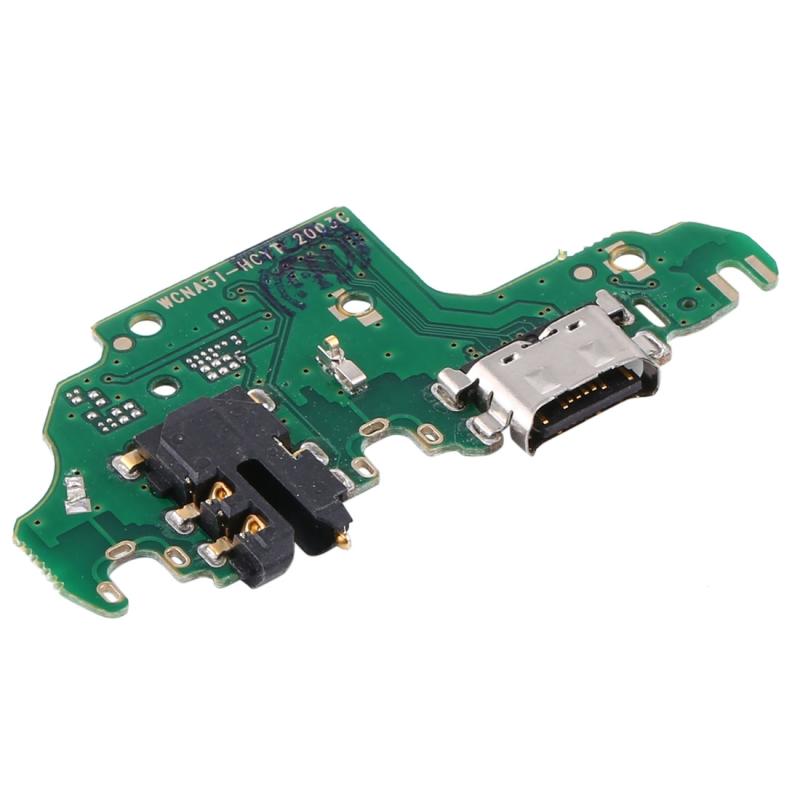

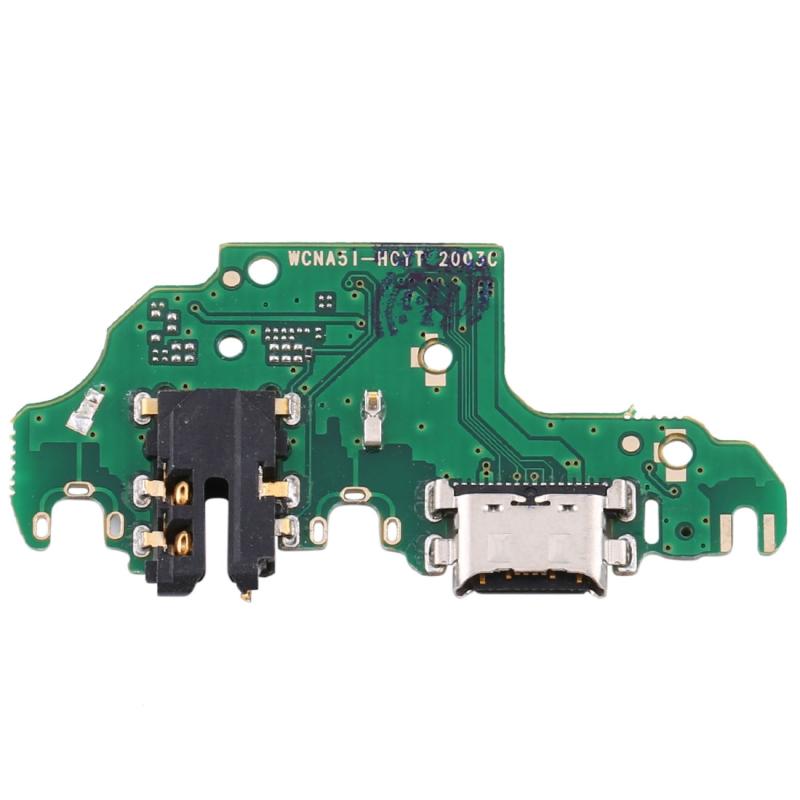

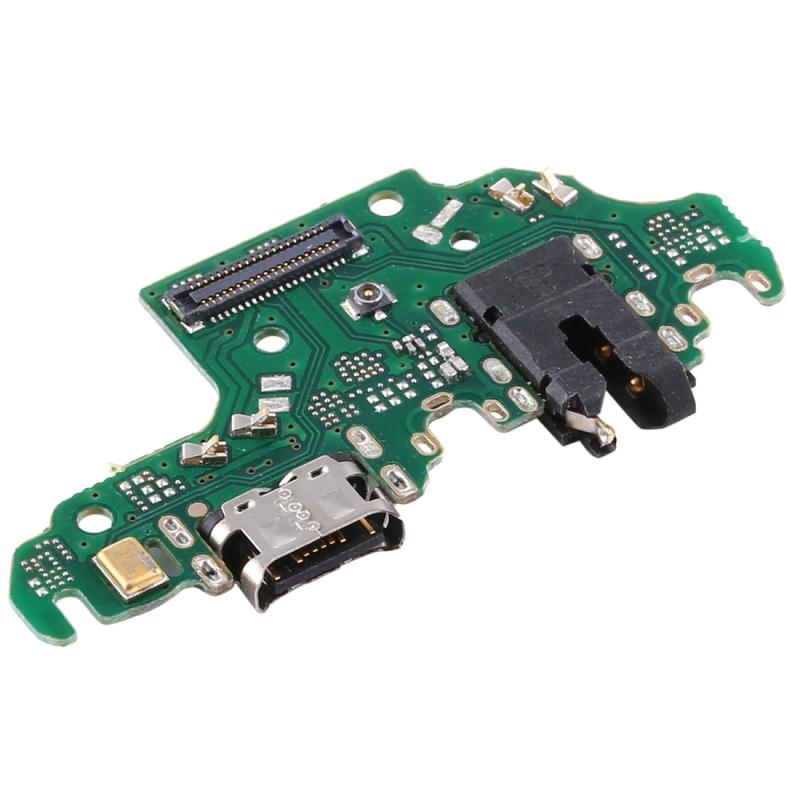

On the Huawei P20 Lite 2019 the charging port is mounted on a small sub-board at the bottom of the phone, joined to the main board by a flex cable. Daily plugging in, pocket lint, moisture and drops wear the port out, and the phone stops charging reliably.
This is the complete charging port board with the port already fitted, so no soldering is needed. If the phone still does not charge with a new part and a known good cable and charger, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Huawei P20 Lite 2019
- Model numbers
- Check Settings › About phone
- Does not fit
- Huawei P20 Lite (2018), P20, P20 Pro or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei P20 Lite 2019
- In the box
- 1 × charging port board for Huawei P20 Lite 2019.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About phone. The model should read P20 lite (2019). If it reads P20 lite without 2019, or the model number starts ANE-, you have the 2018 phone and this part will not fit.
The P20 Lite 2019 and the 2018 P20 Lite share a name but are different phones.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back cover edges and lift it off carefully with a thin plastic tool.
- Remove the screws holding the inner covers, then disconnect the battery before anything else.
- Remove the bottom cover, unplug the connectors and unscrew the old charging port board.
- Fit the new part, reconnect its connectors and secure the screws.
- Refit the covers and screws, apply new adhesive and close the phone, pressing evenly.
- Reconnect the battery if needed, power on and test charging with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Huawei P20 Lite 2019?
Yes, if Settings › About phone shows P20 lite (2019). It does not fit the 2018 P20 Lite.
Does it fit the Huawei P20 Lite (2018)?
No. The 2018 P20 Lite (ANE-) is a different phone with a different charging board. This part is for the P20 Lite 2019 only.
Do I need to solder anything?
No. This is a complete board with the port already fitted. It connects with plug-in connectors and screws.
Is it made by Huawei?
No. It is a brand new, OEM-quality charging port board made to fit the Huawei P20 Lite 2019, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Huawei P20 Lite 2019 has to be opened carefully with heat and plastic tools, and the battery must be disconnected before the new part is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
