Rear Camera Module
Huawei P20 Pro Rear Camera Module Replacement
- Fits
- Huawei P20 Pro
- Fixes
- Faulty rear camera
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The Huawei P20 Pro has three rear cameras, each a separate module connected to the main board. A drop or moisture can damage a camera, giving a black preview, failed focus, shaking images or marks that cleaning the glass does not remove.

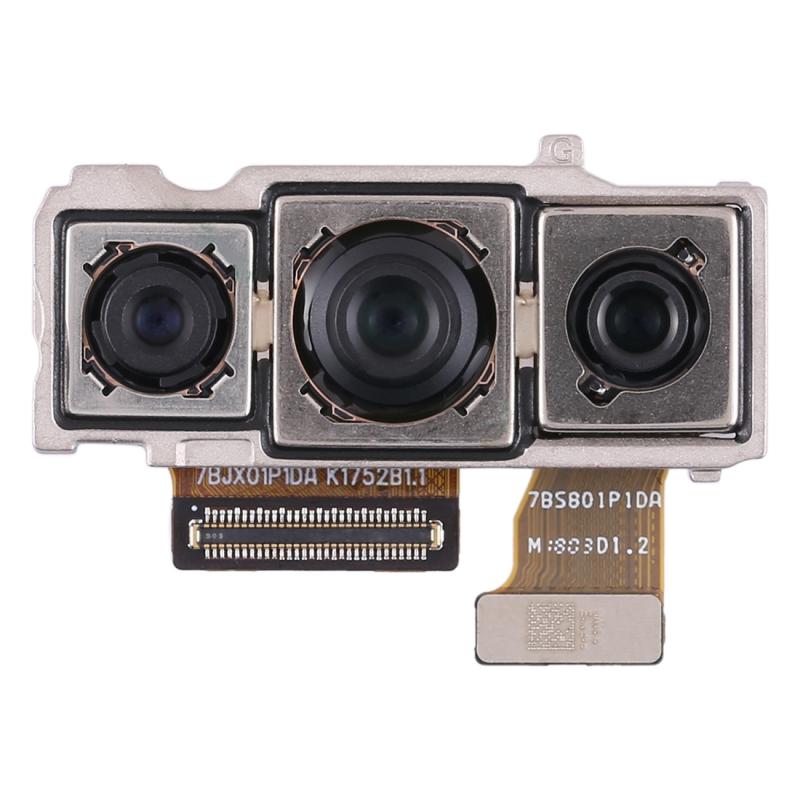

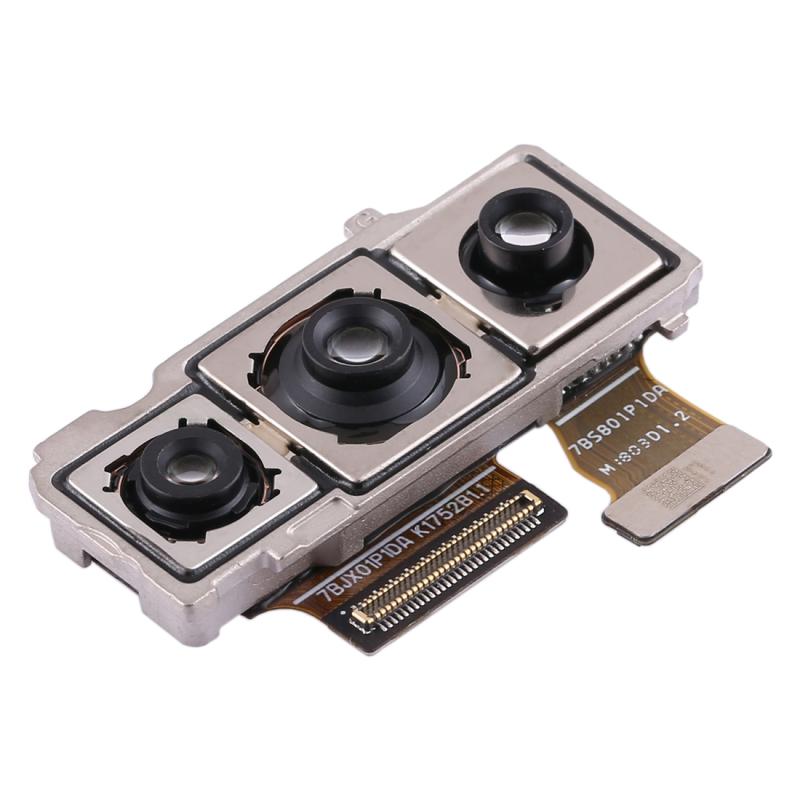

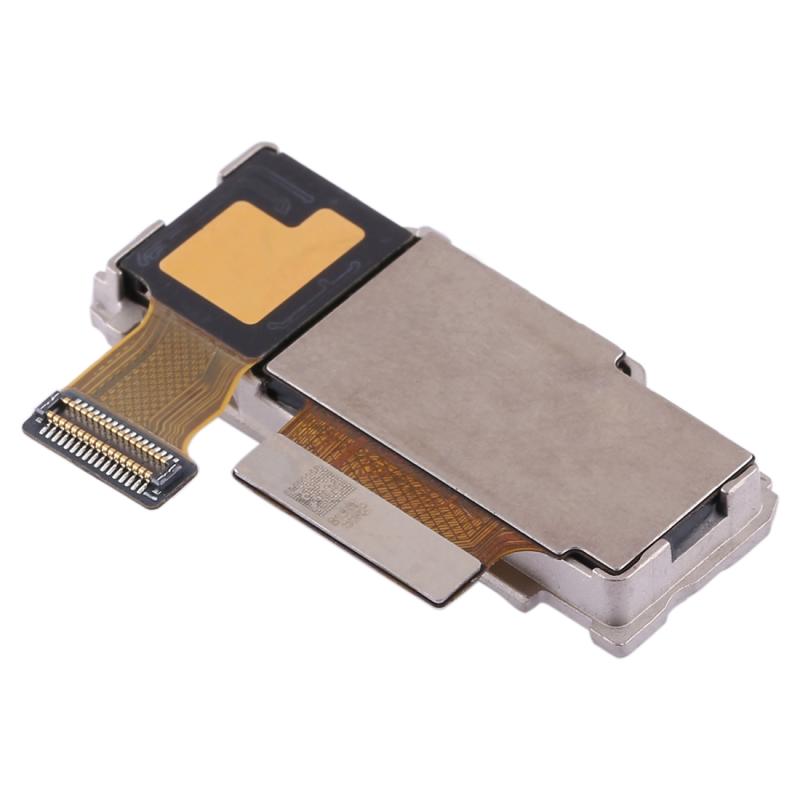

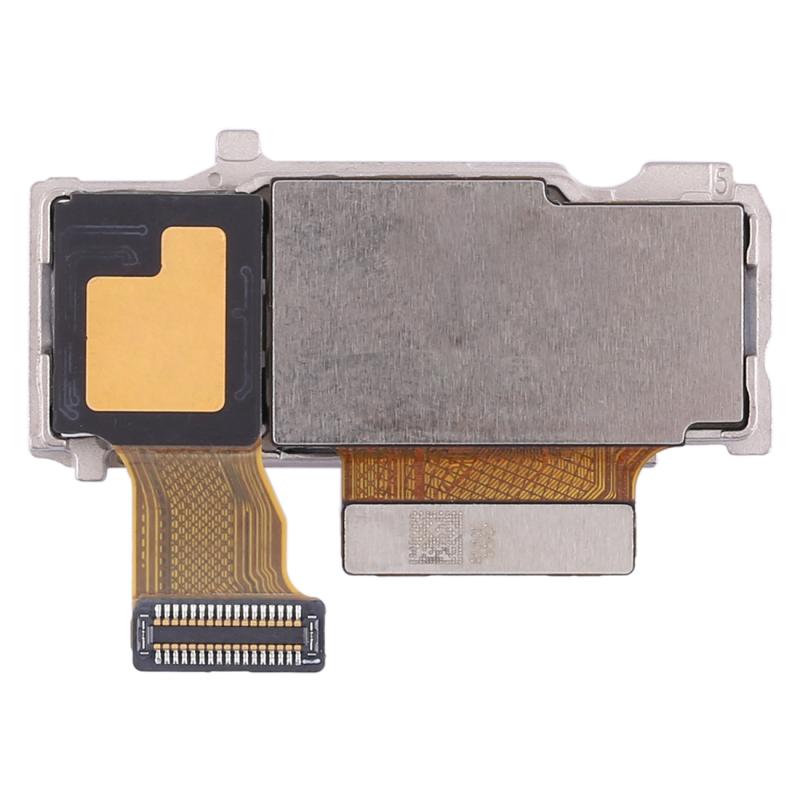

This is the rear camera module shown in the photos. Check the photos against the camera in your phone to make sure it is the one you need. If the outer lens glass is only cracked, a lens cover is the cheaper fix.
Compatibility
Specifications and compatibility
- Part
- Rear Camera Module
- Compatible with
- Huawei P20 Pro
- Model numbers
- CLT-L09 · CLT-L29
- Does not fit
- Huawei P20, P20 Lite, P30 Pro or any other model
- Fixes
- A black camera preview, failed focus, shaking or blurred images and marks inside the camera
- Does not fix
- Cracked lens glass, front camera, software or main board faults
- Quality
- Brand new, OEM-quality rear camera module. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei P20 Pro
- In the box
- 1 × rear camera module for Huawei P20 Pro, as shown in the photos.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The camera app shows a black screen on the rear camera
- The camera will not focus or keeps hunting
- Photos show spots or haze that cleaning the lens does not fix
- The camera app shows an error or closes
How to check your model
Open Settings › About phone. The model should read P20 Pro and the model number should start CLT-.
The P20 Pro has a 6.1-inch screen and three rear cameras. The P20 has two.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back glass edges and lift it off carefully with a thin plastic tool.
- Remove the screws holding the inner covers, then disconnect the battery before anything else.
- Remove the screws and shield covering the camera area.
- Unplug the faulty camera module and lift it out.
- Fit the new camera, press its connector firmly in place and refit the shield.
- Refit the covers and screws, apply new adhesive and close the phone, pressing evenly.
- Reconnect the battery if needed, power on and test every rear camera mode, focus and zoom.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Huawei P20 Pro?
Yes, if your model number is CLT-L09 or CLT-L29. Check it in Settings › About phone.
Does it fit the Huawei P20?
No. The P20 (EML-) is smaller and has a different layout. This part is for the P20 Pro (CLT-) only.
Does this replace all three rear cameras?
No. It is one rear camera module, as shown in the photos. Compare it with your faulty camera before ordering.
Is it made by Huawei?
No. It is a brand new, OEM-quality rear camera module made to fit the Huawei P20 Pro, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Huawei P20 Pro has to be opened carefully with heat and plastic tools, and the battery must be disconnected before the new part is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
