Power and Volume Button Flex Cable
Huawei P30 Lite Power and Volume Button Flex Cable Replacement
- Fits
- Huawei P30 Lite
- Fixes
- Faulty side buttons
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

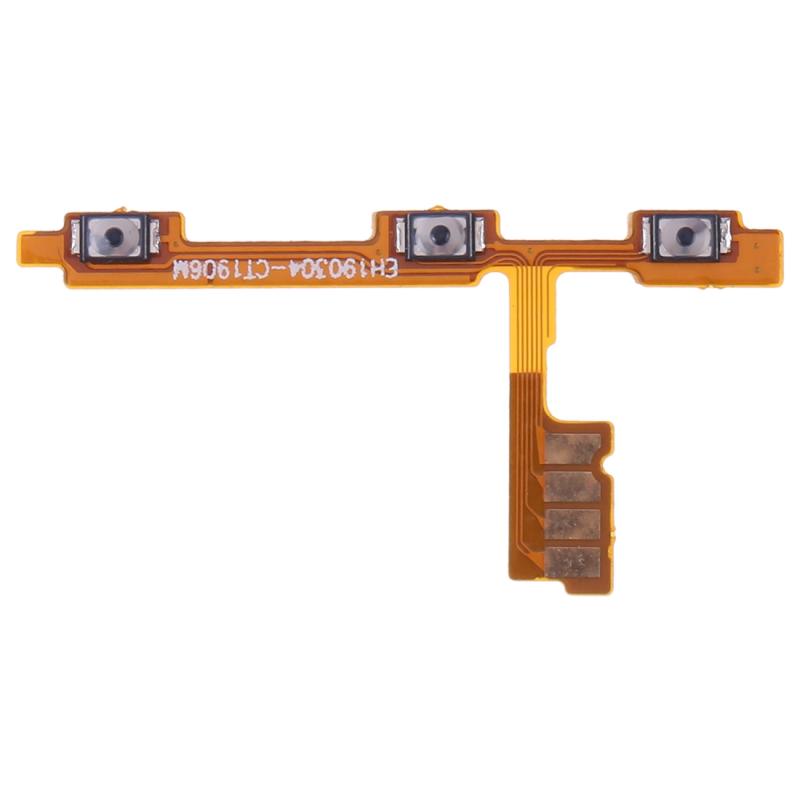

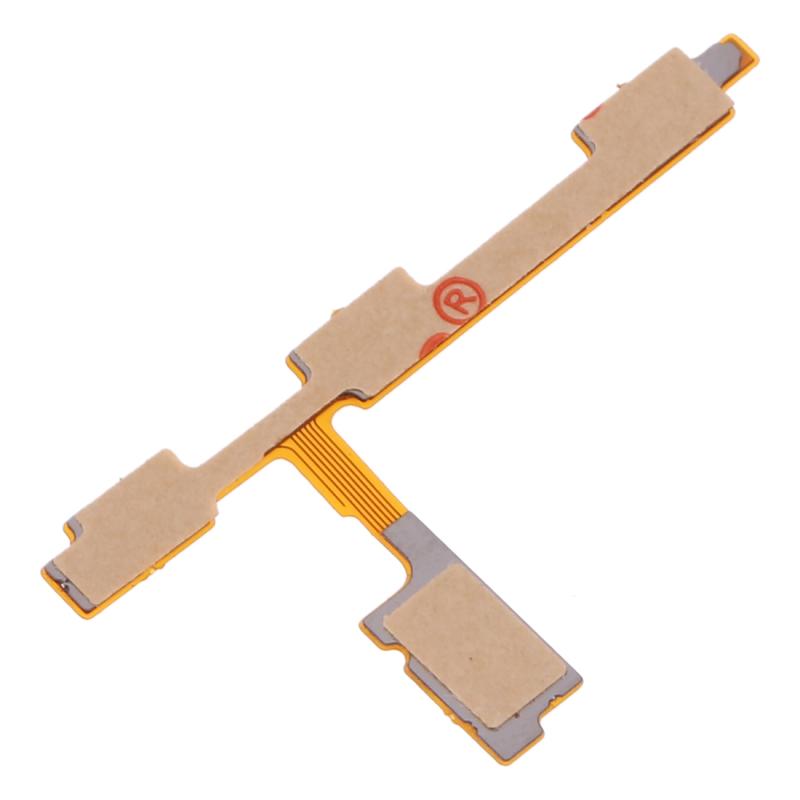

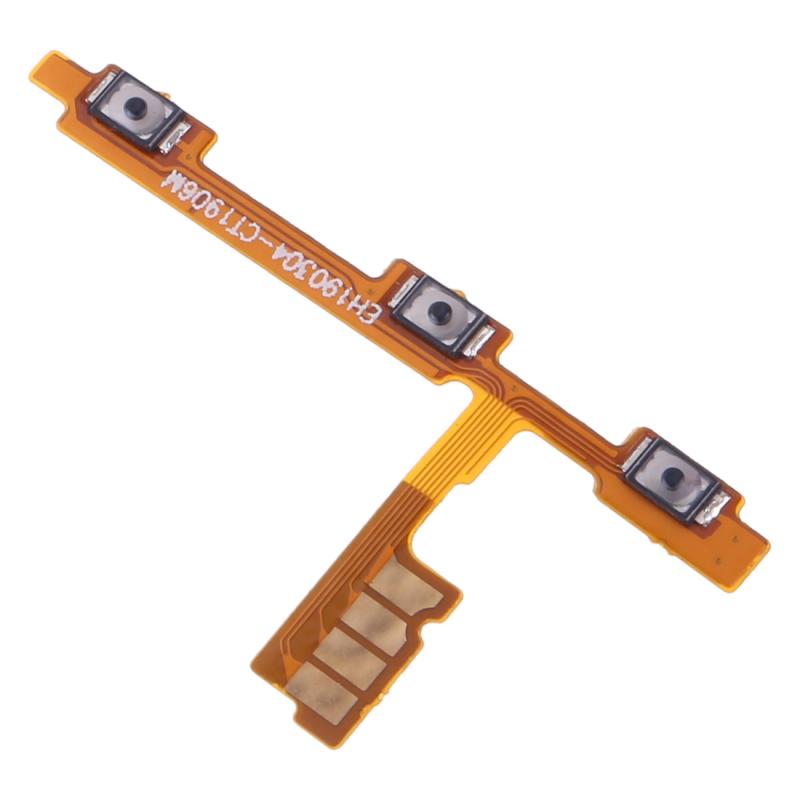

On the Huawei P30 Lite the power and volume keys press against a thin flex cable inside the frame. Drops, heavy use and liquid can break its contacts, so a key clicks but does nothing, or only works when pressed hard.
This flex cable replaces those contacts. The outer keys are reused from your phone. If the phone still does not respond after the flex is replaced, the fault may be in the main board.
Compatibility
Specifications and compatibility
- Part
- Power and Volume Button Flex Cable
- Compatible with
- Huawei P30 Lite
- Model numbers
- MAR-LX1A · MAR-LX1M · MAR-LX1B
- Does not fit
- Huawei P30, P30 Pro, P20 Lite or any other model
- Fixes
- Unresponsive, sticky or self-pressing power and volume keys
- Does not fix
- Missing outer keys, software or main board faults
- Quality
- Brand new, OEM-quality power and volume button flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei P30 Lite
- In the box
- 1 × power and volume button flex cable for Huawei P30 Lite.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The power key does not wake or lock the phone
- Volume keys do not change the volume
- A key only works when pressed hard
- The phone turns on or changes volume by itself
How to check your model
Open Settings › About phone. The model should read P30 Lite and the model number should be MAR-LX1A or MAR-LX1M or MAR-LX1B.
The P30 Lite model number starts MAR-. The P30 starts ELE- and the P30 Pro starts VOG-.
Professional installation
How a technician fits this part
- Power the phone off, remove the SIM tray and warm the back glass evenly to soften the adhesive.
- Lift the back glass with a thin pick, then remove the screws and cover plates over the part.
- Disconnect the battery connector before touching any other part.
- Unplug the old button flex, loosen its adhesive and lift it away from the frame.
- Fit the new flex so its contacts sit behind the keys, then plug it in.
- Reconnect the battery, test every key, then close with new adhesive.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Huawei P30 Lite?
Yes, if Settings › About phone shows P30 Lite with model number MAR-LX1A, MAR-LX1M and MAR-LX1B. It does not fit the P30.
Does it fit the Huawei P30?
No. The P30 is a different phone with a different layout, so its parts do not swap with the P30 Lite. Order the part listed for your exact model.
Is the side fingerprint sensor included?
No. This listing is for the power and volume button flex cable only. Compare it with the photos and your old part before fitting.
Is it made by Huawei?
No. It is a brand new, OEM-quality power and volume button flex cable made to fit the Huawei P30 Lite, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Huawei P30 Lite has a glued glass back that needs heat and care to open, and the battery must be disconnected before the new part is connected.
