Charging Port Board
Huawei P9 Charging Port Board Replacement
- Fits
- Huawei P9
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The charging port on the Huawei P9 wears with daily plugging in, and lint, moisture or a dropped cable can damage the pins. When the port fails, the phone may charge slowly, stop and start, or not charge at all.

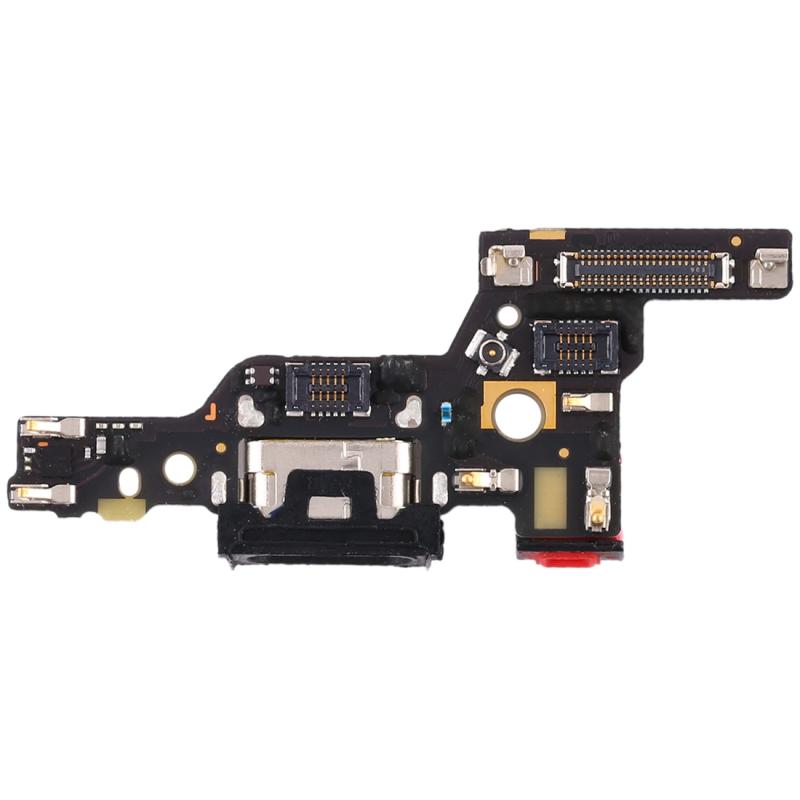

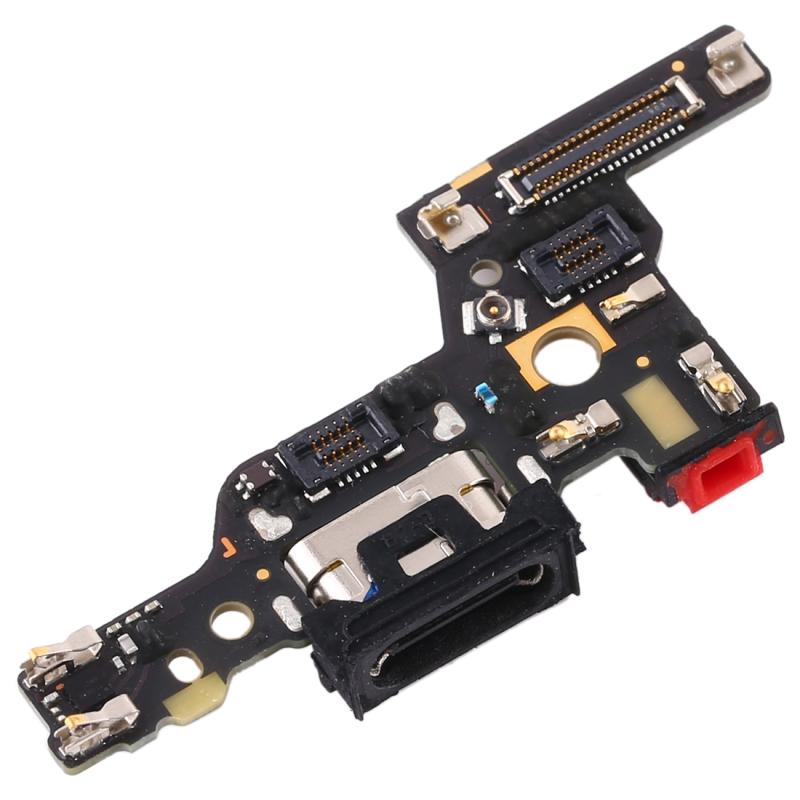

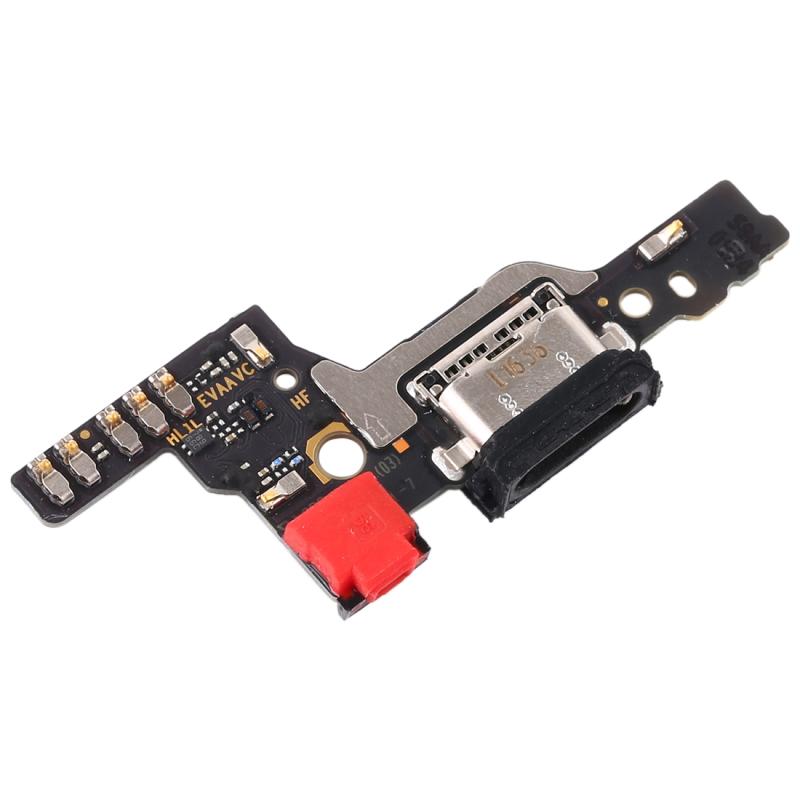

This part is the complete charging port board, with the USB-C socket already fitted. Replacing the whole board is more reliable than repairing a single socket. Before you buy, try a different cable and charger and gently clean the port, as a dirty port can cause the same faults.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Huawei P9
- Model numbers
- EVA-L09 · EVA-L19
- Does not fit
- P9 Lite, P9 Plus or any other model
- Fixes
- A loose, worn or damaged charging socket, slow or intermittent charging, no USB data connection
- Does not fix
- Battery, screen, software or motherboard charging-chip faults
- Quality
- Brand new, OEM-quality charging port board for the Huawei P9. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei P9
- In the box
- 1 × charging port board.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone does not charge, or charges only when the cable is held at an angle
- Charging stops and starts on its own
- The cable feels loose in the socket
- A computer does not recognise the phone over USB
How to check your model
Open Settings › About phone. The model name should read P9 and the model number EVA-L09 or EVA-L19, not P9 Lite.
The P9 has a 5.2-inch screen and two rear cameras with Leica branding. The P9 Lite has a single rear camera and the P9 Plus has a larger 5.5-inch screen.
Professional installation
How a technician fits this part
- Power the P9 off and remove the SIM tray.
- Open the phone using the correct method for this model, warming any glued panel to soften the adhesive.
- Disconnect the battery before touching any other connector.
- Unscrew and lift out the old charging port board, noting the routing of any cables.
- Fit the new board, reconnect everything and test charging and USB data before closing.
- Close the phone, sealing any glued panel with new adhesive, and run a final check.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my P9?
Yes, if Settings › About phone shows P9 (model EVA-L09 or EVA-L19). It does not fit the P9 Lite.
Does it fit the P9 Lite?
No. The P9 Lite is a different phone with different internal parts. Check Settings › About phone before ordering.
Which connector does it have?
It has a USB-C socket, the same type the Huawei P9 uses. It comes as a complete board, so no soldering is needed.
Is it made by Huawei?
No. It is a brand new, OEM-quality part made to fit the Huawei P9, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The P9 has to be opened and the battery disconnected safely to reach the charging board.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
