Charging Port Board
Huawei Y9 2019 Charging Port Board Replacement
- Fits
- Huawei Y9 2019
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

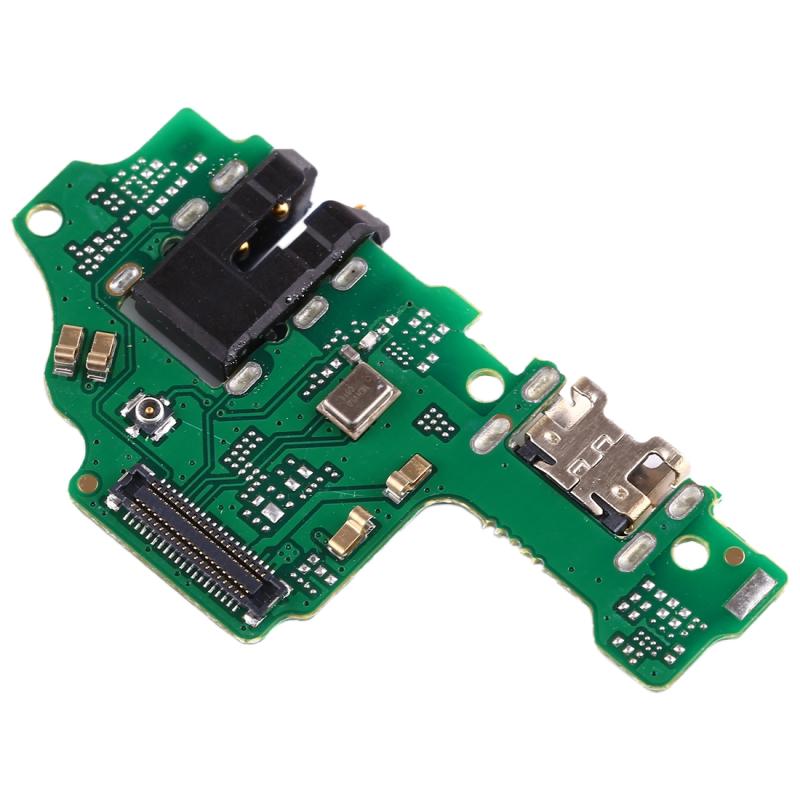

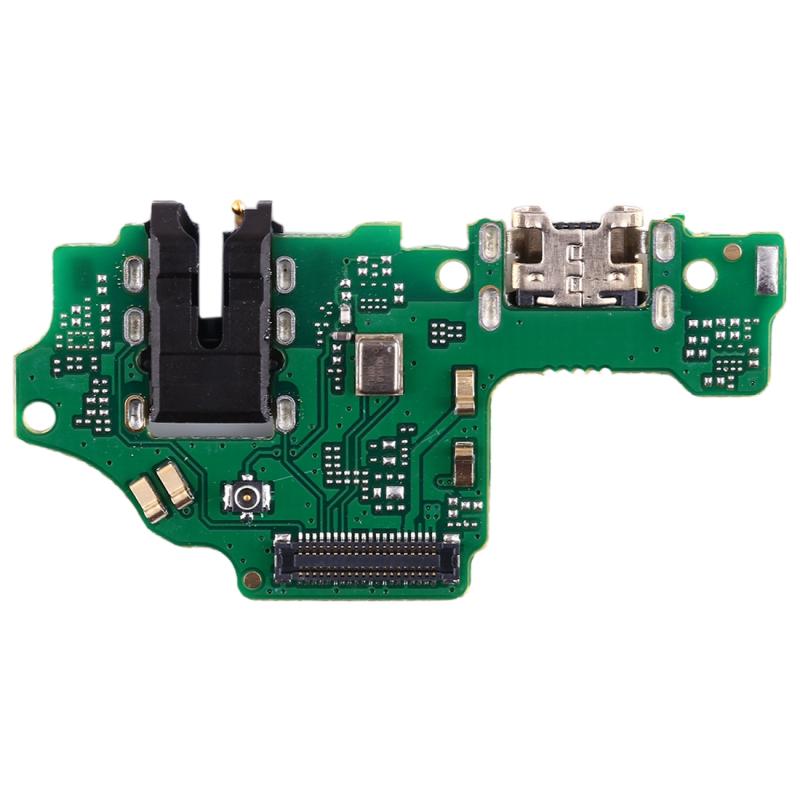

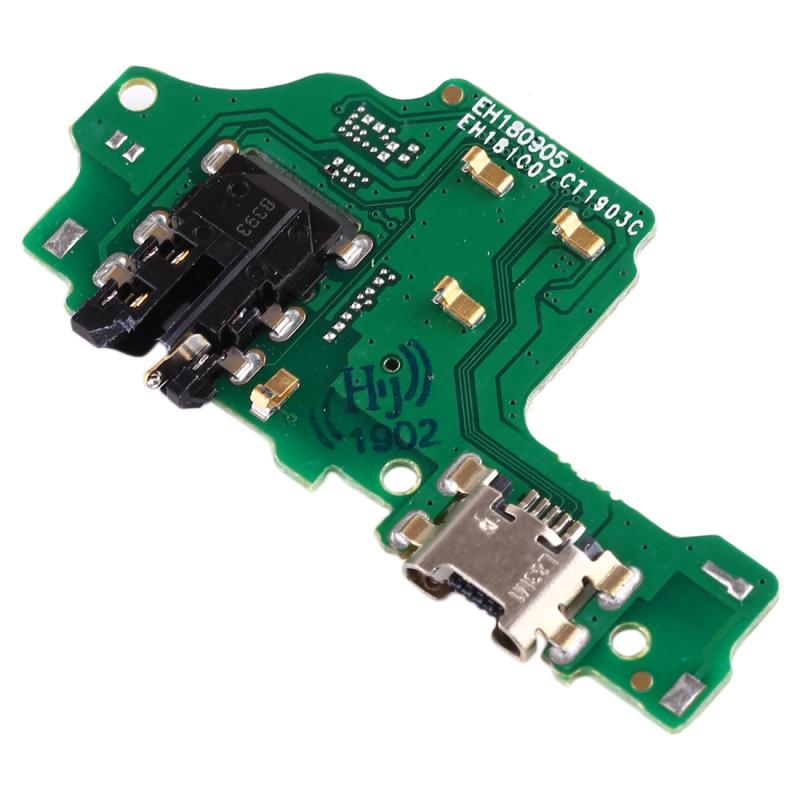

On the Huawei Y9 2019 the charging port sits on a small sub-board at the bottom of the phone, joined to the main board by a flex cable. Daily plugging in, pocket lint and drops wear the port out, and the phone stops charging reliably.
This is the complete charging port board, so the whole board is swapped as one part and the port itself does not need soldering. If the phone still does not charge with a new board and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Huawei Y9 2019
- Model numbers
- JKM-LX1 · JKM-LX2 · JKM-LX3
- Does not fit
- Huawei Y9 2018, Y9 Prime 2019 or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei Y9 2019
- In the box
- 1 × charging port board for Huawei Y9 2019.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About phone. The model should start JKM-.
The Y9 Prime 2019 (STK models) has a pop-up selfie camera and uses a different charging board.
Professional installation
How a technician fits this part
- Power the Huawei Y9 2019 off and remove the SIM tray.
- Warm the back cover edges gently and lift it off with a plastic opening tool.
- Remove the screws holding the lower cover and disconnect the battery connector first.
- Unplug the main flex cable from the old charging port board and lift the board out.
- Fit the new board, reconnect the flex cable and refit the lower cover and screws.
- Reconnect the battery, refit the back cover, power on and test charging with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Huawei Y9 2019?
Yes, if Settings › About phone shows a model starting JKM- (JKM-LX1, JKM-LX2 or JKM-LX3). It also fits the Enjoy 9 Plus.
Does it fit the Huawei Y9 Prime 2019?
No. The Y9 Prime 2019 (STK models) is a different phone with a different charging board.
Do I need to solder anything?
No. This is a complete board with the port already fitted. It connects with a flex cable and screws.
Is it made by Huawei?
No. It is a brand new, OEM-quality part made to fit the Huawei Y9 2019, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Huawei Y9 2019 back cover is glued, and the battery must be disconnected before the new board is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
