Charging Port Board
Huawei Y9a Charging Port Board Replacement
- Fits
- Huawei Y9a
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

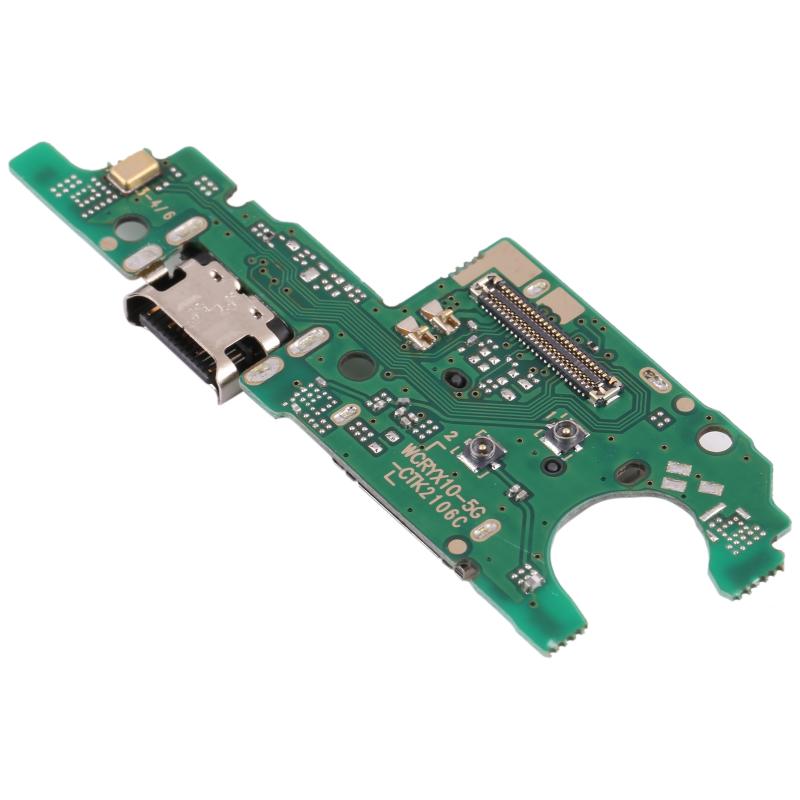

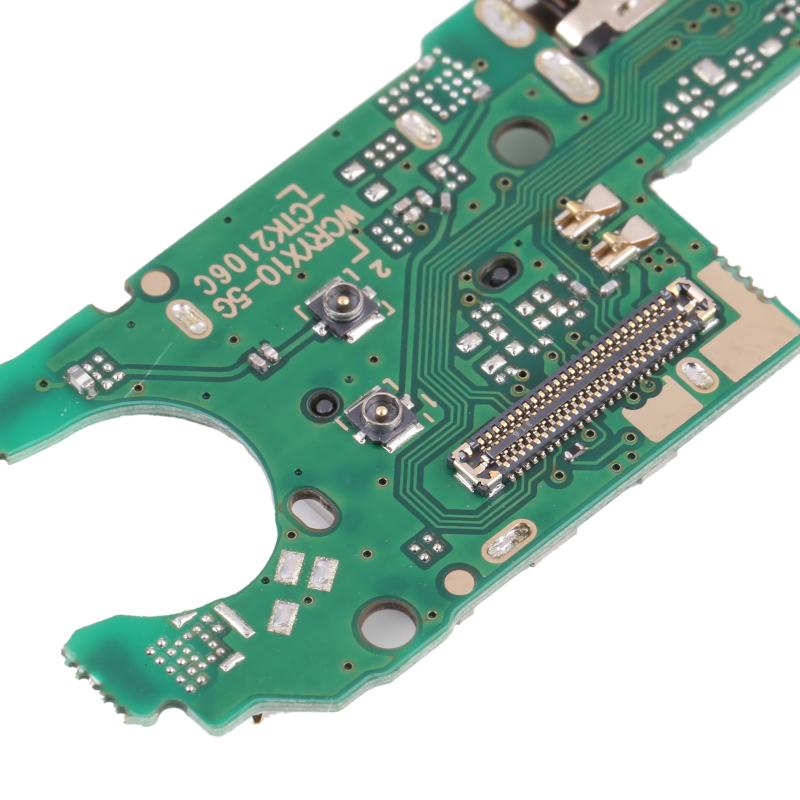

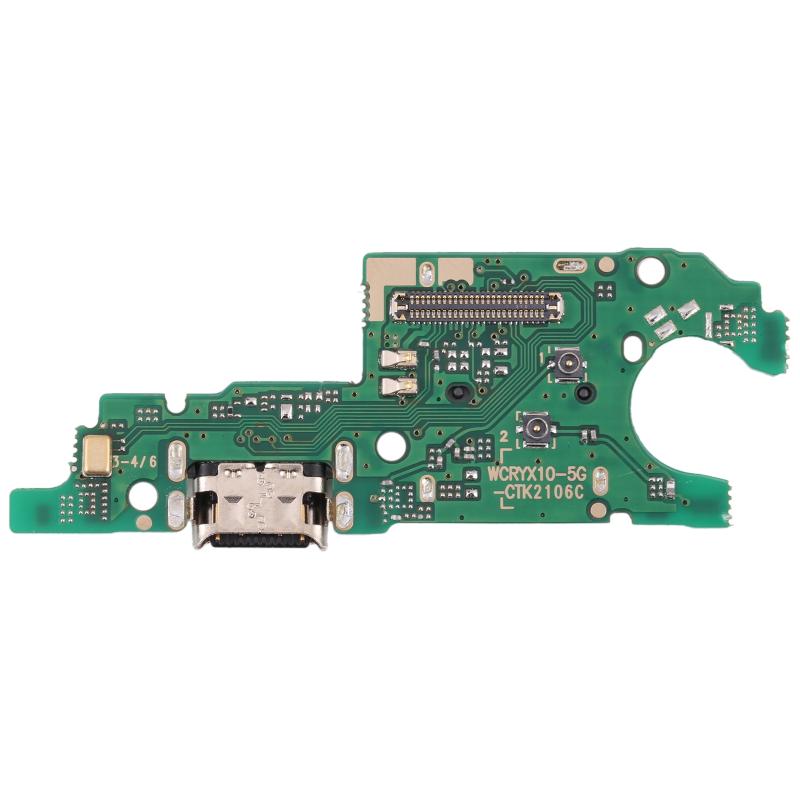

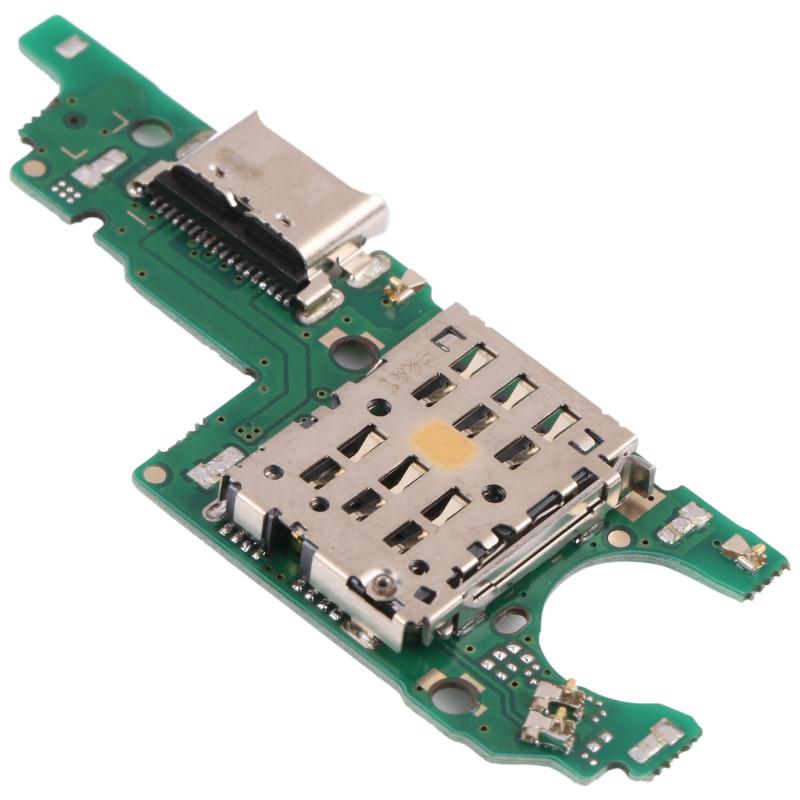

On the Huawei Y9a the charging port sits on a small sub-board at the bottom of the phone, joined to the main board by a flex cable. Daily plugging in, pocket lint and drops wear the port out, and the phone stops charging reliably.
This is the complete charging port board, so the whole board is swapped as one part and the port itself does not need soldering. If the phone still does not charge with a new board and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Huawei Y9a
- Model numbers
- FRL-L22 · FRL-L23
- Does not fit
- Huawei Y9 2019, Y9s, Y9 Prime 2019 or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Huawei Y9a
- In the box
- 1 × charging port board for Huawei Y9a.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About phone. The model should read FRL-L22 or FRL-L23.
The Y9a has a pop-up selfie camera and a USB-C port. The Y9s and Y9 2019 are different phones.
Professional installation
How a technician fits this part
- Power the Huawei Y9a off and remove the SIM tray.
- Warm the back cover edges gently and lift it off with a plastic opening tool.
- Remove the screws holding the lower cover and disconnect the battery connector first.
- Unplug the flex cables from the old charging port board and lift it out.
- Fit the new board, reconnect the flex cables and refit the lower cover and screws.
- Reconnect the battery, refit the back cover, power on and test charging with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Huawei Y9a?
Yes, if Settings › About phone shows model FRL-L22 or FRL-L23.
Does it fit the Huawei Y9s?
No. The Y9s is a different phone with a different charging board. This part is for the Y9a only.
Which charging port does it have?
USB-C, the same as the Y9a. The port comes already fitted to the board, so no soldering is needed.
Is it made by Huawei?
No. It is a brand new, OEM-quality part made to fit the Huawei Y9a, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Huawei Y9a back cover is glued, and the battery must be disconnected before the new board is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
