Charging Port Flex Cable

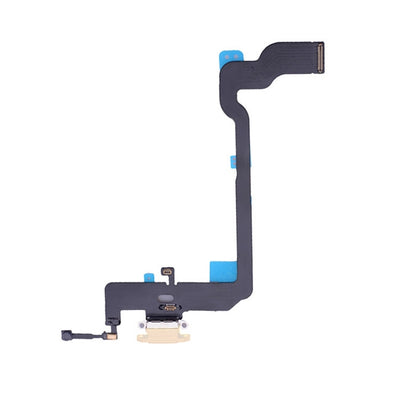

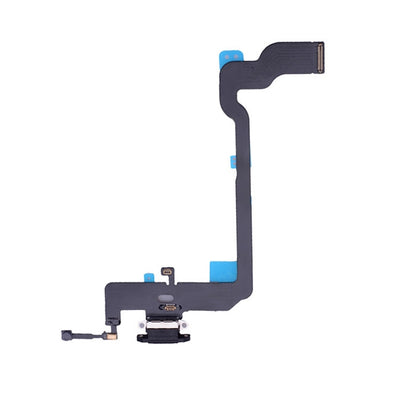

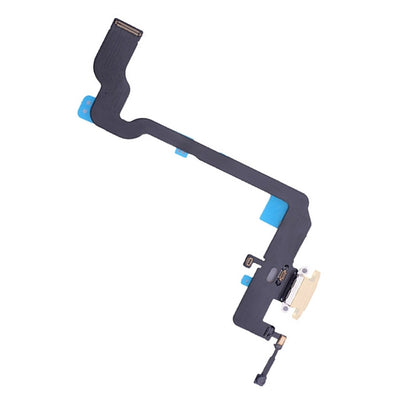

iPhone XS Charging Port Flex Cable Replacement
- Fits
- iPhone XS
- Fixes
- Charging and sync faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The iPhone XS charges and syncs through a Lightning port built into a long flex cable that runs along the bottom of the phone. Worn pins, bent contacts or liquid damage can stop the phone charging reliably, even with a good cable.
Before you buy, clean the port gently with a wooden or plastic pick and try a different cable and plug. If charging still drops in and out, this brand new charging port flex made to fit the iPhone XS is the usual fix.
Compatibility
Specifications and compatibility
- Part
- Charging Port Flex Cable
- Compatible with
- iPhone XS
- Model numbers
- A1920 · A2097 · A2098 · A2099 · A2100
- Does not fit
- iPhone X, iPhone XS Max, iPhone XR or any other model
- Fixes
- A loose or worn Lightning port, charging only at an angle, or failed data sync
- Does not fix
- Battery wear, a faulty charger or cable, or charging chip faults on the main board
- Quality
- Brand new, OEM-quality charging port flex cable for the iPhone XS. Tested before dispatch.
- Brand
- Unbranded, compatible with iPhone XS
- In the box
- 1 × charging port flex cable. Check the photos for anything else included.
- Colour
- Choose Gold, White or Black to match your phone. The colour is the small trim around the port.
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone only charges when the cable is held at an angle
- Charging keeps starting and stopping
- A computer does not see the phone over a cable
- The cable feels loose or falls out of the port
How to check your model
Open Settings › General › About and check the model name reads iPhone XS. Tap the model number to see the A-number. It should be one of A1920, A2097, A2098, A2099, A2100.
The iPhone XS has a 5.8-inch OLED screen and two rear cameras. The iPhone XS Max is larger, with a 6.5-inch screen.
Professional installation
How a technician fits this part
- Power the phone off and remove the pentalobe screws next to the port.
- Warm the screen edges, open the iPhone XS from the display side and disconnect the battery.
- Remove the logic board, loudspeaker and Taptic Engine to reach the charging port flex.
- Carefully peel the old flex from the frame and fit the new one in the same position.
- Refit the parts, reconnect the battery and test charging and data sync.
- Apply new display adhesive and close the phone.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my iPhone XS?
Yes, if Settings › General › About shows iPhone XS. It fits models A1920, A2097, A2098, A2099, A2100.
Does it fit the iPhone XS Max?
No. The iPhone XS Max uses a different charging port flex. Only buy this for the iPhone XS.
Will it fix slow charging?
It fixes charging faults caused by a worn or damaged port. If the port is fine and the battery is worn, a new battery is the better fix.
Is it made by Apple?
No. It is a brand new, OEM-quality charging port flex made to fit the iPhone XS, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The flex sits under several other parts and is glued to the frame, so it needs care to fit without damage.
