Charging Port Board
Lenovo Tab K9 Charging Port Board Replacement
- Fits
- Lenovo Tab K9
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the Lenovo Tab K9 the charging port sits on a small sub-board at the bottom of the tablet, joined to the main board by a flex cable. Daily plugging in, pocket lint and drops wear the port out, and the tablet stops charging reliably.

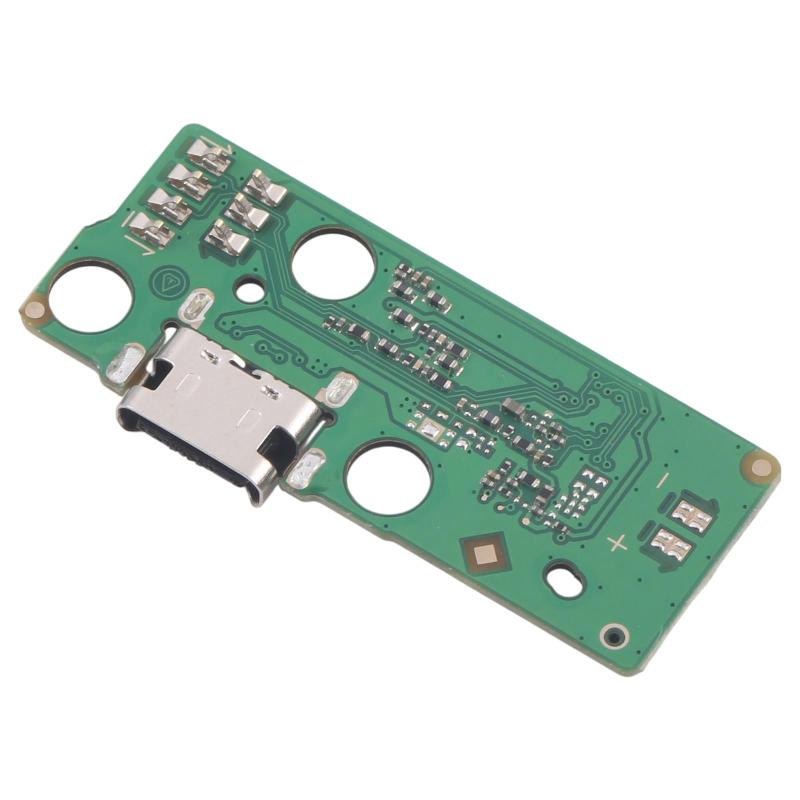

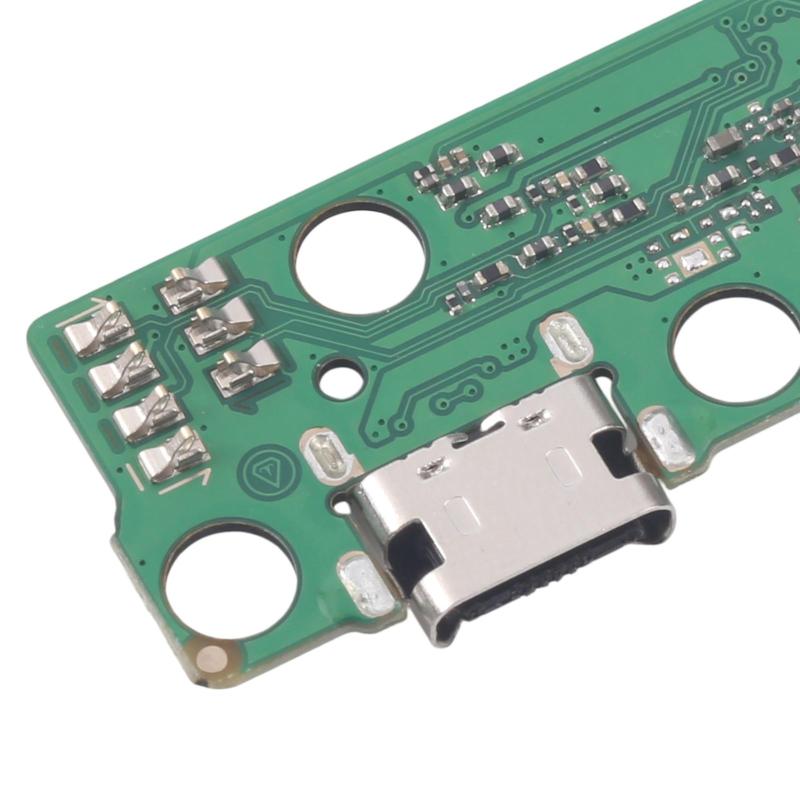

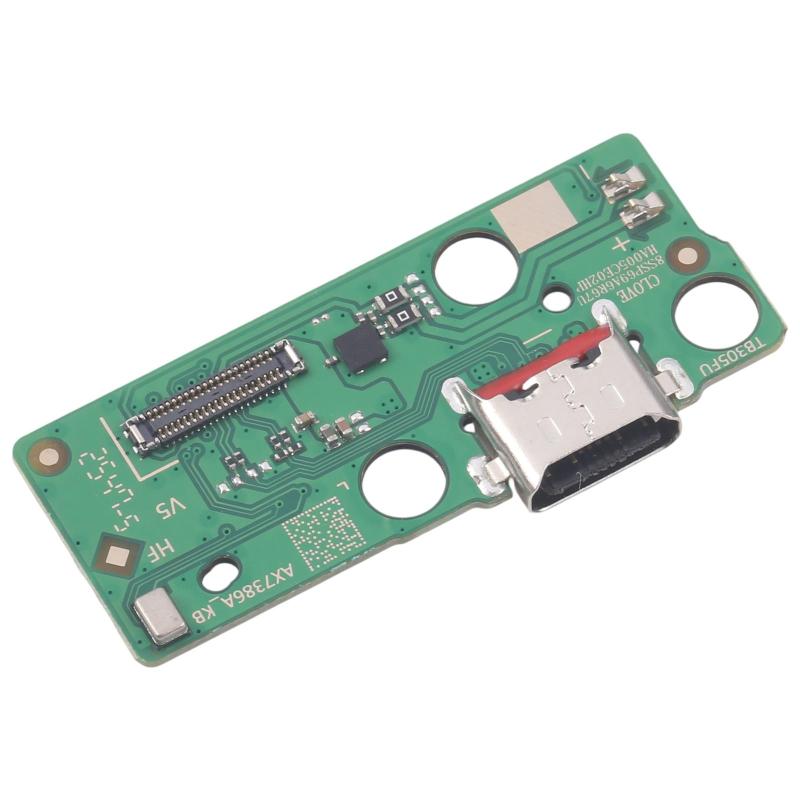

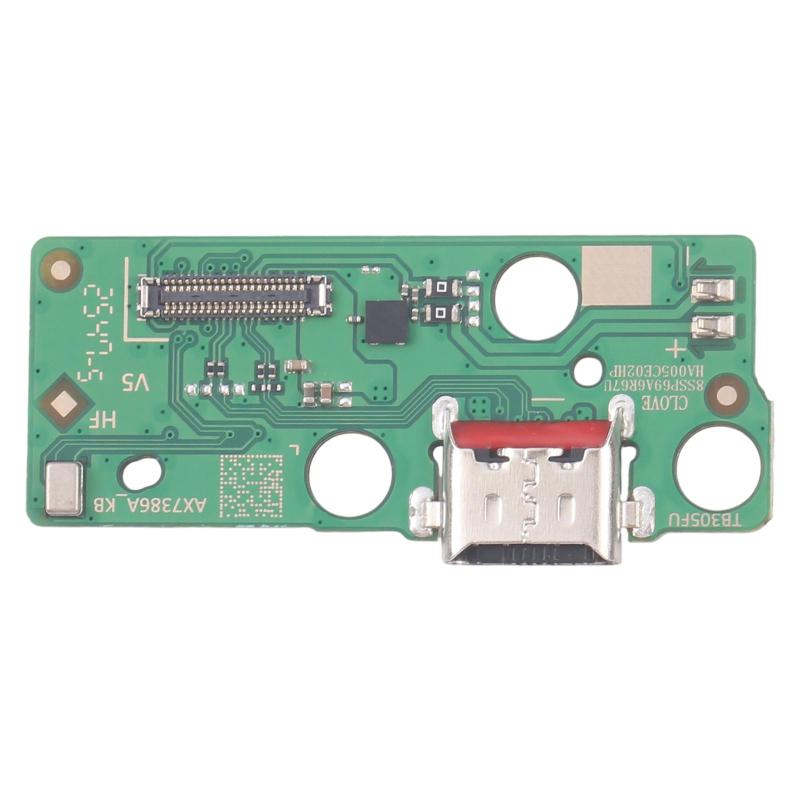

This is the complete charging port board, so the whole board is swapped as one part and the port itself does not need soldering. If the tablet still does not charge with a new board and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Lenovo Tab K9
- Model numbers
- TB-305FU · TB-305XU
- Does not fit
- Lenovo Tab M9, Tab M8 or Tab K10 or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Lenovo Tab K9
- In the box
- 1 × charging port board for Lenovo Tab K9.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The tablet is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About tablet. The model should read TB-305FU or TB-305XU.
The model number is also printed on the back of the tablet or on the box. Lenovo uses many similar tablet names, so check the code before ordering.
Professional installation
How a technician fits this part
- Power the Lenovo Tab K9 off and remove the SIM or memory card tray.
- Release the back cover clips with a plastic opening tool, working slowly around the edge.
- Disconnect the battery connector before touching any other part.
- Unplug the flex cable from the old charging port board, remove its screws and lift it out.
- Fit the new board, reconnect the flex cable and secure the screws.
- Refit the back cover, power on and test charging with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Lenovo Tab K9?
Yes, if the model is TB-305FU or TB-305XU. It also fits the Lenovo Tab One with the same model codes.
Does it fit the Lenovo Tab M9?
No. The Tab M9 (TB-310) has a different charging board. We sell that board separately.
Do I need to solder anything?
No. This is a complete board with the port already fitted. It connects with a flex cable and screws.
Is it made by Lenovo?
No. It is a brand new, OEM-quality part made to fit the Lenovo Tab K9, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. Tablet back covers are held by many small clips, and the battery must be disconnected before the new board is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
