Charging Port Board
Lenovo Tab M11 Charging Port Board Replacement
- Fits
- Lenovo Tab M11
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the Lenovo Tab M11 the charging port sits on a small sub-board at the bottom of the tablet, joined to the main board by a flex cable. Daily plugging in, pocket lint and drops wear the port out, and the tablet stops charging reliably.

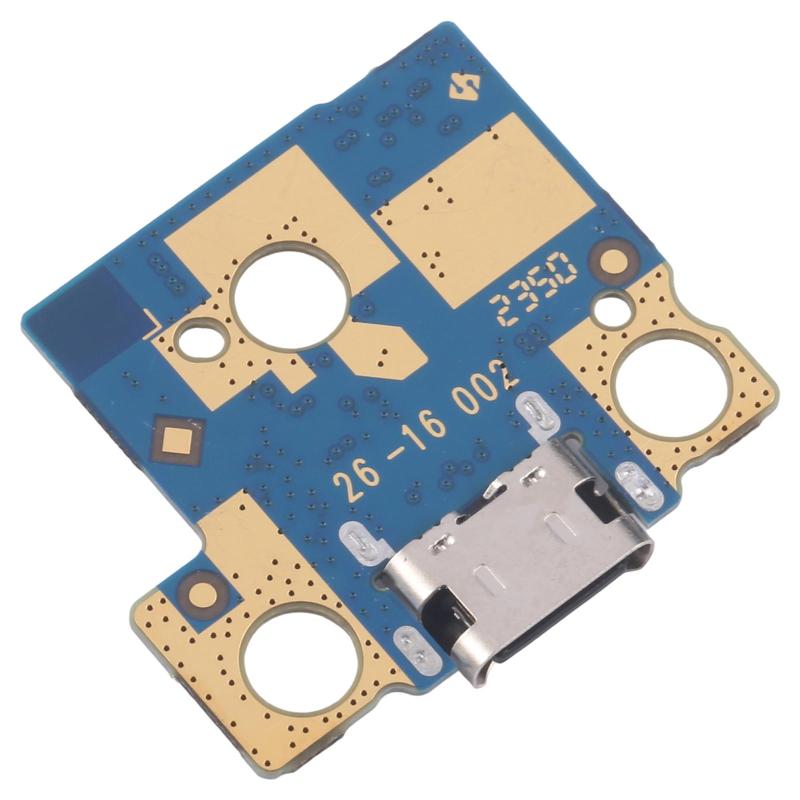

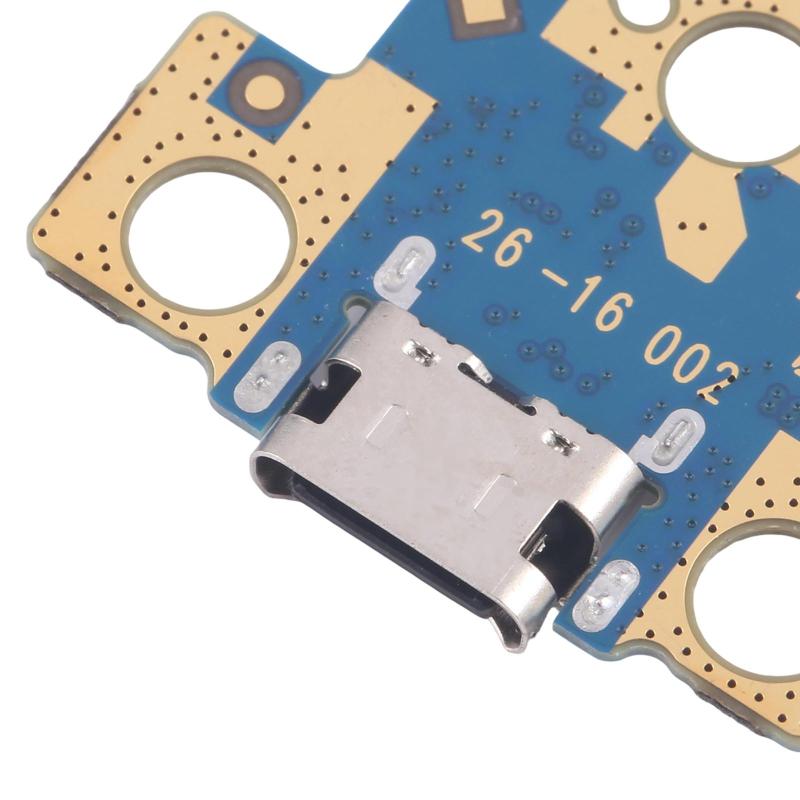

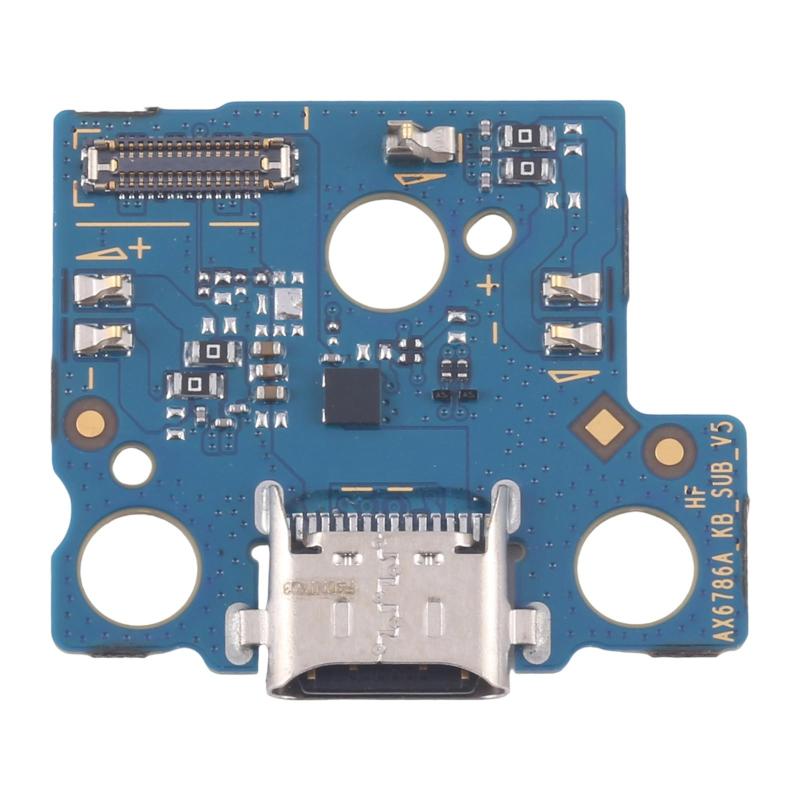

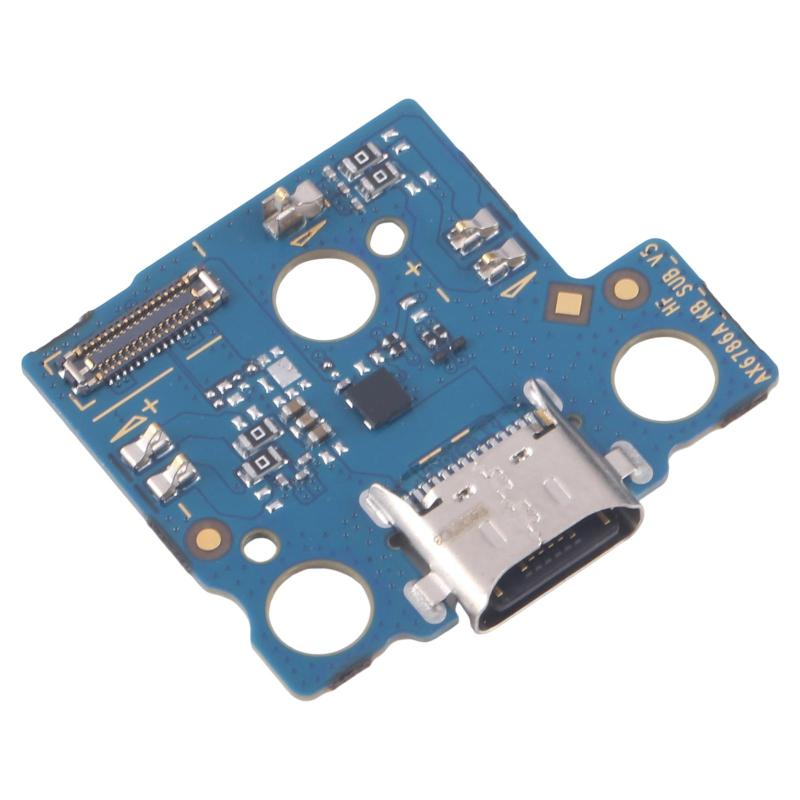

This is the complete charging port board, so the whole board is swapped as one part. This is the soldered version of the board, so it has to be soldered to its connection points, which needs a soldering iron and some skill. If the tablet still does not charge with a new board and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Lenovo Tab M11
- Model numbers
- TB330FU
- Does not fit
- Lenovo Tab M10, Tab M10 Plus or Tab P11 or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Lenovo Tab M11
- In the box
- 1 × charging port board for Lenovo Tab M11.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The tablet is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About tablet. The model should read TB330FU.
The model number is also printed on the back of the tablet or on the box. Lenovo uses many similar tablet names, so check the code before ordering.
Professional installation
How a technician fits this part
- Power the Lenovo Tab M11 off and remove the card tray.
- Release the back cover clips with a plastic opening tool, working slowly around the edge.
- Disconnect the battery connector before touching any other part.
- Remove the old charging port board, desoldering its connection points where needed.
- Place the new board, solder its connection points neatly and check for bridges.
- Reconnect the battery, refit the back cover, power on and test charging with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Lenovo Tab M11?
Yes, if the model is TB330FU.
Does it fit the Lenovo Tab M10 Plus?
No. The Tab M10 Plus is a different tablet with a different charging board.
Do I need to solder it?
Yes. This is the soldered version of the board, so it has to be soldered in place. It is best fitted by a repair shop.
Is it made by Lenovo?
No. It is a brand new, OEM-quality part made to fit the Lenovo Tab M11, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. This board needs soldering, and the battery must be disconnected before any work is done.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
