Charging Port Board
Motorola Moto E5 Charging Port Board Replacement
- Fits
- Motorola Moto E5
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

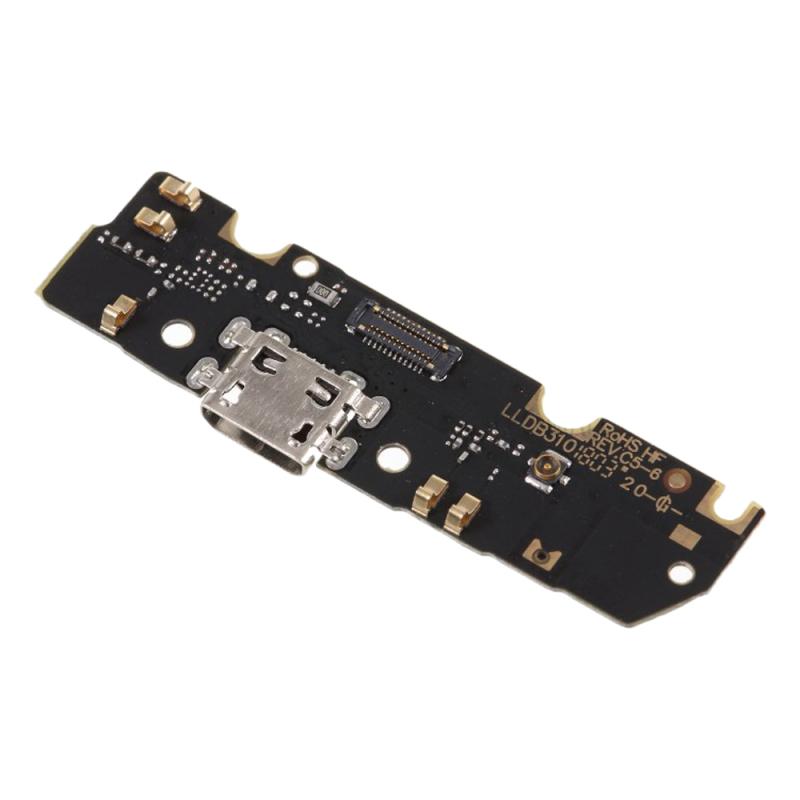

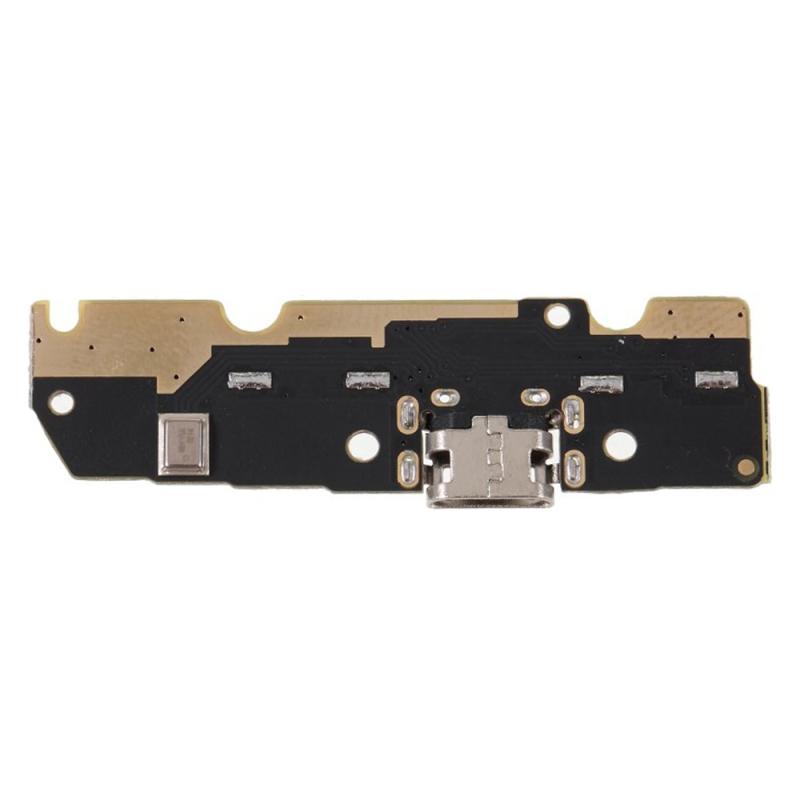

On the Motorola Moto E5 the micro-USB charging port sits on a small board at the bottom of the phone, joined to the main board by a flex cable. Daily plugging in, pocket lint and drops wear the port out, and the phone stops charging reliably.
This is the complete charging port board, so no soldering is needed. The board is swapped as one part. If the phone still does not charge with a new board and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Motorola Moto E5
- Model numbers
- Check Settings › About phone
- Does not fit
- Moto E5 Play, Moto E5 Plus, Moto E4 or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality micro-USB charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Motorola Moto E5
- In the box
- 1 × charging port board for Motorola Moto E5.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About phone and check the model name reads Moto E5, not Moto E5 Play. The model code is also shown there and on the box. Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Power the Moto E5 off and remove the SIM tray.
- Warm the back cover if it is glued, then lift it with a plastic opening tool.
- Remove the screws holding the inner cover and disconnect the battery before touching any other part.
- Unplug the flex cable and any antenna cable, then remove the old charging port board.
- Fit the new board, reconnect its cables and refit the screws and covers.
- Power on and test charging and USB data with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Moto E5?
Yes, if Settings › About phone shows Moto E5. It does not fit the Moto E5 Play, Moto E5 Plus or Moto E4.
Does it fit the Moto E5 Play?
No. The Moto E5 Play is a different phone and uses different parts. Check the model name in Settings › About phone before you order.
Do I need to solder anything?
No. This is a complete board with the port already fitted. It connects with a flex cable and screws.
Is it made by Motorola?
No. It is a brand new, OEM-quality charging port board made to fit the Motorola Moto E5, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Moto E5 has to be opened carefully with plastic tools, and the battery must be disconnected before the new board is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
