Loudspeaker
OnePlus 10R Loudspeaker Replacement
- Fits
- OnePlus 10R
- Fixes
- No or distorted sound
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

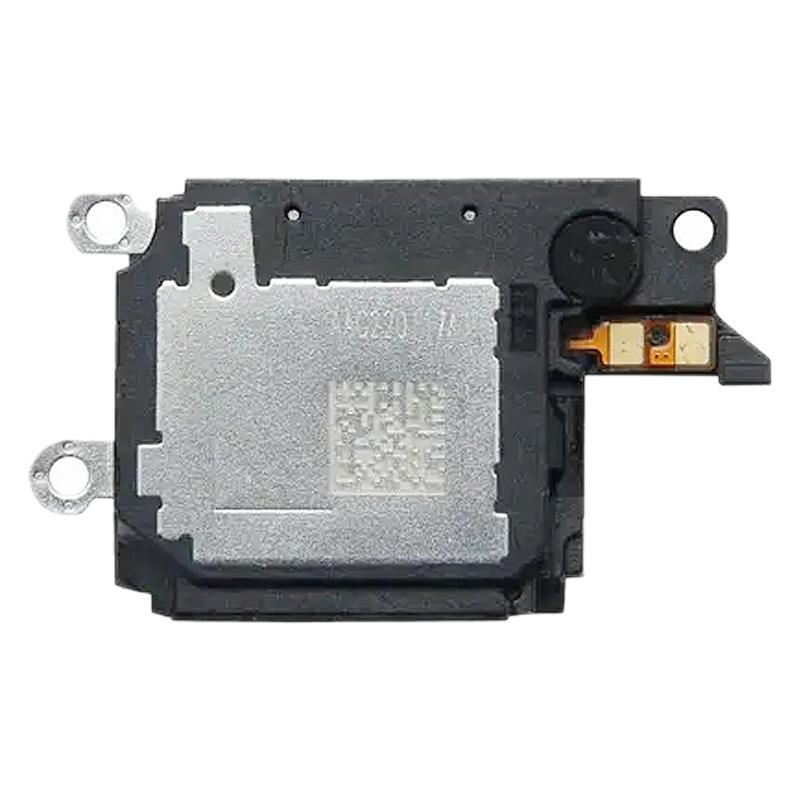

The OnePlus 10R loudspeaker sits at the bottom of the phone, next to the charging port. It plays ringtones, alerts, music, video sound and speakerphone calls. Water, dust and drops can damage it, so the sound becomes quiet, crackles or stops completely.
This is the complete loudspeaker unit. It is held in place with screws and connects without soldering. If there is still no sound after fitting, check the software settings and the charging port board.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- OnePlus 10R
- Model numbers
- CPH2411
- Does not fit
- OnePlus 10T, 10 Pro or any other model
- Fixes
- Silent, quiet, crackling or distorted ringtones, media sound and speakerphone
- Does not fix
- The earpiece speaker used for normal calls, microphone or charging faults
- Quality
- Brand new, OEM-quality loudspeaker. Tested before dispatch.
- Brand
- Unbranded, compatible with OnePlus 10R
- In the box
- 1 × loudspeaker for OnePlus 10R.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- Ringtones and alerts are silent or very quiet
- Music and video sound crackles or buzzes
- Speakerphone does not work but the earpiece does
- Sound stopped after the phone got wet or was dropped
How to check your model
Open Settings › About device. The device name should read OnePlus 10R and the model number should be CPH2411.
The 10R was sold in 80W and 150W charging versions. This part is listed for model CPH2411, so check your model number before ordering.
Professional installation
How a technician fits this part
- Power the OnePlus 10R off and remove the SIM tray.
- Open the back cover carefully with a plastic pick, working around the edges.
- Remove the screws and inner cover, then disconnect the battery before touching any other part.
- Remove the screws holding the loudspeaker at the bottom of the phone.
- Lift out the old loudspeaker and fit the new one in the same position.
- Refit the screws and covers, then reconnect the battery.
- Power on and test ringtones, media sound and speakerphone.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my OnePlus 10R?
Yes, if Settings shows OnePlus 10R. It is listed for model CPH2411. It does not fit the OnePlus 10T.
Does it fit the OnePlus 10T?
No. The 10T is a different phone with a different internal layout. This part is for the 10R only.
Will it fix sound on normal calls?
No. Normal calls use the earpiece speaker at the top. This loudspeaker is for ringtones, media and speakerphone.
Is it made by OnePlus?
No. It is a brand new, OEM-quality loudspeaker made to fit the OnePlus 10R, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The OnePlus 10R has to be opened carefully and plastic tools, and the battery must be disconnected before the new part is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
