Charging Port Flex Cable

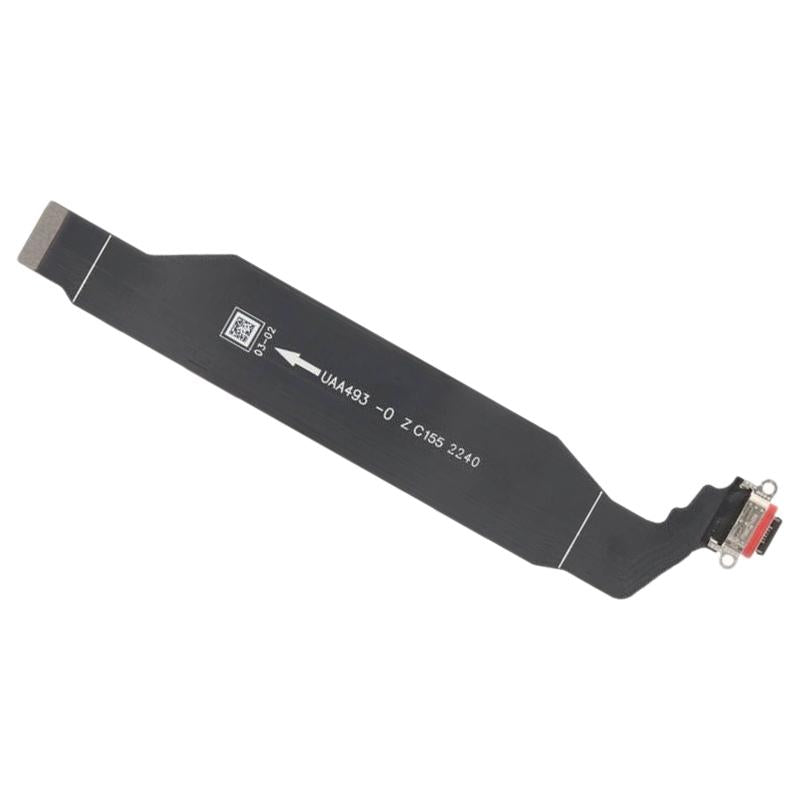

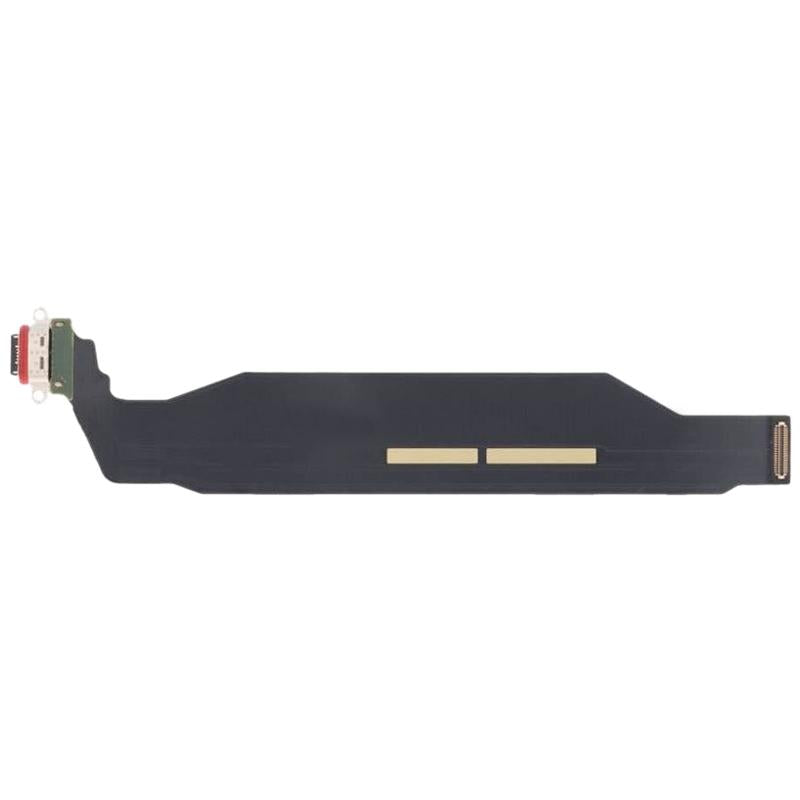

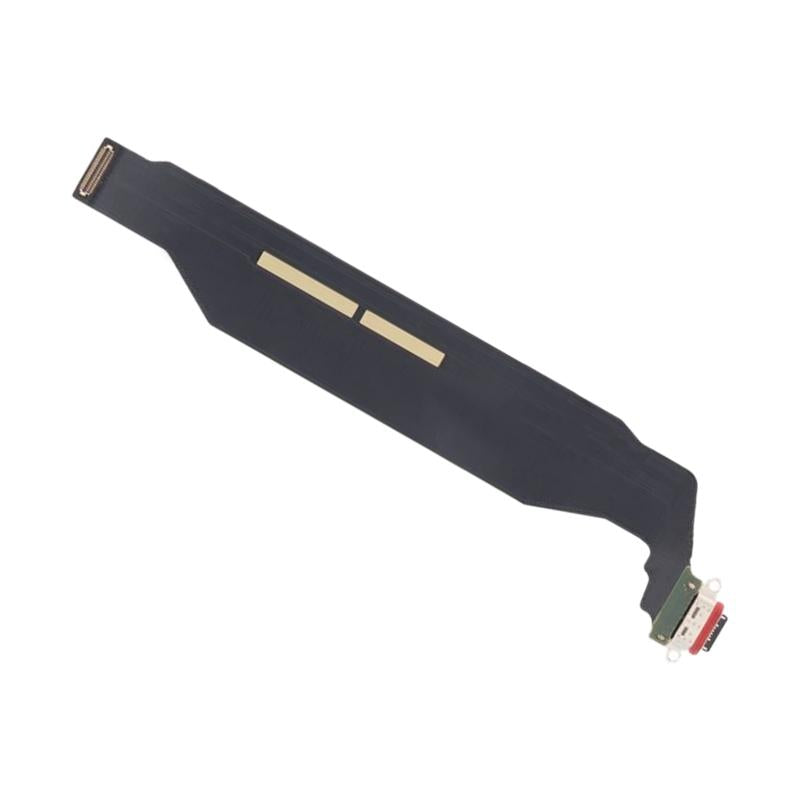

OnePlus 10T Charging Port Flex Cable Replacement
- Fits
- OnePlus 10T
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the OnePlus 10T the USB-C charging port sits at the bottom of the phone and is joined to the main board by a flex cable. Daily plugging in, pocket lint and drops wear the port out, and the phone stops charging reliably.
This part comes with the port already fitted, so no soldering is needed. The whole flex cable is swapped as one part. If the phone still does not charge with a new flex cable and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Flex Cable
- Compatible with
- OnePlus 10T
- Model numbers
- CPH2415 · CPH2413 · CPH2417
- Does not fit
- OnePlus 10R, 10 Pro or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with OnePlus 10T
- In the box
- 1 × charging port flex cable for OnePlus 10T.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About device. The device name should read OnePlus 10T and the model number should be CPH2415, CPH2413 or CPH2417.
The 10T has a flat 6.7-inch screen and three rear cameras.
Professional installation
How a technician fits this part
- Power the OnePlus 10T off and remove the SIM tray.
- Warm the back glass to soften the adhesive, then lift it with a suction cup and plastic pick.
- Remove the screws and inner cover, then disconnect the battery before touching any other part.
- Remove the lower cover and speaker if fitted, unplug the old charging port flex cable and unscrew it.
- Fit the new flex cable, reconnect its connectors and secure the screws.
- Refit the covers, reconnect the battery and close the phone.
- Power on and test charging and USB data with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my OnePlus 10T?
Yes, if Settings shows OnePlus 10T. It is listed for model CPH2415, CPH2413, CPH2417. It does not fit the OnePlus 10R.
Does it fit the OnePlus 10R?
No. The 10R is a different phone with a different internal layout. This part is for the 10T only.
Do I need to solder anything?
No. The port is already fitted to this flex cable. It connects with a plug-in connector and screws.
Is it made by OnePlus?
No. It is a brand new, OEM-quality charging port flex cable made to fit the OnePlus 10T, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The OnePlus 10T has to be opened carefully with heat and plastic tools, and the battery must be disconnected before the new part is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
