Charging Port Board

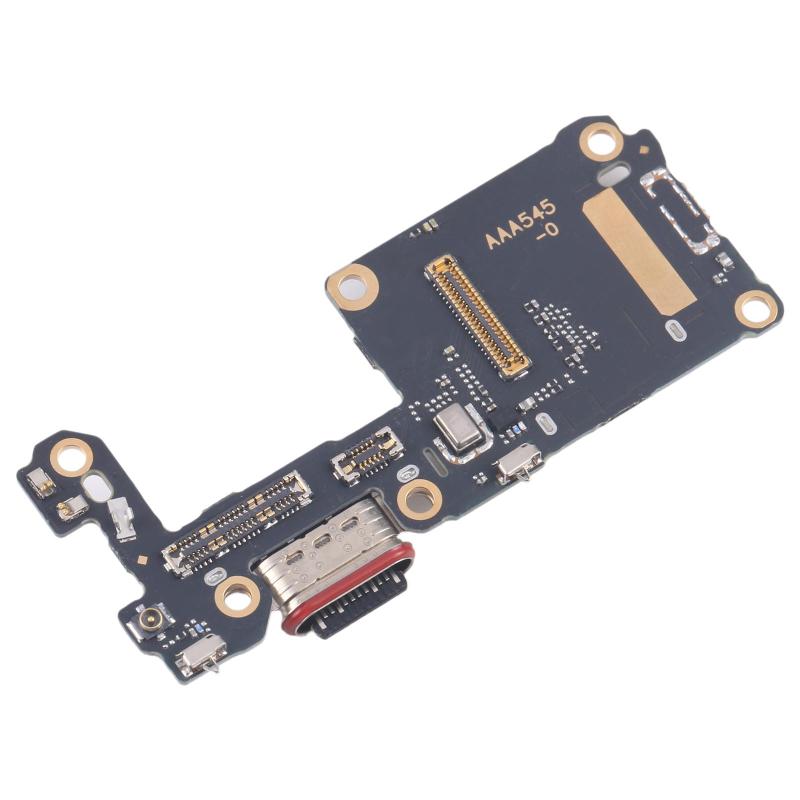

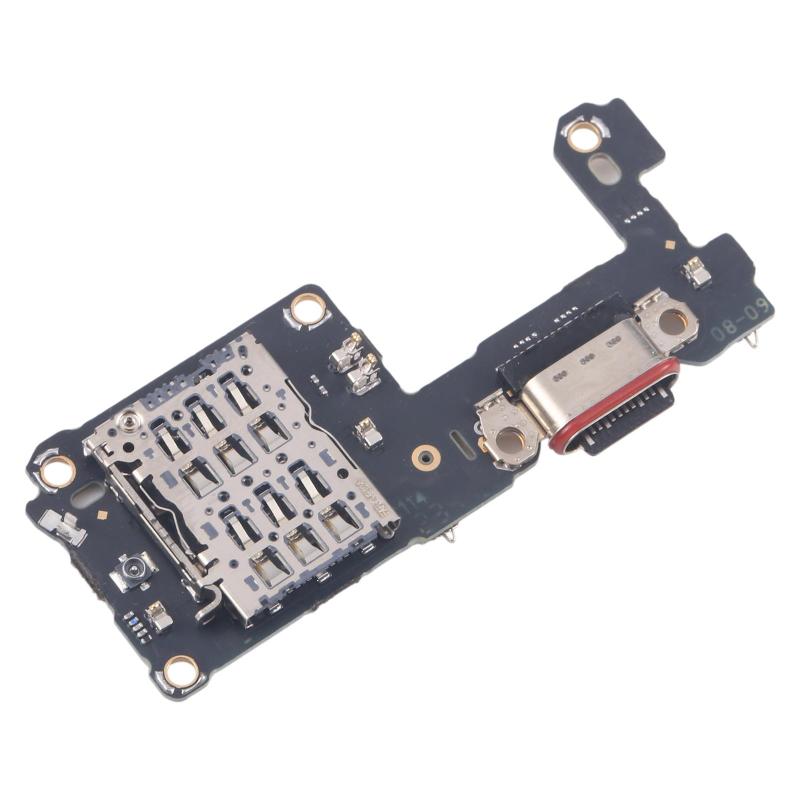

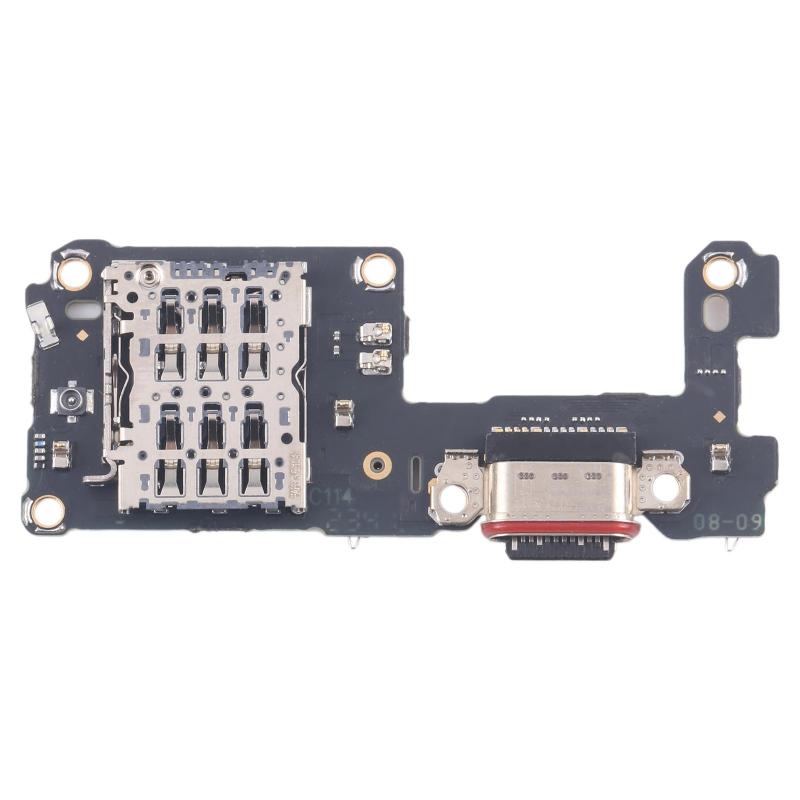

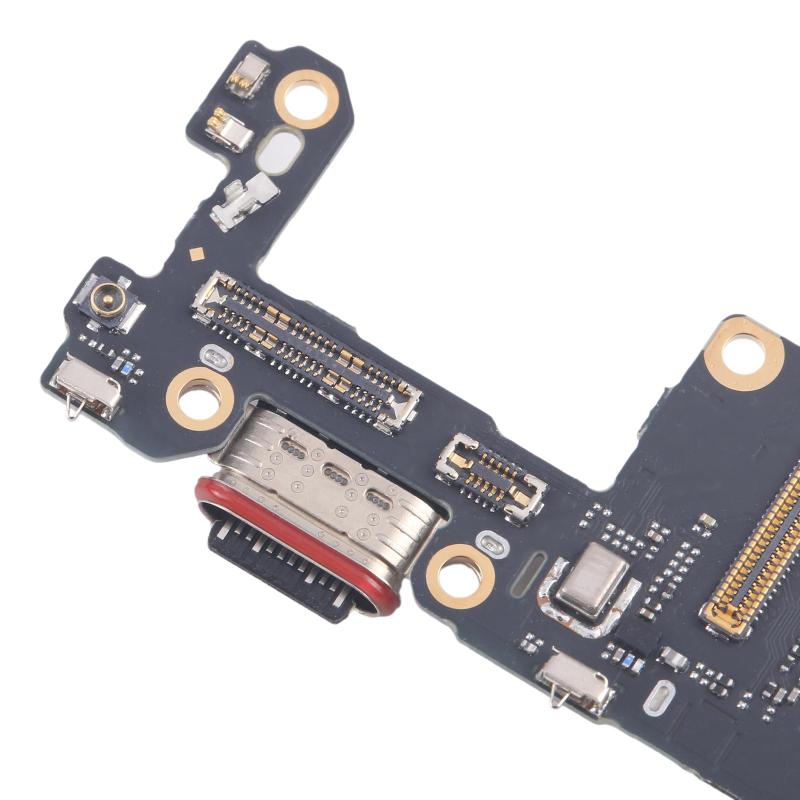

OnePlus 12 Charging Port Board Replacement
- Fits
- OnePlus 12
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the OnePlus 12 the USB-C charging port sits at the bottom of the phone and is joined to the main board by a small sub-board and flex cable. Daily plugging in, pocket lint and drops wear the port out, and the phone stops charging reliably.
This part comes with the port already fitted, so no soldering is needed. The whole board is swapped as one part. If the phone still does not charge with a new board and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- OnePlus 12
- Model numbers
- PJD110 · CPH2573 · CPH2581 · CPH2583
- Does not fit
- OnePlus 12R, 11 5G or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with OnePlus 12
- In the box
- 1 × charging port board for OnePlus 12.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About device. The device name should read OnePlus 12 and the model number should be PJD110, CPH2573, CPH2581 or CPH2583.
The OnePlus 12 has a 6.82-inch screen and a round camera module with the Hasselblad name.
Professional installation
How a technician fits this part
- Power the OnePlus 12 off and remove the SIM tray.
- Warm the back glass to soften the adhesive, then lift it with a suction cup and plastic pick.
- Remove the screws and inner cover, then disconnect the battery before touching any other part.
- Remove the lower cover and speaker if fitted, unplug the old charging port board and unscrew it.
- Fit the new board, reconnect its connectors and secure the screws.
- Refit the covers, reconnect the battery and close the phone.
- Power on and test charging and USB data with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my OnePlus 12?
Yes, if Settings shows OnePlus 12. It is listed for model PJD110, CPH2573, CPH2581, CPH2583. It does not fit the OnePlus 12R.
Does it fit the OnePlus 12R?
No. The 12R is a different phone with a different internal layout. This part is for the OnePlus 12 only.
Do I need to solder anything?
No. The port is already fitted to this board. It connects with a plug-in connector and screws.
Is it made by OnePlus?
No. It is a brand new, OEM-quality charging port board made to fit the OnePlus 12, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The OnePlus 12 has to be opened carefully with heat and plastic tools, and the battery must be disconnected before the new part is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
