Loudspeaker
OnePlus 12 Loudspeaker Replacement
- Fits
- OnePlus 12
- Fixes
- No or distorted sound
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

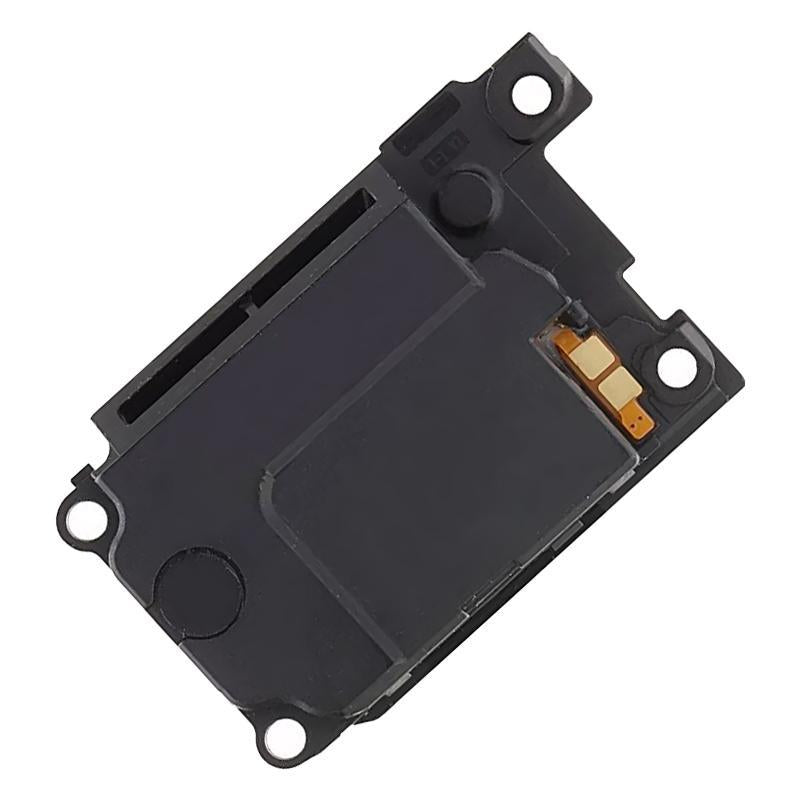

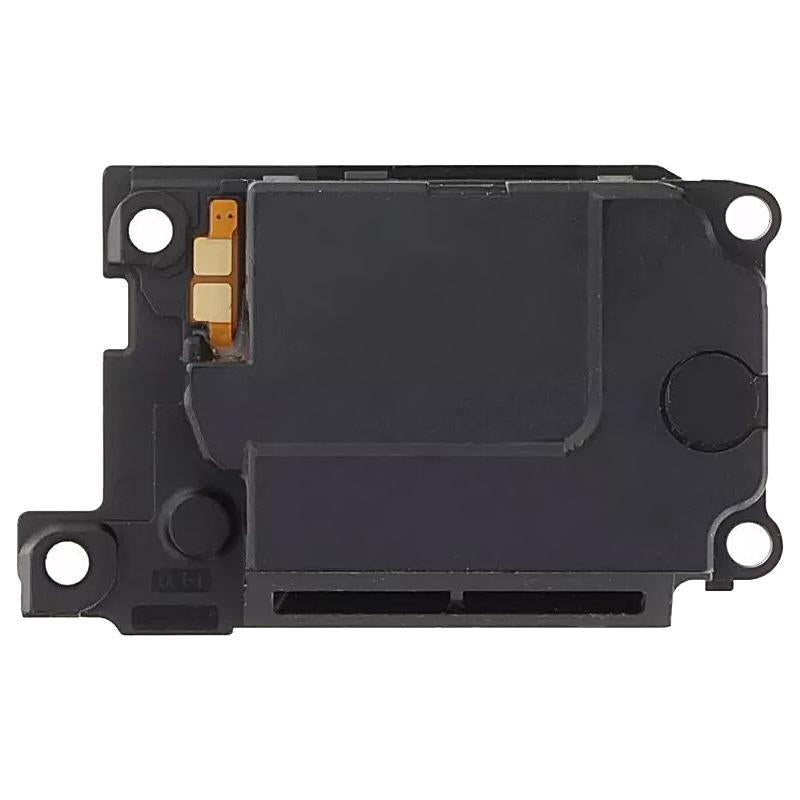

The OnePlus 12 loudspeaker sits at the bottom of the phone, next to the charging port. It plays ringtones, alerts, music, video sound and speakerphone calls. Water, dust and drops can damage it, so the sound becomes quiet, crackles or stops completely.
This is the complete loudspeaker unit. It is held in place with screws and connects without soldering. If there is still no sound after fitting, check the software settings and the charging port board.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- OnePlus 12
- Model numbers
- PJD110 · CPH2573 · CPH2581 · CPH2583
- Does not fit
- OnePlus 12R, 11 5G or any other model
- Fixes
- Silent, quiet, crackling or distorted ringtones, media sound and speakerphone
- Does not fix
- The earpiece speaker used for normal calls, microphone or charging faults
- Quality
- Brand new, OEM-quality loudspeaker. Tested before dispatch.
- Brand
- Unbranded, compatible with OnePlus 12
- In the box
- 1 × loudspeaker for OnePlus 12.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- Ringtones and alerts are silent or very quiet
- Music and video sound crackles or buzzes
- Speakerphone does not work but the earpiece does
- Sound stopped after the phone got wet or was dropped
How to check your model
Open Settings › About device. The device name should read OnePlus 12 and the model number should be PJD110, CPH2573, CPH2581 or CPH2583.
The OnePlus 12 has a 6.82-inch screen and a round camera module with the Hasselblad name.
Professional installation
How a technician fits this part
- Power the OnePlus 12 off and remove the SIM tray.
- Warm the back glass to soften the adhesive, then lift it with a suction cup and plastic pick.
- Remove the screws and inner cover, then disconnect the battery before touching any other part.
- Remove the screws holding the loudspeaker at the bottom of the phone.
- Lift out the old loudspeaker and fit the new one in the same position.
- Refit the screws and covers, then reconnect the battery.
- Power on and test ringtones, media sound and speakerphone.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my OnePlus 12?
Yes, if Settings shows OnePlus 12. It is listed for model PJD110, CPH2573, CPH2581, CPH2583. It does not fit the OnePlus 12R.
Does it fit the OnePlus 12R?
No. The 12R is a different phone with a different internal layout. This part is for the OnePlus 12 only.
Will it fix sound on normal calls?
No. Normal calls use the earpiece speaker at the top. This loudspeaker is for ringtones, media and speakerphone.
Is it made by OnePlus?
No. It is a brand new, OEM-quality loudspeaker made to fit the OnePlus 12, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The OnePlus 12 has to be opened carefully with heat and plastic tools, and the battery must be disconnected before the new part is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
