Charging Port Flex Cable
OnePlus 7 Pro Charging Port Flex Cable Replacement
- Fits
- OnePlus 7 Pro
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The OnePlus 7 Pro charging port is fitted to a flex cable rather than soldered to the main board, so a worn socket can be replaced without micro-soldering. Common signs are a cable that only charges at an angle, slow or stop-start charging, or a phone that a computer no longer sees.

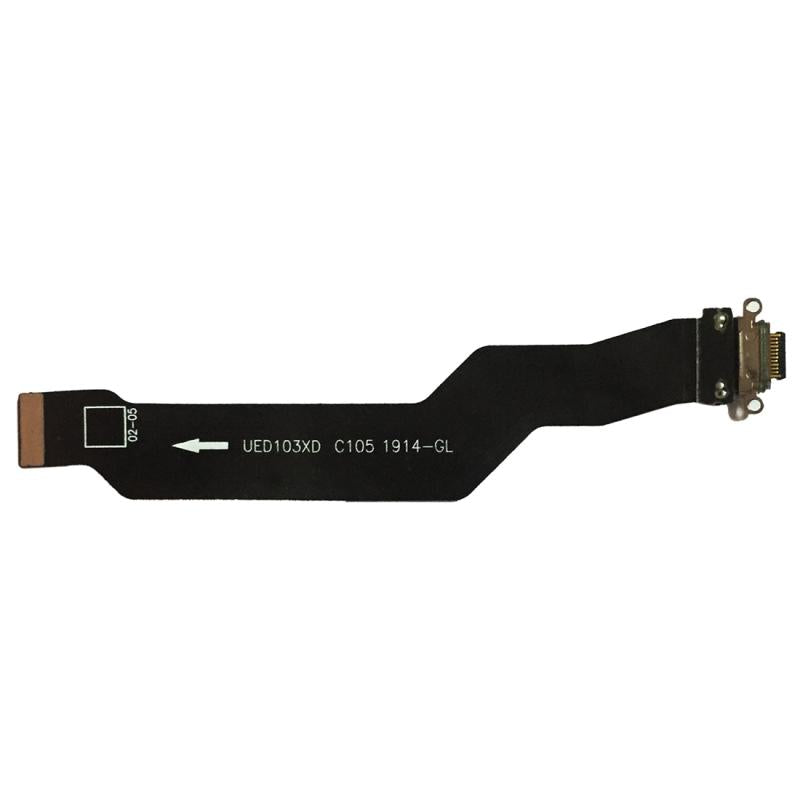

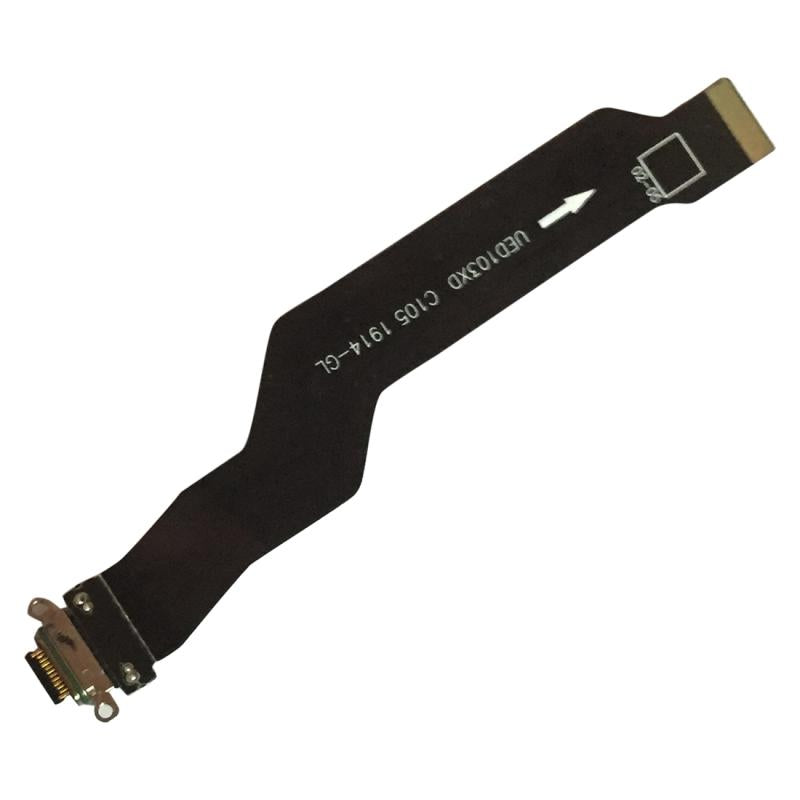

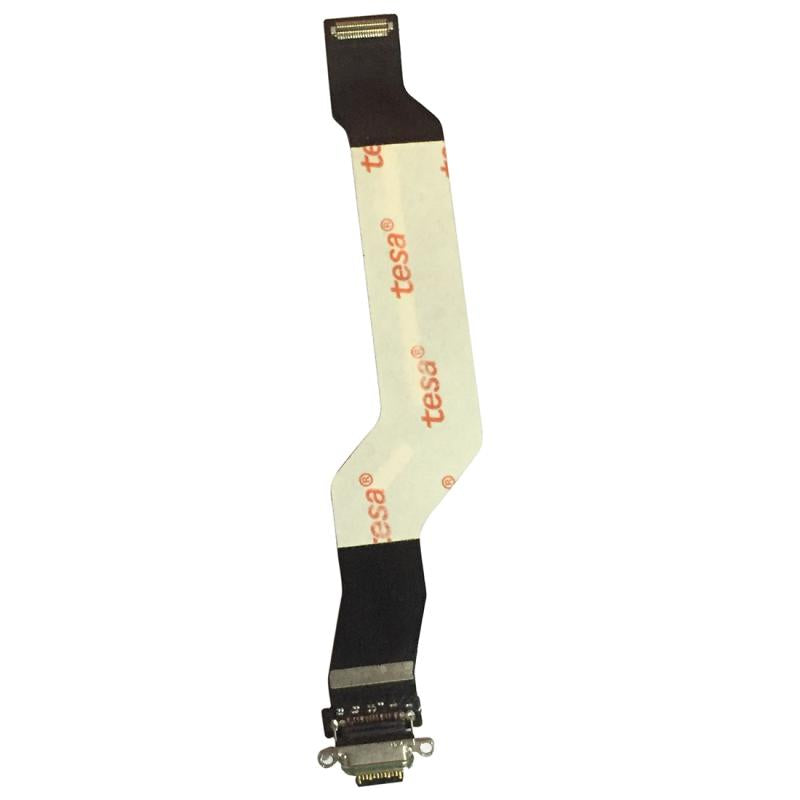

It carries the USB-C charging socket on a flex cable that connects to the main board. The OnePlus 7 Pro has no headphone jack. Before replacing it, clean the port with a plastic pick and test another cable and charger, as fluff in the socket is a common cause.
Compatibility
Specifications and compatibility
- Part
- Charging Port Flex Cable
- Compatible with
- OnePlus 7 Pro
- Model numbers
- GM1913 · GM1917
- Does not fit
- OnePlus 7, OnePlus 7T Pro, OnePlus 7T or any other model
- Fixes
- A loose or worn charging socket, slow or intermittent charging, data faults
- Does not fix
- Battery, screen or main board faults, or a faulty charger or cable
- Quality
- Brand new, OEM-quality charging port flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with OnePlus 7 Pro
- In the box
- 1 × charging port flex cable. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The cable only charges when held at an angle
- The phone charges slowly or keeps stopping
- A computer does not see the phone when plugged in
- The socket is loose, bent or has damaged pins
How to check your model
Open Settings › About phone and check the model name reads OnePlus 7 Pro, not OnePlus 7. The model number (GM1913, GM1917) is shown in the same menu and on the box. Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Clean the port and try another cable and charger to rule them out.
- Power the OnePlus 7 Pro off, open the back and disconnect the battery.
- Remove the parts covering the bottom of the phone and unclip the old flex.
- Fit the new flex, pressing each connector home and seating any adhesive.
- Reconnect the battery and test charging and data before closing the phone.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my OnePlus 7 Pro?
Yes, if Settings › About phone shows OnePlus 7 Pro. It is listed for model numbers GM1913, GM1917. It does not fit the OnePlus 7.
Does it fit the OnePlus 7?
No. The OnePlus 7 is a different phone and this part is not listed for it. Check the model name in Settings › About phone before you order.
Do I need to solder anything?
No. The socket is on a flex cable that plugs into the board, so no soldering is needed. The phone still has to be opened and the battery disconnected.
Is it made by OnePlus?
No. It is a brand new, OEM-quality charging port flex cable made to fit the OnePlus 7 Pro, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The OnePlus 7 Pro must be opened carefully, the battery disconnected and the flex seated correctly. Damage to the back cover or other cables is easy to cause without the right tools.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
