Charging Port Board
Samsung Galaxy S22 Ultra Charging Port Board Replacement
- Fits
- Samsung Galaxy S22 Ultra
- Fixes
- Charging and USB faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

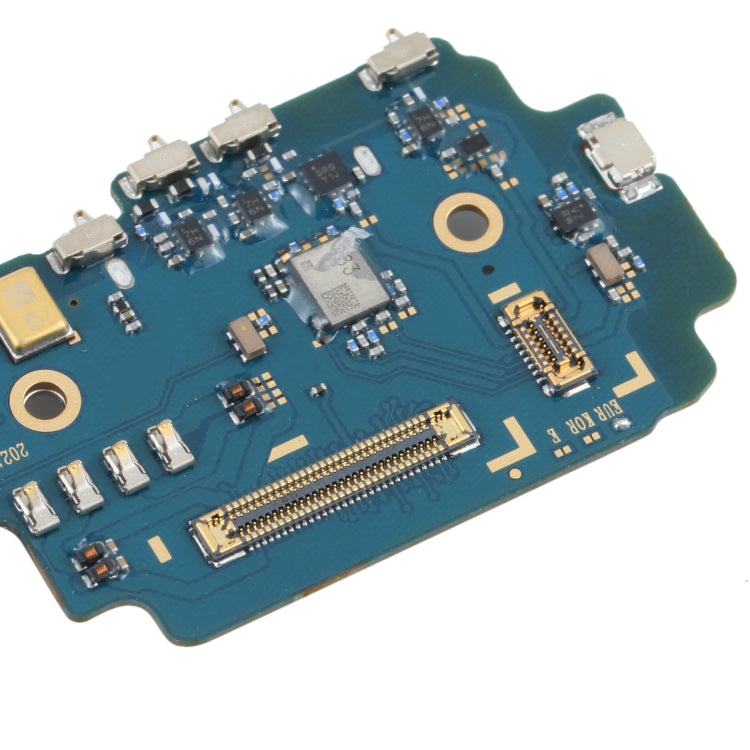

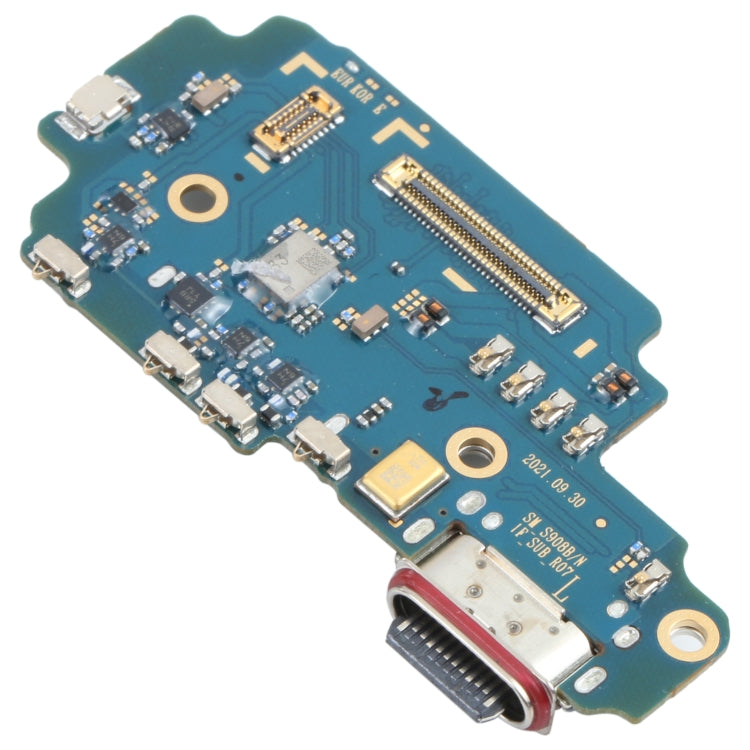

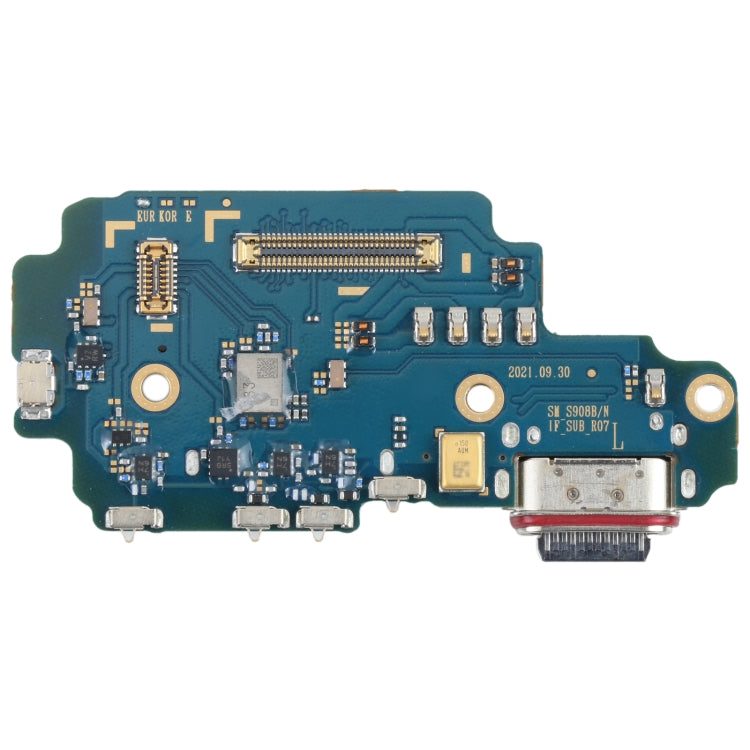

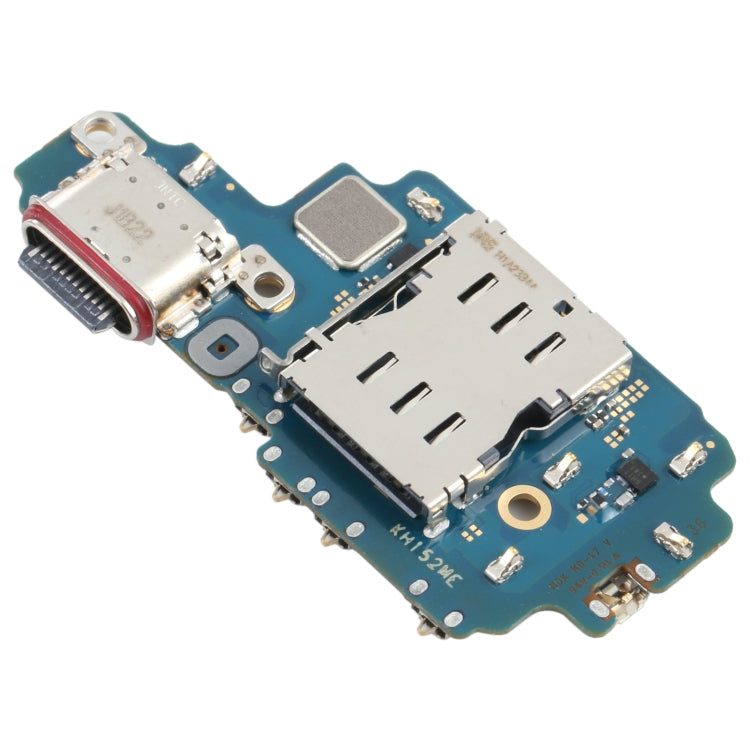

On the Galaxy S22 Ultra, the USB-C port is soldered to a small sub-board at the bottom of the phone. When the port wears out, gets bent or corrodes, the fix is to swap the whole board rather than repair the socket. On the S22 Ultra this board sits beside the S Pen slot, so take care not to damage the S Pen parts when you remove it.
This board is listed as the EU version, which matches the SM-S908B model sold in the UK and Europe. Boards for other regional versions can differ, so check the model number before you order. Clean the port with a dry, soft brush first: pocket lint is a common cause of poor charging and needs no parts.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Samsung Galaxy S22 Ultra
- Model numbers
- SM-S908B
- Does not fit
- Galaxy S22, S22+, S23 Ultra or any other model
- Fixes
- A loose, worn or damaged USB-C port, charging that cuts in and out, no wired charging and no data connection to a computer
- Does not fix
- A worn-out battery, wireless charging faults, a faulty charger or cable, or motherboard charging faults
- Quality
- Brand new, OEM-quality USB-C charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy S22 Ultra
- In the box
- 1 × Galaxy S22 Ultra charging port board. Check the photos for any tools or adhesive included.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The cable feels loose or falls out of the port
- Charging starts and stops when the cable moves
- The phone does not charge with a known-good cable and plug
- A computer does not detect the phone over USB
How to check your model
Open Settings › About phone. The model name should read Galaxy S22 Ultra, and the model number should start SM-S908B. The model number is also printed on the phone's box.
The Galaxy S22 Ultra has a 6.8-inch curved screen, a built-in S Pen and four rear cameras. The S23 Ultra looks very similar, so always check the model code.
Professional installation
How a technician fits this part
- Power the phone off, remove the SIM tray and warm the back glass to soften the adhesive.
- Lift the back glass with a suction cup and plastic picks, taking care not to crack it.
- Remove the screws and the lower cover, then disconnect the battery before anything else.
- Disconnect the flex and antenna cables from the old board, then unscrew and lift it out.
- Fit the new board, reconnect the cables and battery, and test charging and data before closing.
- Refit the covers, apply new back adhesive and press the glass down evenly.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy S22 Ultra?
Yes, if Settings › About phone shows Galaxy S22 Ultra and the model number starts SM-S908B. It does not fit the Galaxy S23 Ultra (SM-S918B).
Does it fit the Galaxy S23 Ultra?
No. The Galaxy S23 Ultra uses a different charging board. Please choose the part listed for that model.
What does EU version mean?
The charging board is made for the European SM-S908B model, which is the version sold in the UK. Phones bought in other regions may use a different board, so check the model number first.
Is it made by Samsung?
No. It is a brand new, OEM-quality charging port board made to fit the Samsung Galaxy S22 Ultra, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Galaxy S22 Ultra back glass is glued on and needs heat to remove, and the battery must be disconnected safely before the board is changed.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders from £5.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
