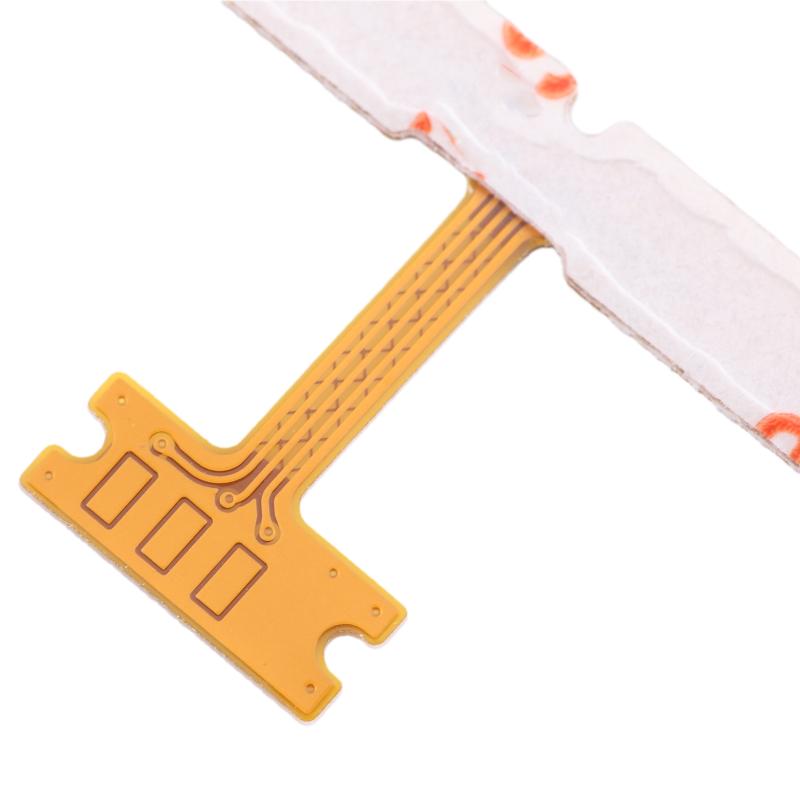

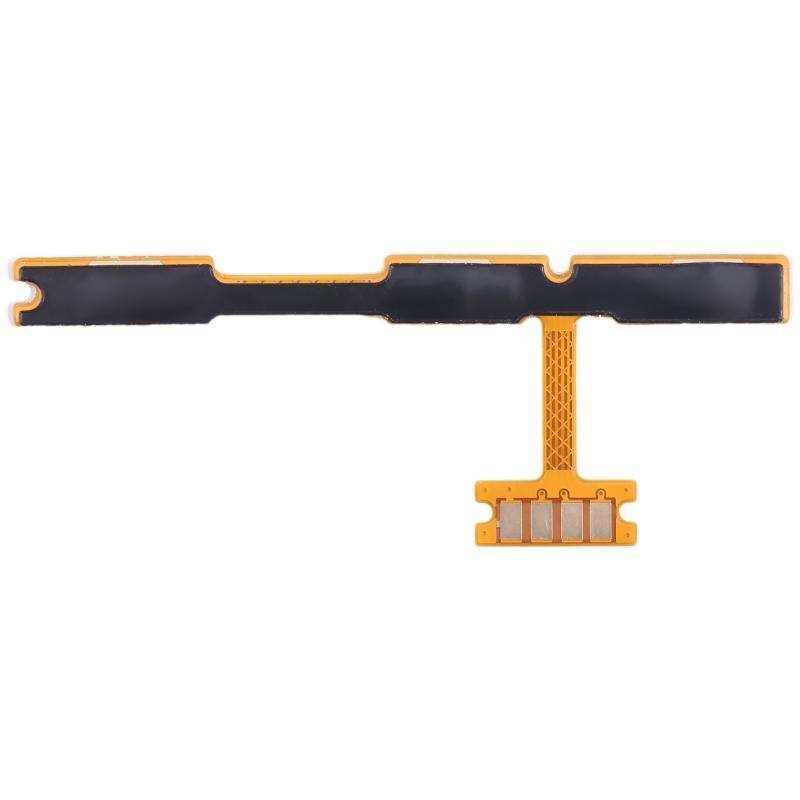

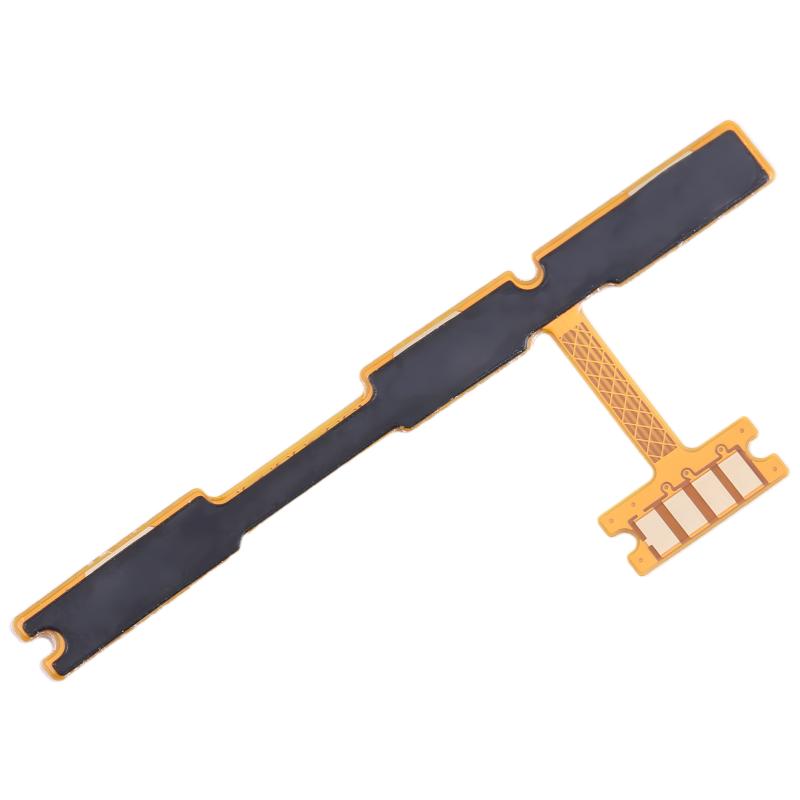

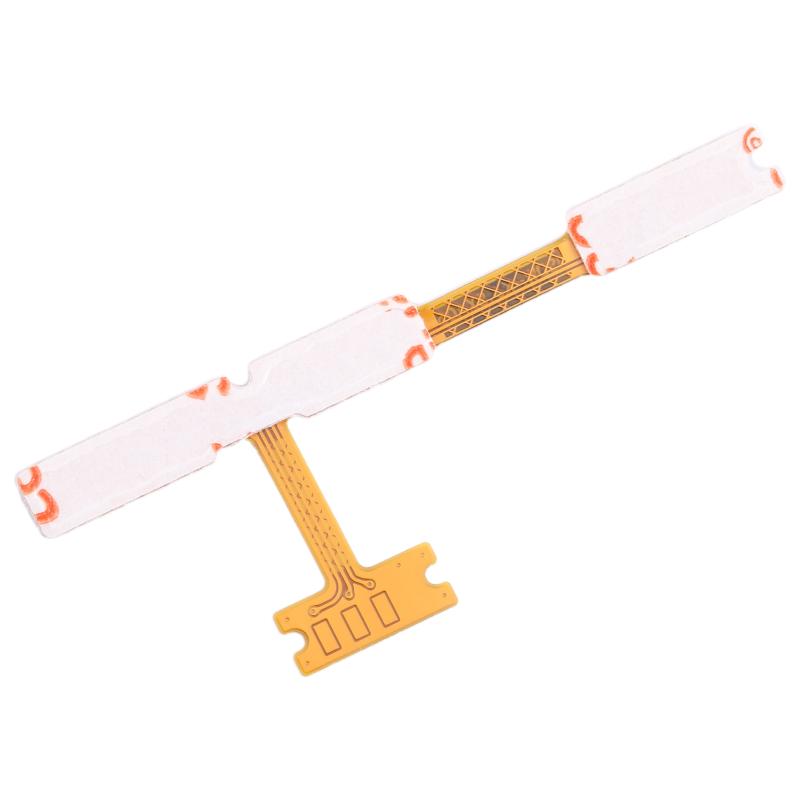

Power and Volume Button Flex Cable
Samsung Galaxy A05 Power and Volume Button Flex Cable Replacement
- Fits
- Samsung Galaxy A05
- Fixes
- Dead buttons
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The power and volume buttons on the Galaxy A05 press against small switches on a thin flex cable inside the frame. The keys sit on the right-hand side of the phone. Over time the switches wear out, or the flex tears or corrodes after a drop or liquid damage, and the power and volume buttons stop working.
This flex is listed for model SM-A055F. The model number is in Settings › About phone and on the box. Before ordering, check that the outer keys are not jammed or missing, as this part replaces the internal flex only.
Compatibility
Specifications and compatibility
- Part
- Power and Volume Button Flex Cable
- Compatible with
- Samsung Galaxy A05
- Model numbers
- SM-A055F
- Does not fit
- Galaxy A05s, Galaxy A04 or any other model
- Fixes
- A power and volume buttons that do not respond, stick or act on their own
- Does not fix
- Broken outer keys, battery, screen or main board faults
- Quality
- Brand new, OEM-quality power and volume buttons flex cable for the Galaxy A05. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy A05
- In the box
- 1 × power and volume buttons flex cable. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The power or volume buttons do nothing when pressed
- The button only works when pressed very hard or at an angle
- The phone turns itself off, restarts or changes volume on its own
- The button feels normal but gives no click or response
How to check your model
Open Settings › About phone and check the model name reads Galaxy A05, not Galaxy A05s or Galaxy A04. The model number is shown there too and starts SM-. Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back cover edges and lift it off carefully.
- Remove the screws and inner cover, then disconnect the battery before anything else.
- Unclip the old power and volume buttons flex from the side of the frame and unplug it.
- Fit the new flex in the same position, reconnect it and the battery, and test every button before closing.
- Refit the inner cover and screws, then refit the back cover with new adhesive if needed.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy A05?
Yes, if Settings › About phone shows Galaxy A05. It is listed for model SM-A055F. It is not listed for the Galaxy A05s or Galaxy A04.
Does it fit the Galaxy A05s?
It is not listed for the Galaxy A05s. The A05 and A05s are different phones. Check the model number in Settings › About phone: the A05 starts SM-A055.
Will it fix a broken button cap?
No. This part is the internal flex with the switches. If the outer plastic or metal key is cracked or missing, that needs replacing separately.
Is it made by Samsung?
No. It is a brand new, OEM-quality power and volume button flex cable made to fit the Samsung Galaxy A05, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back of the Galaxy A05 has to be removed, the battery must be disconnected safely, and the flex is thin and easy to tear.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
