Charging Port Board with IC

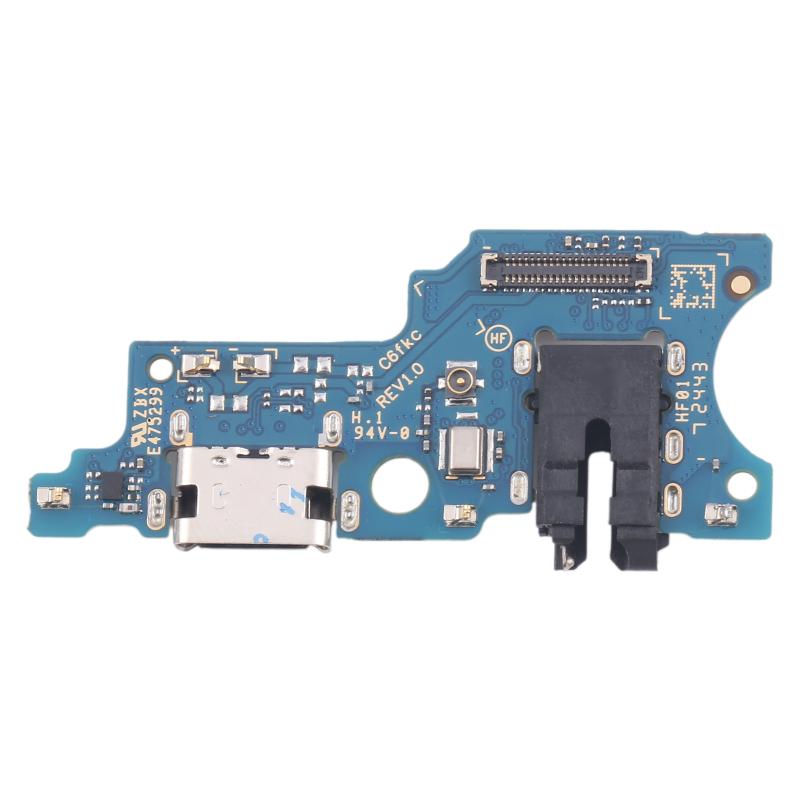

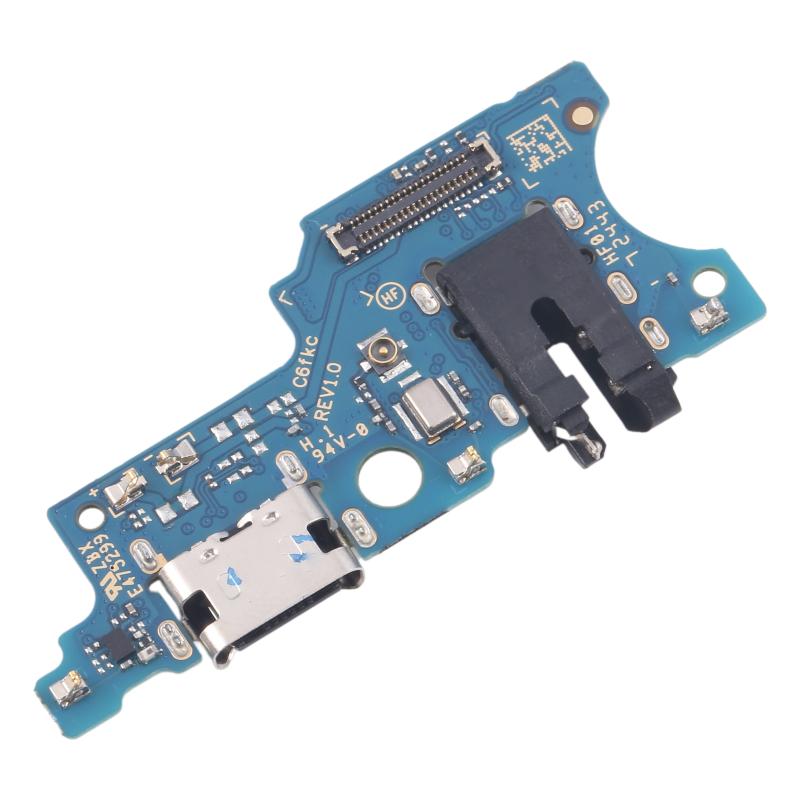

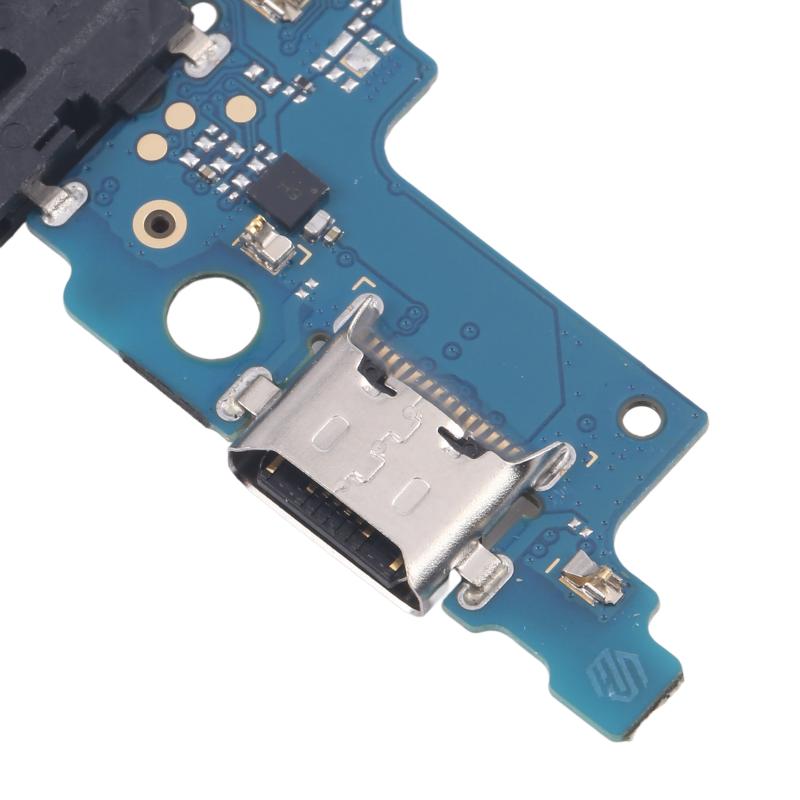

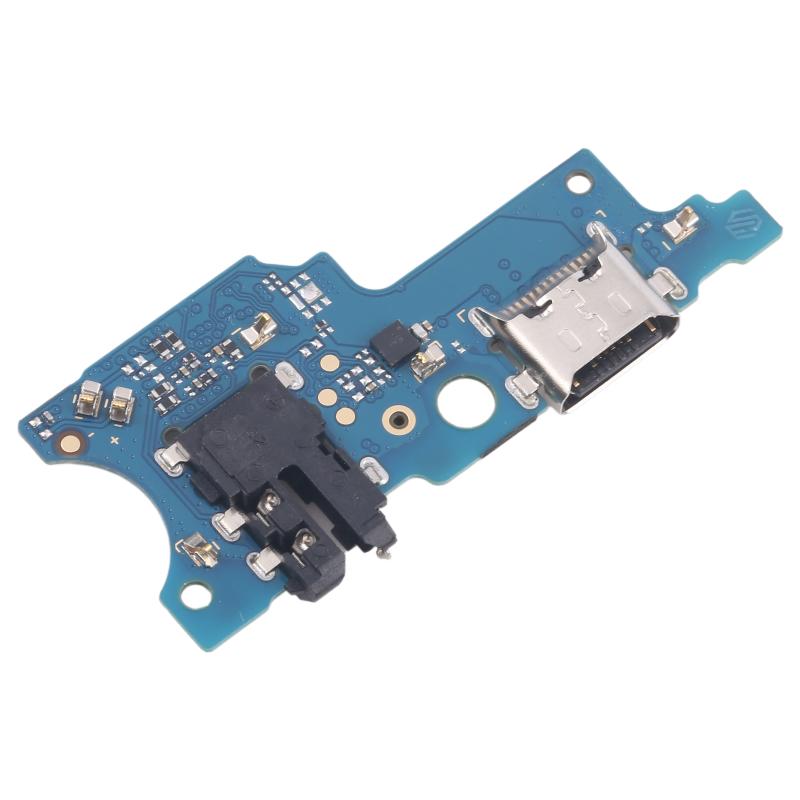

Samsung Galaxy A06 Charging Port Board with IC Replacement
- Fits
- Samsung Galaxy A06
- Fixes
- No charging
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the Galaxy A06 the charging port is fitted to a small sub-board at the bottom of the phone, joined to the main board by a flex cable. Worn contacts, bent pins or liquid damage in the port cause charging and data problems, and replacing the board is the clean fix.
This board comes with the charging IC already fitted, so no soldering is needed. Before you order, clean the port gently with a wooden or plastic pick and try a different cable and plug. If the phone still will not charge, this board is the usual repair.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board with IC
- Compatible with
- Samsung Galaxy A06
- Model numbers
- SM-A065F
- Does not fit
- Galaxy A05, Galaxy A06 5G or any other model
- Fixes
- No charging, slow or loose charging, or no connection to a computer
- Does not fix
- A worn-out battery, main board faults or a faulty charger
- Quality
- Brand new, OEM-quality charging port board with IC for the Galaxy A06. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy A06
- In the box
- 1 × charging port board. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone will not charge, or charges only when the cable is held at an angle
- Charging is very slow or keeps stopping and starting
- The cable feels loose in the port even after cleaning
- A computer does not recognise the phone over USB
How to check your model
Open Settings › About phone and check the model name reads Galaxy A06, not Galaxy A05 or Galaxy A06 5G. The model number is shown there too and starts SM-. Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back cover edges and lift it off carefully.
- Remove the screws and lower cover plate, then disconnect the battery before anything else.
- Disconnect the flex cable and lift out the old charging board from the Galaxy A06.
- Fit the new board, reconnect the flex and battery, and test charging and calls before closing.
- Refit the cover plate and screws, then refit the back cover and press it down evenly.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy A06?
Yes, if Settings › About phone shows Galaxy A06. It is listed for model SM-A065F. It is not listed for the Galaxy A05 or Galaxy A06 5G.
Does it fit the Galaxy A05?
No. The Galaxy A05 is a different phone with a different board. Check the model number in Settings › About phone: the A06 is SM-A065F.
What does "with IC" mean?
The charging control chip is already fitted to the board, so it is ready to install without soldering. It is a complete board, not a bare port.
Is it made by Samsung?
No. It is a brand new, OEM-quality charging port board with ic made to fit the Samsung Galaxy A06, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back of the Galaxy A06 must come off, the battery must be disconnected safely, and the board's flex connector is small and easy to damage.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
