Charging Port Board
Samsung Galaxy A22 4G Charging Port Board Replacement
- Fits
- Samsung Galaxy A22 4G
- Fixes
- Charging fault
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

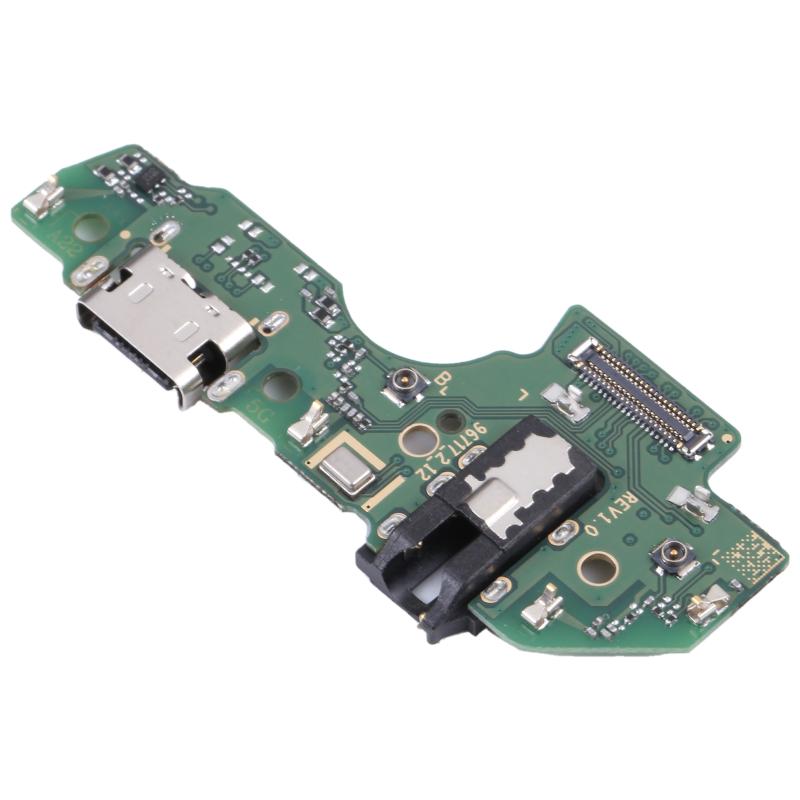

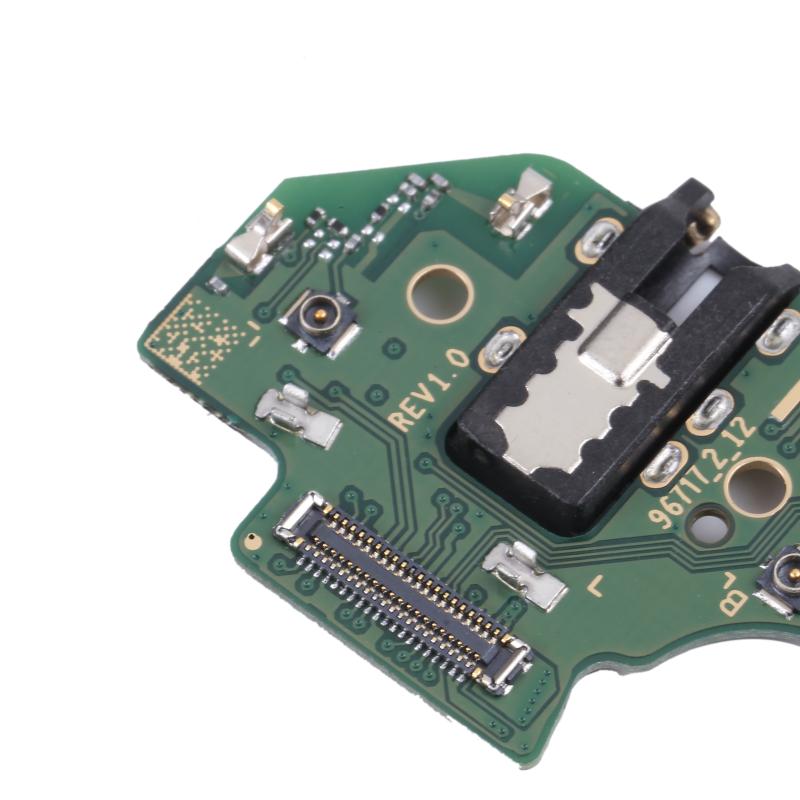

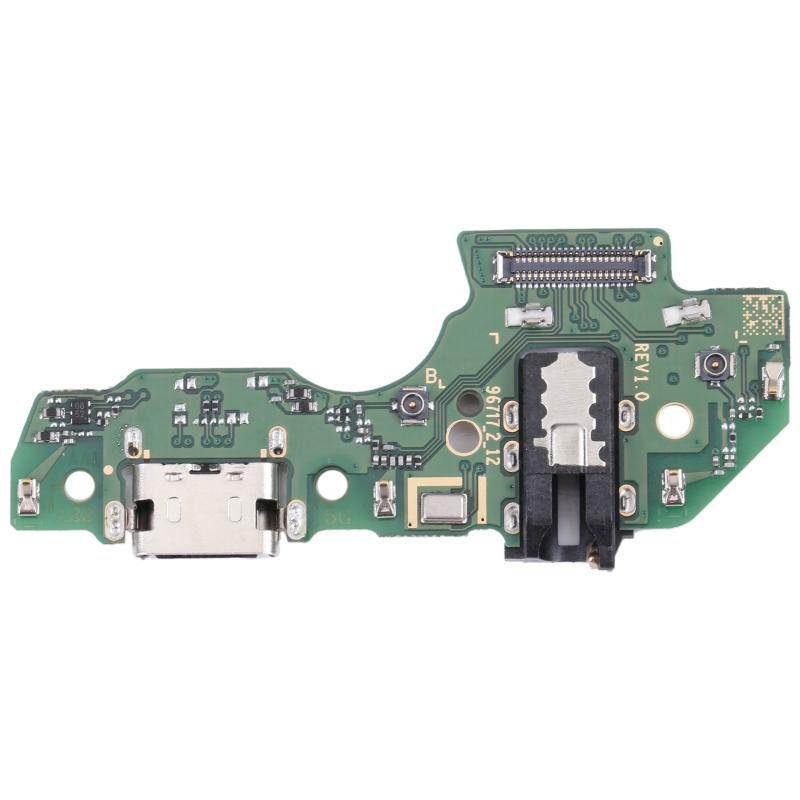

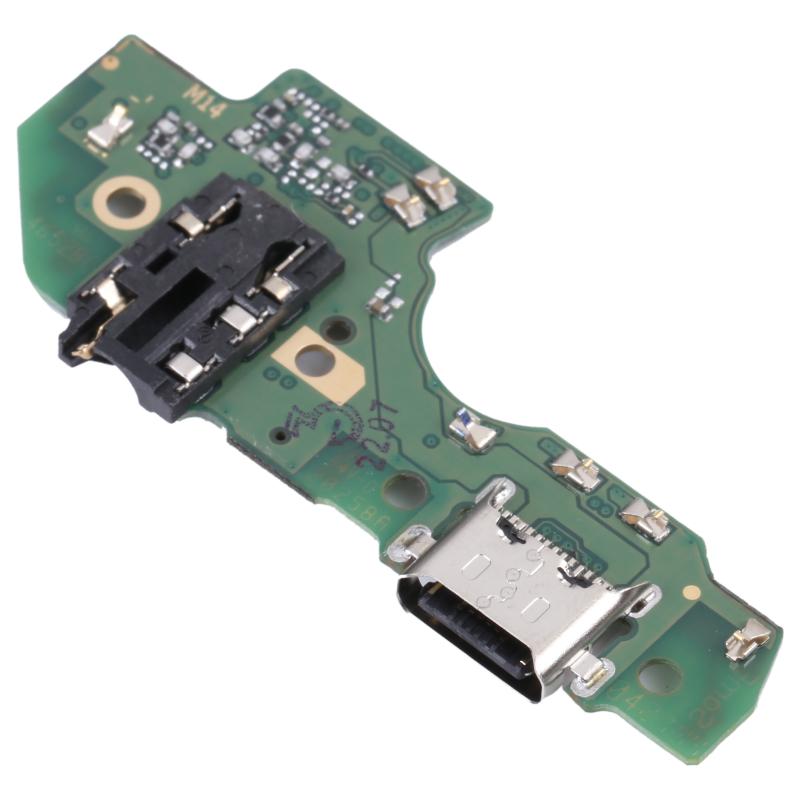

On the Samsung Galaxy A22 4G the USB-C charging port is mounted on a small sub-board at the bottom of the phone. The board connects to the main board with a flex cable. A worn or bent port, corrosion or a damaged board can stop the phone charging or connecting to a computer.
This part replaces the whole charging board with its IC chip already fitted. On many Galaxy A models this board also carries the main microphone, so check calls after fitting. Try a known-good cable and charger first, and clean lint out of the port, before replacing it.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Samsung Galaxy A22 4G
- Model numbers
- Check Settings › About phone
- Does not fit
- Galaxy A22 5G, Galaxy A21s or any other model
- Fixes
- No charging, loose or slow charging, and no USB connection to a computer
- Does not fix
- A worn-out battery, main board charging faults or a faulty charger
- Quality
- Brand new, OEM-quality charging port board for the Samsung Galaxy A22 4G. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy A22 4G
- In the box
- 1 × charging port board. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone does not charge, or charges only at an angle
- The cable feels loose in the port
- Charging is very slow or keeps stopping
- A computer does not see the phone over USB
How to check your model
Open Settings › About phone. The model name should read Galaxy A22 4G, not Galaxy A22 5G. Samsung model numbers start SM-.
The Galaxy A22 4G and Galaxy A22 5G share a name but have different internal layouts. Compare your old part with the photos before you order.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back cover edges gently and lift the back cover off with a thin pick.
- Remove the screws and inner cover, then disconnect the battery before anything else.
- Remove the bottom inner cover, unplug the flex cables and lift the old charging board out.
- Fit the new board, reconnect the flex cables and the battery, then test charging and the microphone.
- Refit the covers and screws, then fit the back cover with new adhesive.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy A22 4G?
Yes, if Settings › About phone shows Galaxy A22 4G. It is not listed for the Galaxy A22 5G or Galaxy A21s.
Does it fit the Galaxy A22 5G?
This listing is for the Galaxy A22 4G. The A22 4G and A22 5G have different internal layouts, so check the model name in Settings › About phone and compare your old part with the photos before you order.
Should I try a new cable first?
Yes. Try a known-good USB-C cable and charger, and gently clean lint out of the port. If it still will not charge, the charging board is the likely fault.
Is it made by Samsung?
No. It is a brand new, OEM-quality part made to fit the Samsung Galaxy A22 4G, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Galaxy A22 4G has to be opened with heat and a pick, the battery must be disconnected safely, and the flex cables are thin and easy to tear.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
