Charging Port Connector
Samsung Galaxy A5 (2017) Charging Port Connector Replacement
- Fits
- Samsung Galaxy A5 (2017)
- Fixes
- No charging
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

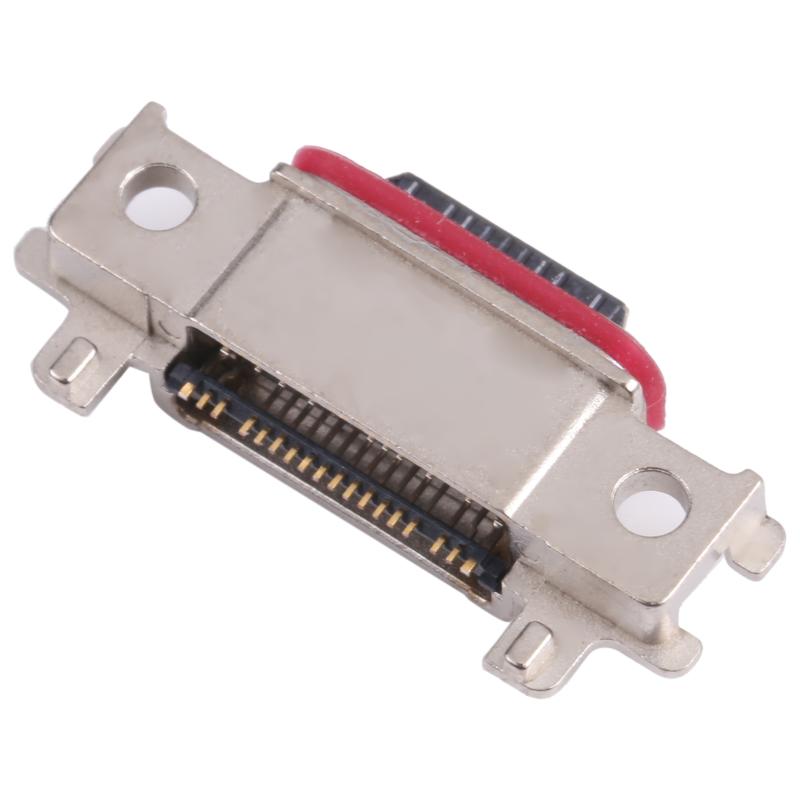

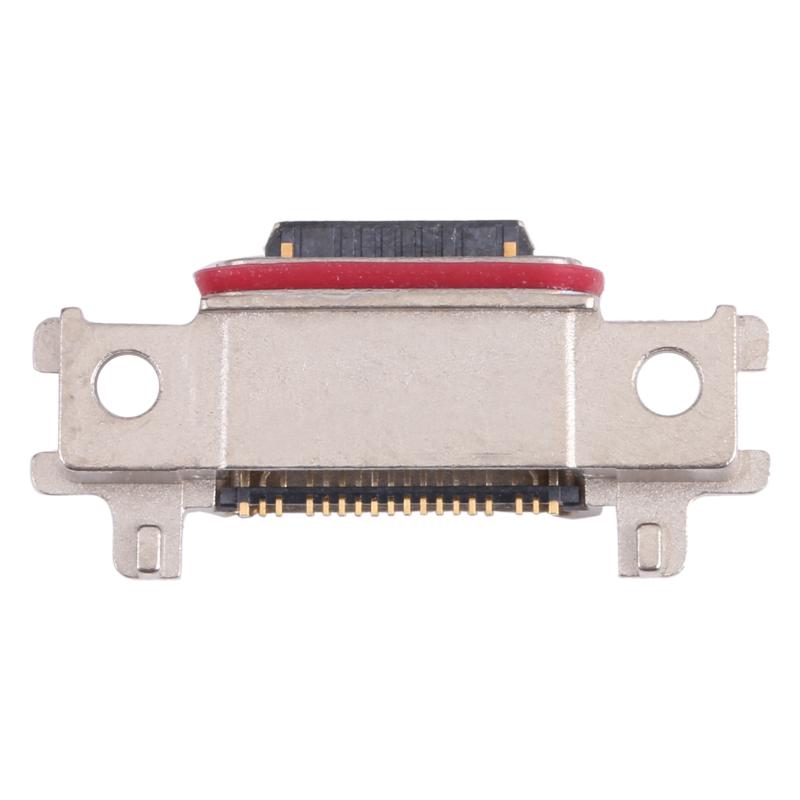

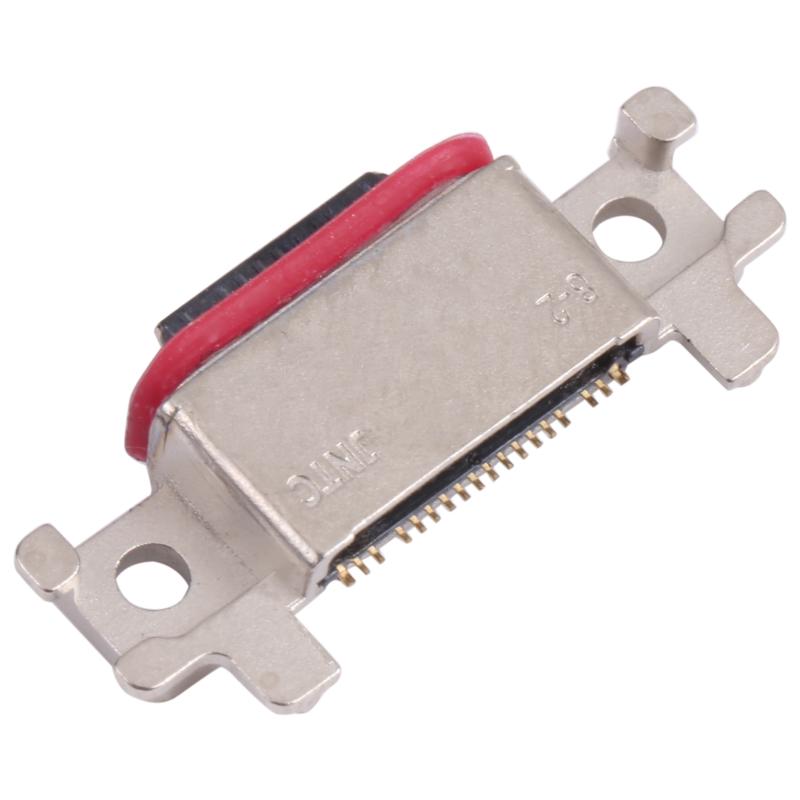

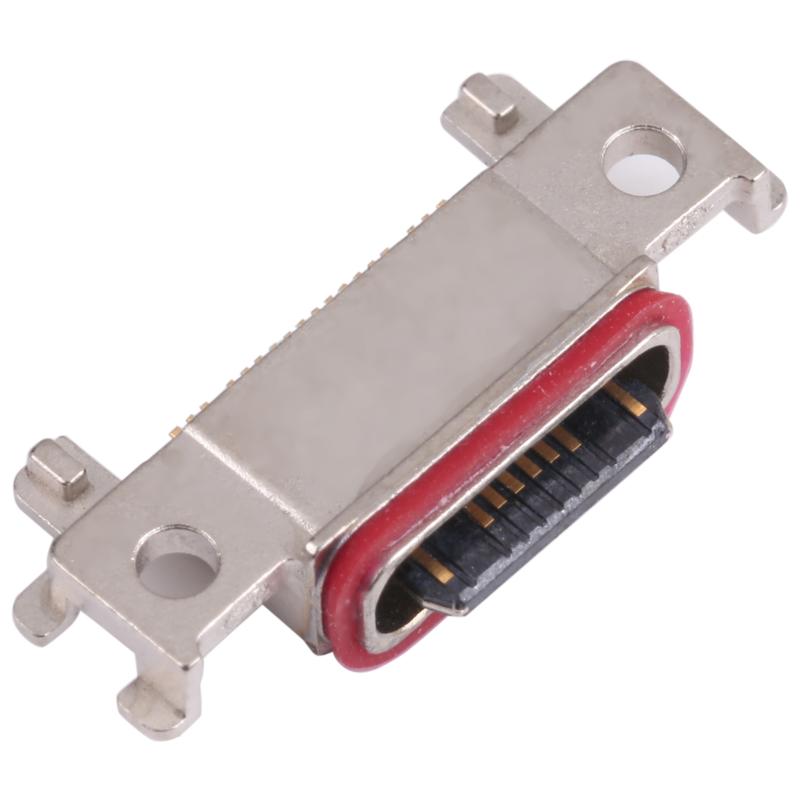

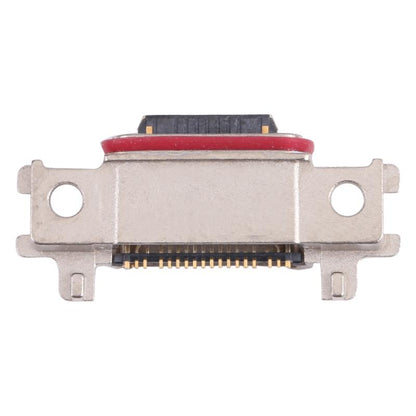

The Galaxy A5 (2017) charges through a USB-C port. This listing is the metal connector itself, as shown in the photos. The old connector must be de-soldered and the new one soldered in its place, so this is a job for a repair shop with micro-soldering tools.
Before you order, clean the port gently with a wooden or plastic pick and try a different cable and plug. If the cable is still loose or the phone will not charge, a new connector is the fix. Our supplier lists it for the SM-A520F and other A520 versions.
Compatibility
Specifications and compatibility
- Part
- Charging Port Connector
- Compatible with
- Samsung Galaxy A5 (2017)
- Model numbers
- SM-A520F
- Does not fit
- Galaxy A5 (2016), Galaxy A7 (2017) or any other model
- Fixes
- No charging, slow or loose charging, or no connection to a computer
- Does not fix
- A worn-out battery, main board faults or a faulty charger
- Quality
- Brand new, OEM-quality charging port connector for the Samsung Galaxy A5 (2017). Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy A5 (2017)
- In the box
- 1 × USB-C charging port connector. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone will not charge, or charges only when the cable is held at an angle
- Charging is very slow or keeps stopping and starting
- The cable feels loose in the port even after cleaning
- A computer does not recognise the phone over USB
How to check your model
Open Settings › About phone. The model name should read Galaxy A5 (2017) and the model number should start SM-A520F. It must not be the Galaxy A5 (2016) or Galaxy A7 (2017).
Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Power the phone off and warm the back glass edges to soften the adhesive.
- Lift the back glass off carefully and disconnect the battery before anything else.
- Remove the part carrying the charging port and clean the area.
- De-solder the old connector with hot air or a soldering iron and flux.
- Solder the new USB-C connector in place and check every pin for bridges.
- Refit, reconnect the battery and test charging and USB data before closing.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy A5 (2017)?
Yes, if Settings › About phone shows Galaxy A5 (2017) (model SM-A520F). It does not fit the Galaxy A5 (2016) or Galaxy A7 (2017).
Does it fit the Galaxy A5 (2016)?
No. The Galaxy A5 (2016) is a different phone and its parts are not the same. Check the model name in Settings › About phone before you order.
Is this a full charging board?
No. It is the USB-C connector only, and it must be soldered in. If you are not sure, ask a repair shop with micro-soldering tools.
Is it made by Samsung?
No. It is a brand new, OEM-quality charging port connector made to fit the Samsung Galaxy A5 (2017), and it is tested before dispatch.
Should I fit it myself?
No, unless you have micro-soldering skills and tools. The old connector must be removed with heat and the new one soldered in. We recommend a professional repair shop.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
