Display FPC Connector (Main Board)
Samsung Galaxy Note 10 Lite Display FPC Connector (Main Board) Replacement
- Fits
- Samsung Galaxy Note 10 Lite
- Fixes
- Damaged screen socket
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

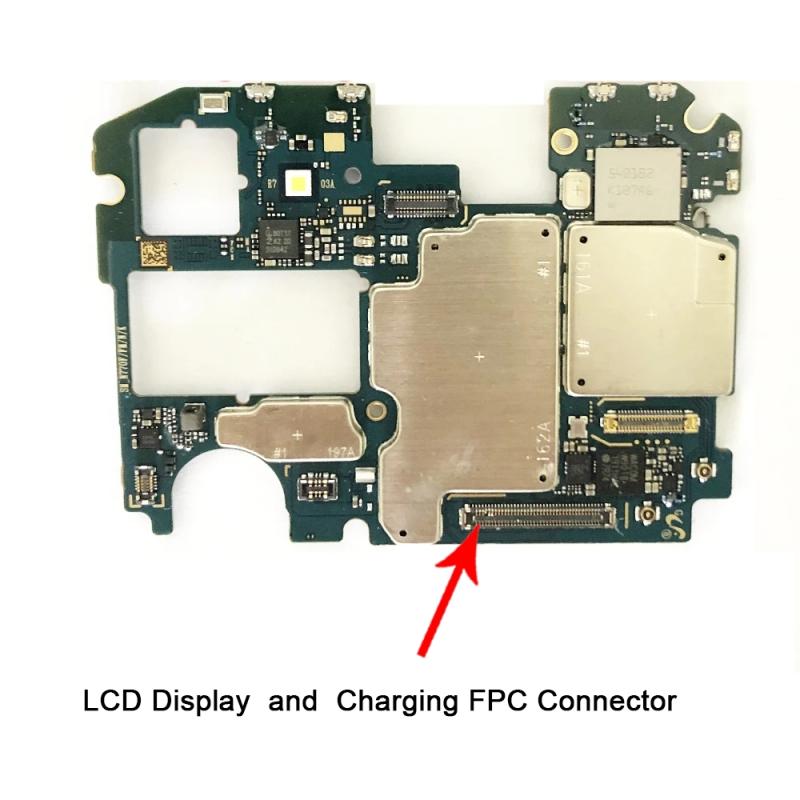

The Samsung Galaxy Note 10 Lite screen plugs into a tiny FPC socket soldered to the main board. If the screen flex is pushed in at an angle or the phone is dropped, the socket can crack or its pins can bend or lift. The phone may then show no picture, flicker or have dead touch, even with a new screen fitted.

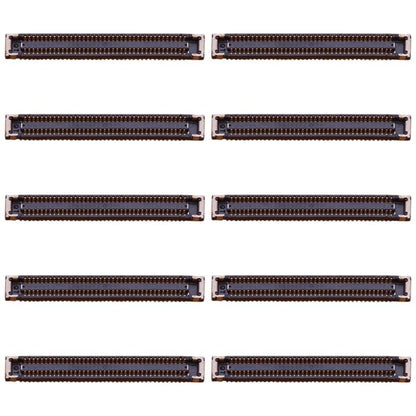

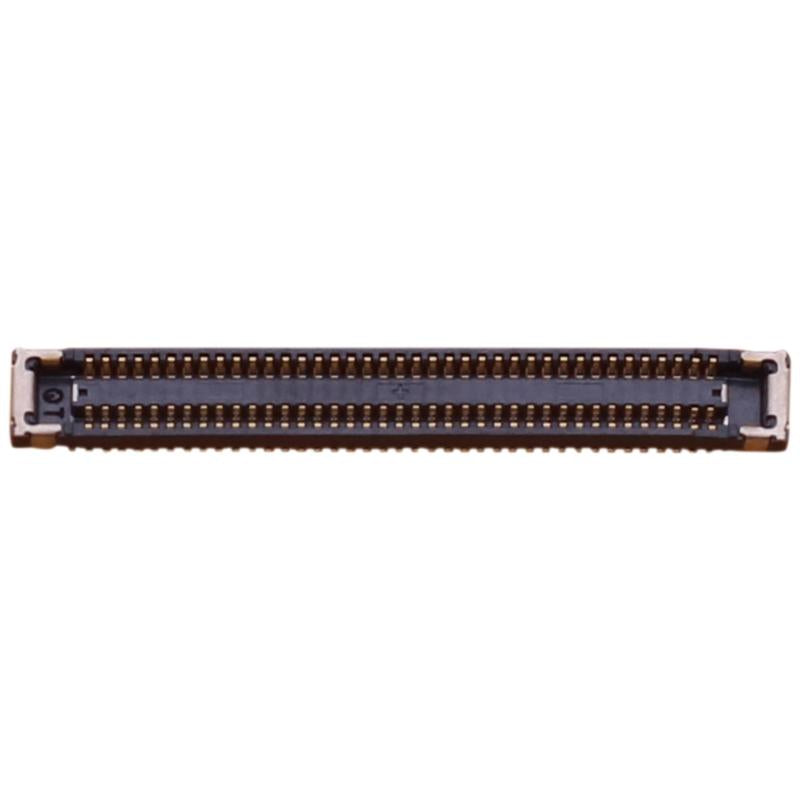

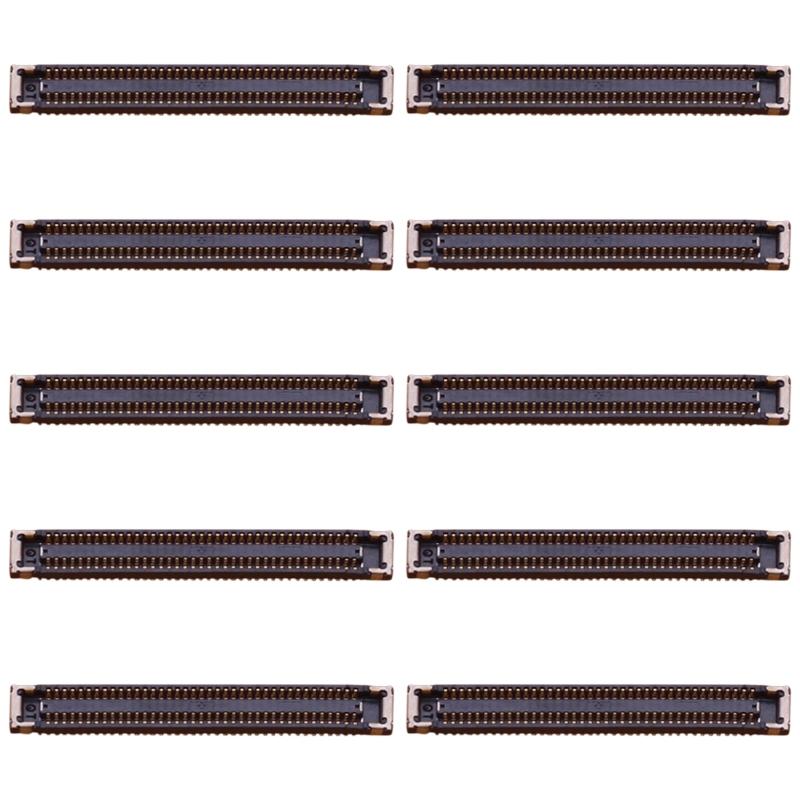

This part is the connector only, not a flex cable. Fitting it means removing the old socket with hot air and soldering the new one in place, so it is a job for a micro-soldering technician. Check the photos to confirm the connector size matches your board.
Compatibility
Specifications and compatibility
- Part
- Display FPC Connector (Main Board)
- Compatible with
- Samsung Galaxy Note 10 Lite
- Model numbers
- SM-N770F
- Does not fit
- Galaxy Note 10, Note 10+, S10 Lite or any other model
- Fixes
- A cracked, bent or lifted display socket on the main board that stops the screen working
- Does not fix
- A broken screen, a damaged screen flex cable or other main board faults
- Quality
- Brand new, OEM-quality display FPC connector. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy Note 10 Lite
- In the box
- 1 × display FPC connector. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The screen stays black even after fitting a new one
- The screen socket on the board has visible cracks or bent pins
- The display flickers or cuts out when the phone is pressed
- Touch or picture works only when the flex is held in place
How to check your model
Open Settings › About phone and check the model name reads Galaxy Note 10 Lite. The model number should start SM-N770. Compare your old part with the photos before fitting.
The Galaxy Note 10 Lite has a 6.7-inch Super AMOLED screen, three rear cameras in a square camera block and a headphone socket.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back cover evenly to soften the adhesive, then lift it off carefully.
- Remove the screws and inner panel, then disconnect the battery before touching any other connector.
- Remove the main board and fix it in a board holder.
- Remove the damaged socket with hot air, clean the pads and solder the new connector with the correct alignment.
- Check the pins under magnification, refit the board, connect the screen and test before closing.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy Note 10 Lite?
Yes, if Settings › About phone shows Galaxy Note 10 Lite (model SM-N770F). It does not fit the Galaxy Note 10, Note 10+, S10 Lite.
Does it fit the Galaxy S10 Lite?
No. The Galaxy S10 Lite (SM-G770) looks similar but is a different phone. Only order this for the Galaxy Note 10 Lite.
Is this a flex cable?
No. It is the small socket that sits on the main board. The screen's own flex cable plugs into it. It has to be soldered on.
Is it made by Samsung?
No. It is a brand new, OEM-quality display FPC connector made to fit the Samsung Galaxy Note 10 Lite, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. This connector is soldered to the main board, so it needs hot air, a microscope and micro-soldering skills.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
