Loudspeaker
Samsung Galaxy Note 10+ Loudspeaker Replacement
- Fits
- Samsung Galaxy Note 10+
- Fixes
- Speaker faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

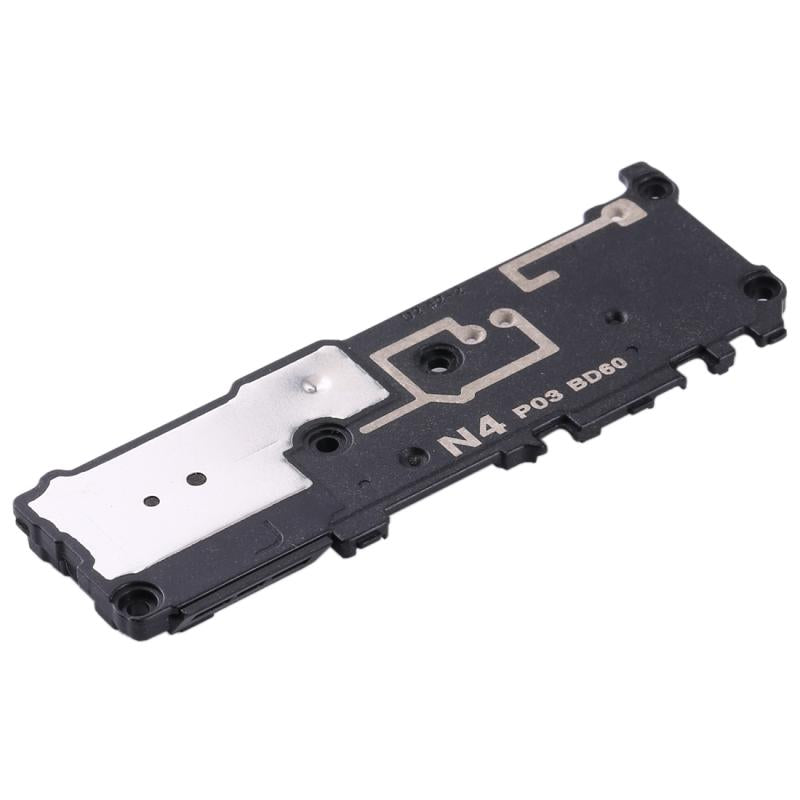

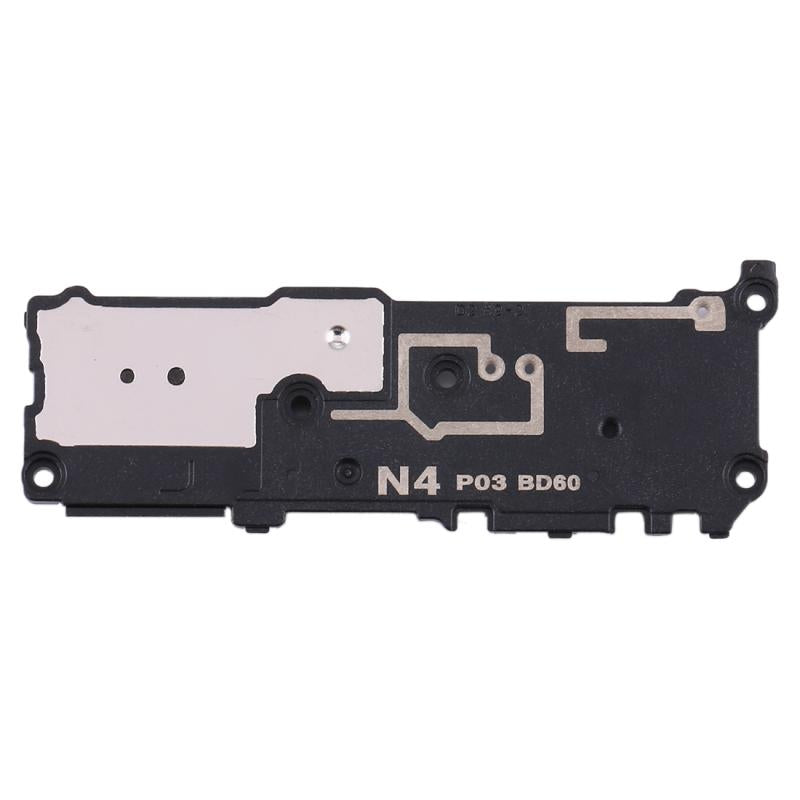

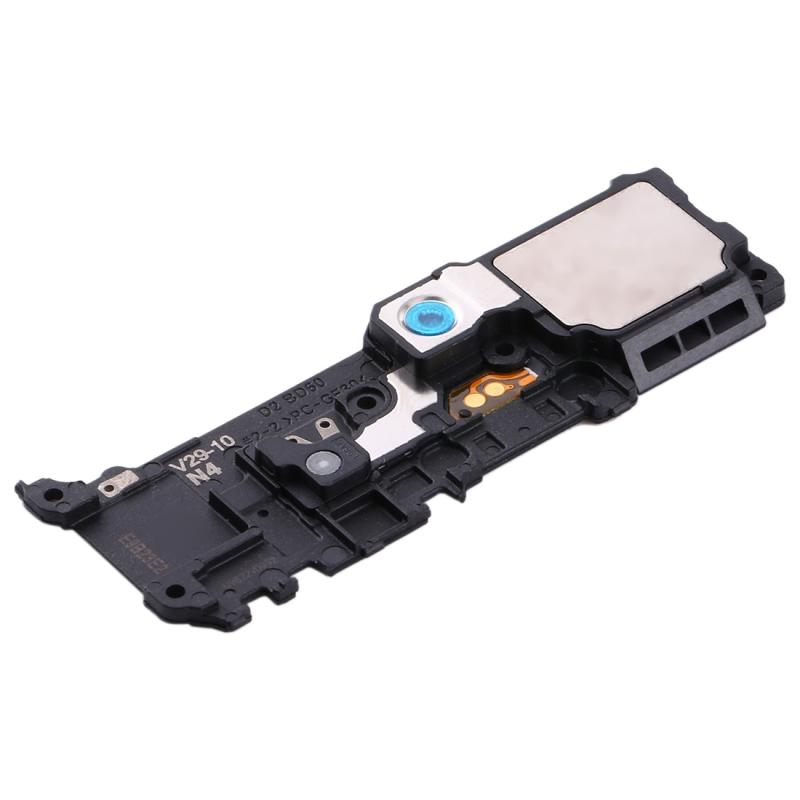

The Samsung Galaxy Note 10+ plays ringtones, music and speakerphone calls through its loudspeaker module at the bottom of the phone. Water, dust or a drop can damage it, and the sound becomes crackly, distorted, very quiet or stops completely.
Before replacing it, clean the speaker grille gently with a soft dry brush and check the volume settings and Bluetooth connections. If sound is still poor, a new module is the likely fix. This part does not change the earpiece used for normal calls.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- Samsung Galaxy Note 10+
- Model numbers
- SM-N975F
- Does not fit
- Galaxy Note 10, Note 10 Lite, Note 20 or any other model
- Fixes
- Crackling, distorted, quiet or no sound from ringtones, media and speakerphone
- Does not fix
- Earpiece (call) sound, microphone faults, or audio faults on the main board
- Quality
- Brand new, OEM-quality loudspeaker module. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy Note 10+
- In the box
- 1 × loudspeaker module. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- Ringtones and music sound crackly or distorted
- No sound from media or speakerphone
- Sound is much quieter than it used to be
- The phone does not ring out loud on incoming calls
How to check your model
Open Settings › About phone and check the model name reads Galaxy Note 10+. The model number should start SM-N975. Compare your old part with the photos before fitting.
The Galaxy Note 10+ has a 6.8-inch Dynamic AMOLED screen and three rear cameras plus a depth sensor.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back cover evenly to soften the adhesive, then lift it off carefully.
- Remove the screws and inner panel, then disconnect the battery before touching any other connector.
- Remove the bottom loudspeaker module and check the contacts on the board are clean.
- Fit the new module, reconnect the battery and test ringtones, media and speakerphone before closing.
- Refit the inner panel and screws, then seal the back cover with new adhesive.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy Note 10+?
Yes, if Settings › About phone shows Galaxy Note 10+ (model SM-N975F). It does not fit the Galaxy Note 10, Note 10 Lite, Note 20.
Does it fit the Galaxy Note 10?
No. The standard Note 10 is smaller (6.3-inch screen) and uses different parts. Only order this for the Galaxy Note 10+.
Will this fix the sound on calls?
Only if you use speakerphone. Normal call audio comes from the earpiece speaker at the top, which is a separate part.
Is it made by Samsung?
No. It is a brand new, OEM-quality loudspeaker module made to fit the Samsung Galaxy Note 10+, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back cover is glued in place and needs gentle heat, and the battery must be disconnected before the speaker is removed.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
