Display FPC Connector
Samsung Galaxy Note 20 Ultra Display FPC Connector Replacement
- Fits
- Samsung Galaxy Note 20 Ultra
- Fixes
- Display socket faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

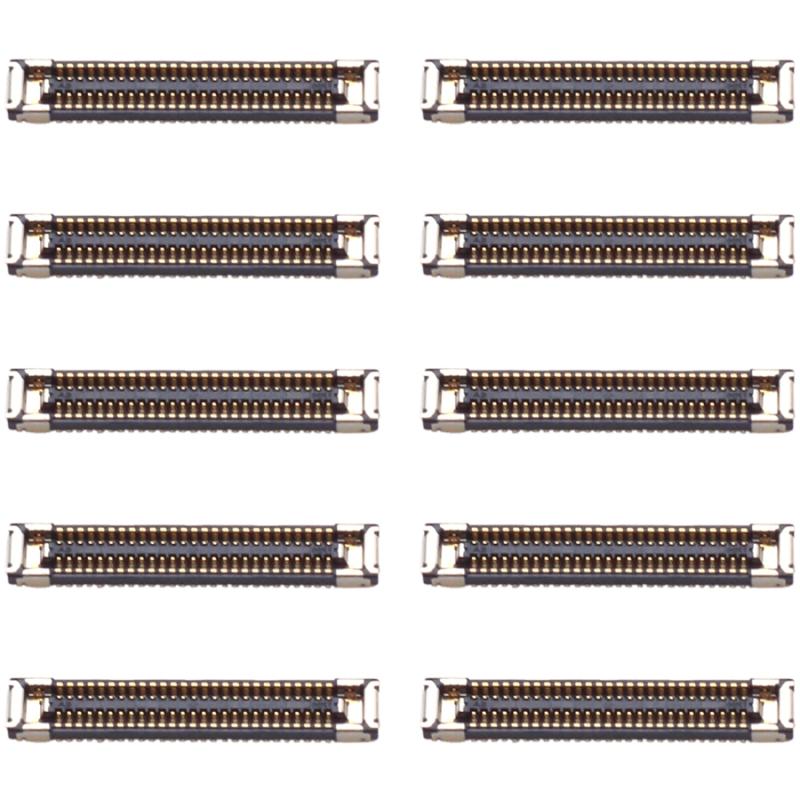

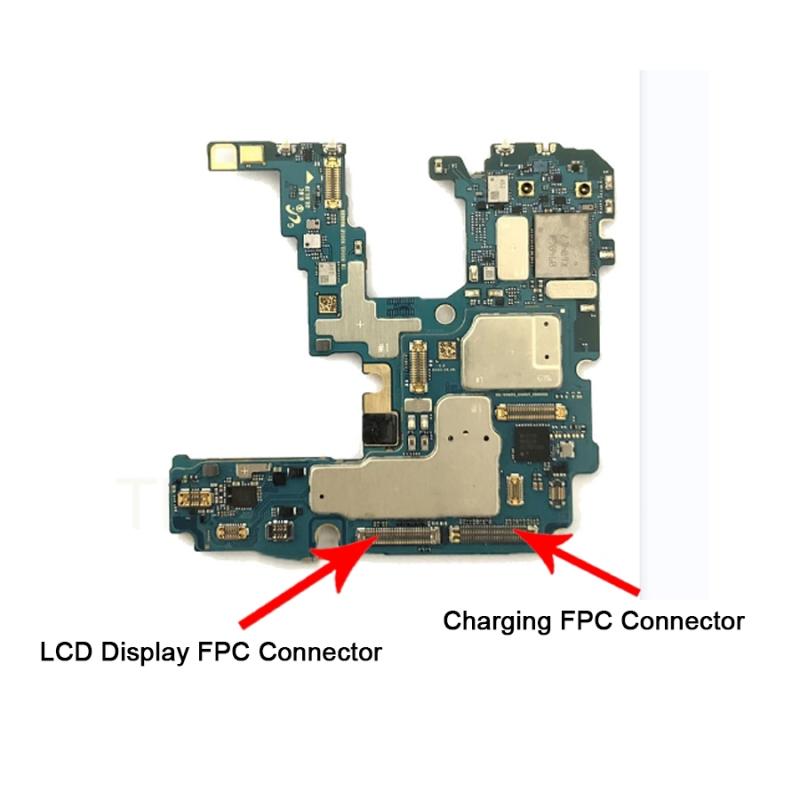

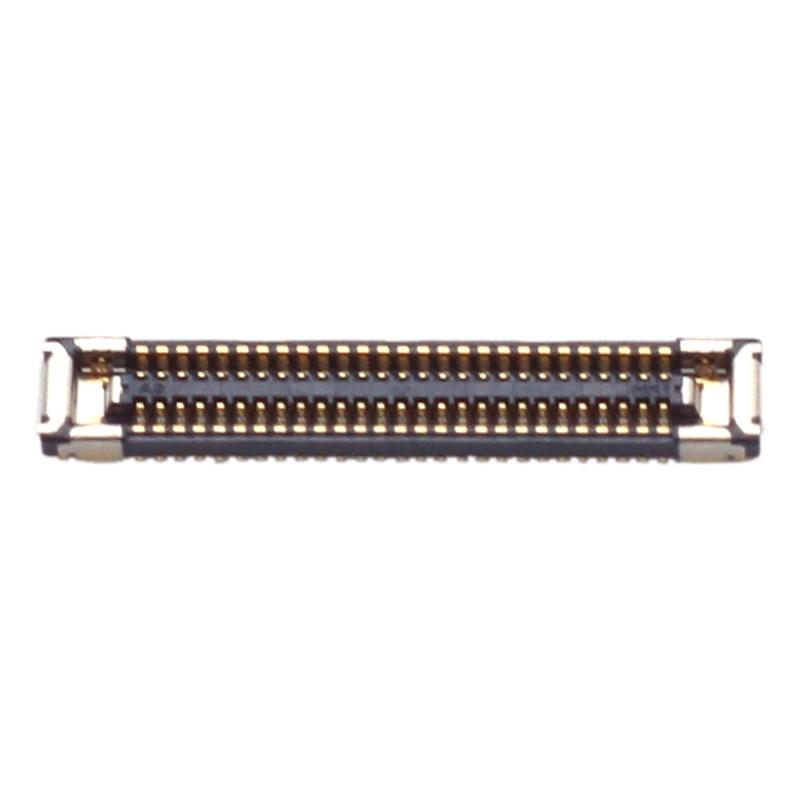

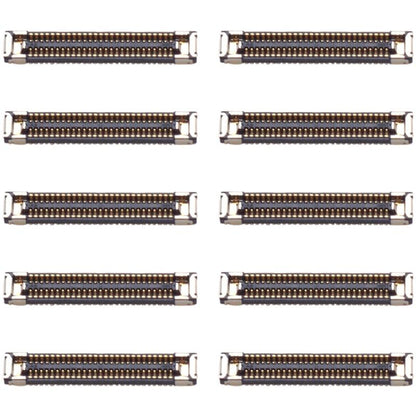

This is the small FPC socket on the Galaxy Note 20 Ultra main board that the screen flex plugs into. If the socket is cracked, has bent pins or is burnt, the screen can stay black or show lines even when the screen itself is fine.
The connector is soldered to the main board, so fitting it needs micro-soldering tools and skill. It is meant for repair technicians. Compare the pin count and shape with the photos before fitting.
Compatibility
Specifications and compatibility
- Part
- Display FPC Connector
- Compatible with
- Samsung Galaxy Note 20 Ultra
- Model numbers
- SM-N985F · SM-N986B
- Does not fit
- Galaxy Note 20, Note 10+, S20 Ultra, S21 Ultra or any other model
- Fixes
- A broken, burnt or damaged display socket on the main board that stops the screen connecting
- Does not fix
- A cracked or faulty screen, a torn display flex, or other main board faults
- Quality
- Brand new, OEM-quality display FPC connector. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy Note 20 Ultra
- In the box
- 1 × display FPC connector (board socket). Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The screen stays black but the phone rings and vibrates
- A new screen was fitted but still shows no picture
- The display socket on the board is cracked or has bent pins
- Lines or flicker appear when the screen connector is pressed
How to check your model
Open Settings › About phone. The name should read Galaxy Note 20 Ultra and the model number should start SM-N985 or SM-N986. Compare your old part with the photos before fitting.
The Galaxy Note 20 Ultra has a curved 6.9-inch screen and a large camera block with three cameras and a laser focus sensor. The standard Note 20 has a flat 6.7-inch screen.
Professional installation
How a technician fits this part
- Power the phone off, open it and disconnect the battery.
- Remove the main board from the phone.
- Preheat the board and remove the damaged connector with hot air, shielding nearby parts.
- Clean the pads, align the new connector and solder it in place.
- Check the pins under a microscope for bridges or open joints.
- Refit the board, connect a screen and test display and touch before closing.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Note 20 Ultra?
Yes, if Settings › About phone shows Galaxy Note 20 Ultra (model SM-N985F or SM-N986B). It does not fit the Galaxy Note 20, Note 10+, S20 Ultra, S21 Ultra.
Does it fit the Galaxy Note 20?
No. The standard Note 20 has a flat screen, a plastic back and a different internal layout. This part is for the Galaxy Note 20 Ultra only.
Is this a cable or a socket?
It is the socket (FPC connector) that sits on the main board, not a flex cable. It must be soldered on, so it is for technicians with micro-soldering tools.
Is it made by Samsung?
No. It is a brand new, OEM-quality display FPC connector made to fit the Samsung Galaxy Note 20 Ultra, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. This connector must be soldered to the main board with hot air and a microscope, which is a specialist job.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
