Display FPC Connector
Samsung Galaxy S20 Display FPC Connector Replacement
- Fits
- Samsung Galaxy S20
- Fixes
- Display socket faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

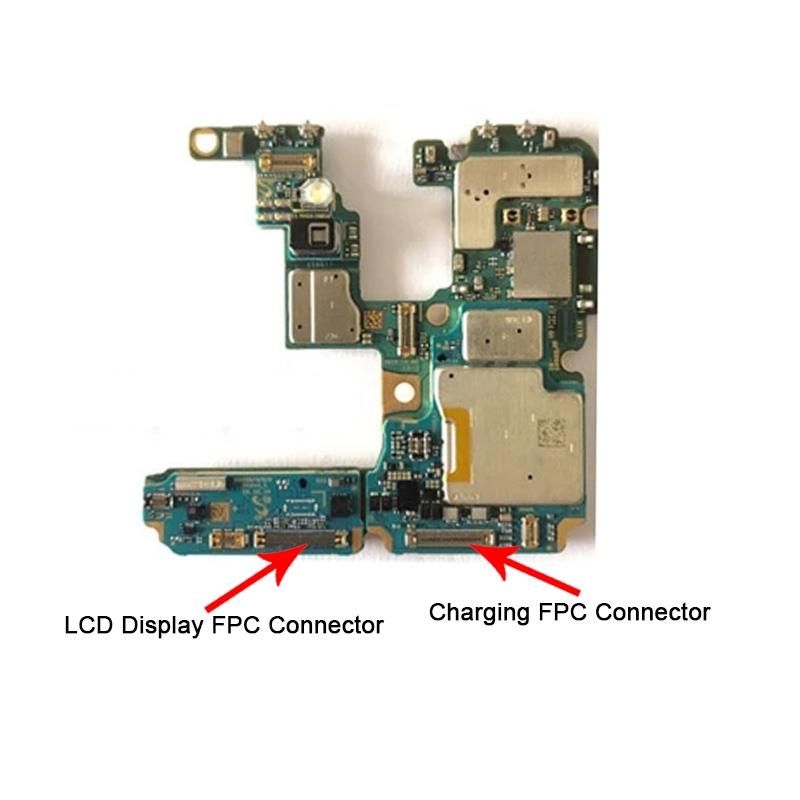

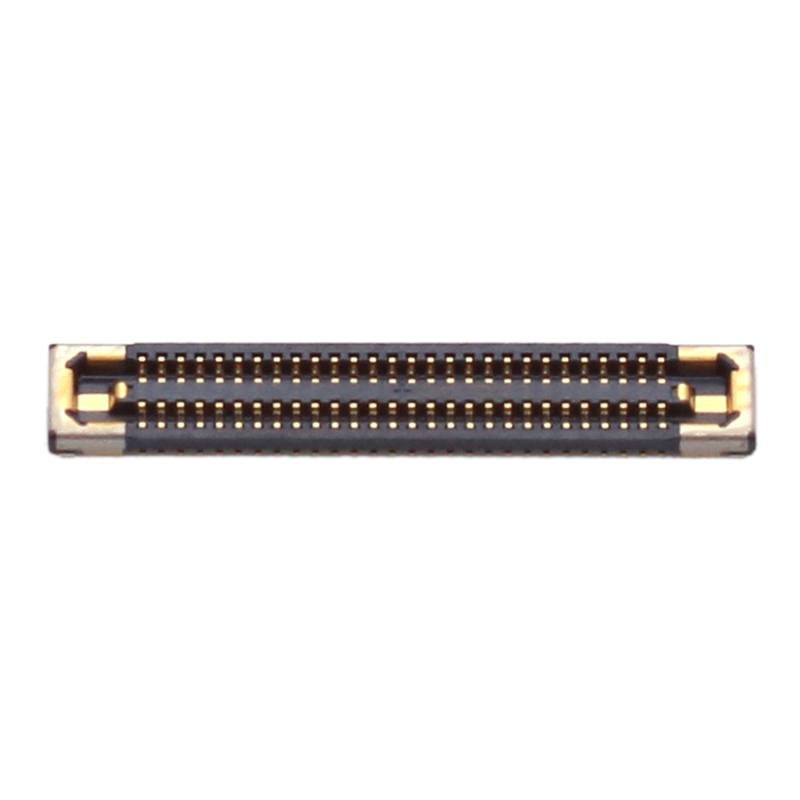

This is the small FPC socket on the Galaxy S20 main board that the screen flex plugs into. If the socket is cracked, has bent pins or is burnt, the screen can stay black or show lines even when the screen itself is fine.
The connector is soldered to the main board, so fitting it needs micro-soldering tools and skill. It is meant for repair technicians. Compare the pin count and shape with the photos before fitting.
Compatibility
Specifications and compatibility
- Part
- Display FPC Connector
- Compatible with
- Samsung Galaxy S20
- Model numbers
- SM-G980F · SM-G981B
- Does not fit
- Galaxy S20+, S20 Ultra, S20 FE, S21 or any other model
- Fixes
- A broken, burnt or damaged display socket on the main board that stops the screen connecting
- Does not fix
- A cracked or faulty screen, a torn display flex, or other main board faults
- Quality
- Brand new, OEM-quality display FPC connector. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy S20
- In the box
- 1 × display FPC connector (board socket). Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The screen stays black but the phone rings and vibrates
- A new screen was fitted but still shows no picture
- The display socket on the board is cracked or has bent pins
- Lines or flicker appear when the screen connector is pressed
How to check your model
Open Settings › About phone. The name should read Galaxy S20 and the model number should start SM-G980 or SM-G981. Compare your old part with the photos before fitting.
The Galaxy S20 has a 6.2-inch screen and three rear cameras. The S20+ is larger at 6.7 inches, and the S20 FE has a flat 6.5-inch screen.
Professional installation
How a technician fits this part
- Power the phone off, open it and disconnect the battery.
- Remove the main board from the phone.
- Preheat the board and remove the damaged connector with hot air, shielding nearby parts.
- Clean the pads, align the new connector and solder it in place.
- Check the pins under a microscope for bridges or open joints.
- Refit the board, connect a screen and test display and touch before closing.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my S20?
Yes, if Settings › About phone shows Galaxy S20 (model SM-G980F or SM-G981B). It does not fit the Galaxy S20+, S20 Ultra, S20 FE, S21.
Does it fit the Galaxy S20 FE?
No. The S20 FE is a different phone with a flat screen and a different internal layout. This part is for the Galaxy S20 only.
Is this a cable or a socket?
It is the socket (FPC connector) that sits on the main board, not a flex cable. It must be soldered on, so it is for technicians with micro-soldering tools.
Is it made by Samsung?
No. It is a brand new, OEM-quality display FPC connector made to fit the Samsung Galaxy S20, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. This connector must be soldered to the main board with hot air and a microscope, which is a specialist job.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
