Loudspeaker

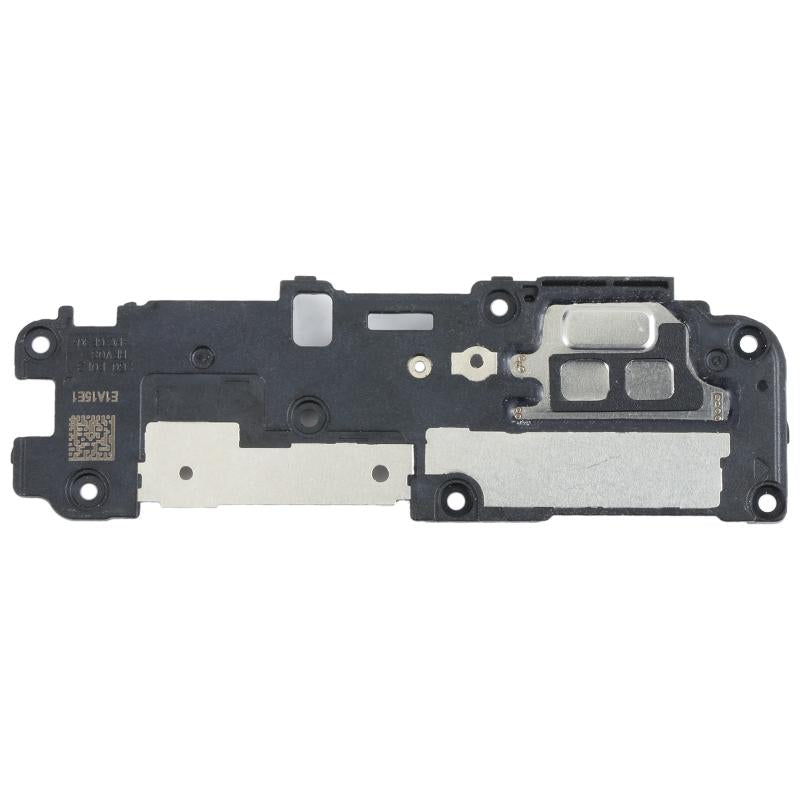

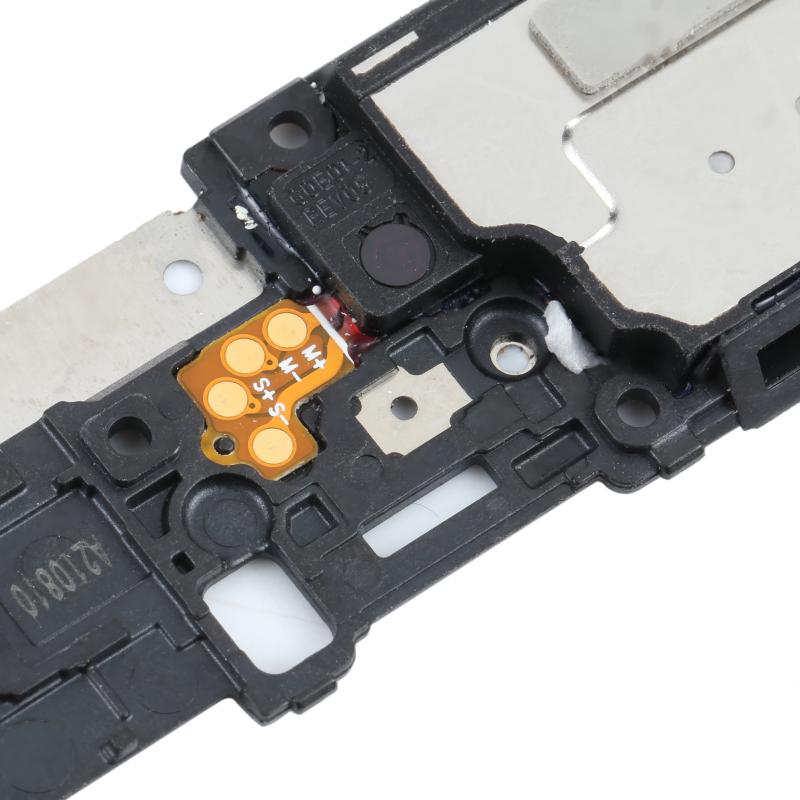

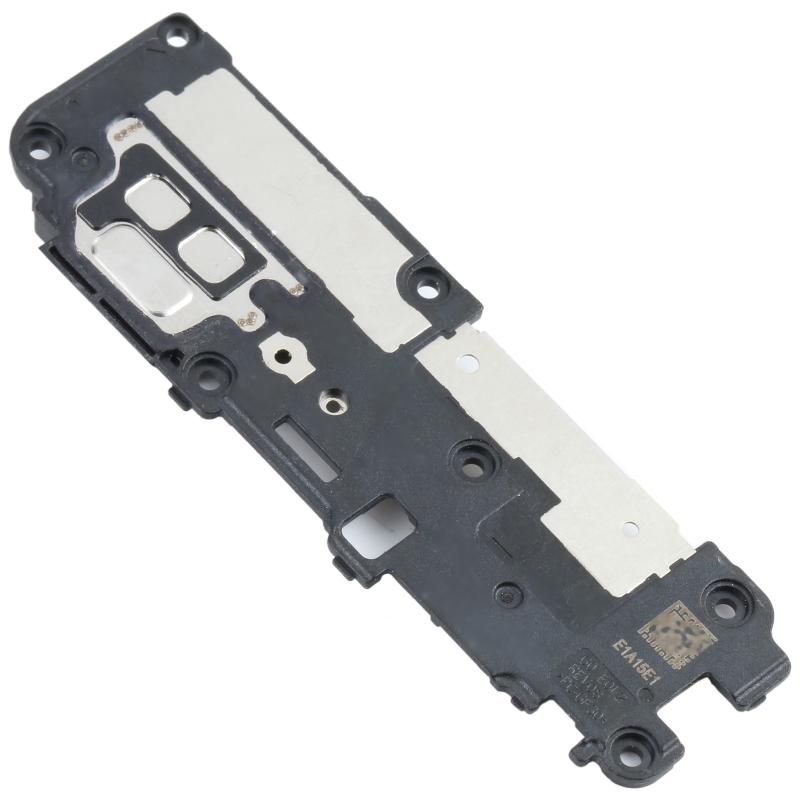

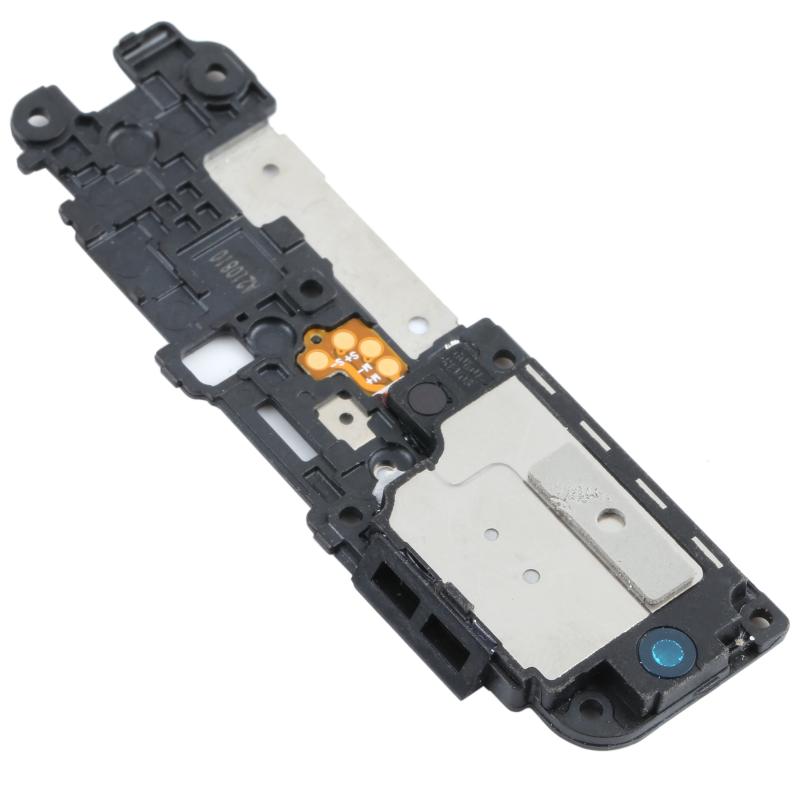

Samsung Galaxy S22+ Loudspeaker Replacement
- Fits
- Samsung Galaxy S22+
- Fixes
- No or crackly sound
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the Galaxy S22+, the bottom loudspeaker plays ringtones, alarms, media and speakerphone calls. Water, dust and drops can leave it quiet, buzzing or completely silent.
Before replacing it, check the volume, turn off Bluetooth and clean the speaker grille gently with a soft brush. If sound is still missing or distorted, a new loudspeaker module usually brings it back. The earpiece used for normal calls is a separate part.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- Samsung Galaxy S22+
- Model numbers
- SM-S906B
- Does not fit
- Galaxy S22, S22 Ultra or S21+
- Fixes
- Silent, quiet, crackly or distorted loudspeaker sound, ringtones and speakerphone
- Does not fix
- Earpiece, microphone, headphone or motherboard audio faults
- Quality
- Brand new, OEM-quality loudspeaker. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy S22+
- In the box
- 1 × loudspeaker module. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- No ringtone or alarm sound, even at full volume
- Music and videos sound crackly or distorted
- Speakerphone calls are quiet or silent
- Sound buzzes or rattles at higher volume
How to check your model
Open Settings › About phone. The name should read Galaxy S22+ and the model number should be SM-S906B (UK models start SM-). Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back glass edges and lift it off carefully with a thin pick.
- Remove the screws and the inner cover over the main board, then disconnect the battery.
- Remove the lower cover, lift out the old loudspeaker and fit the new one in the same position.
- Reconnect the battery and test ringtone, music and speakerphone sound before closing.
- Refit the inner cover and screws, apply new back adhesive and press the back glass on evenly.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my S22+?
Yes, if Settings › About phone shows Samsung Galaxy S22+ (SM-S906B). It does not fit the Galaxy S22, S22 Ultra or S21+.
Does it fit the Galaxy S22?
No. This loudspeaker is listed for the Galaxy S22+ only. The S22 uses a different part.
Will this fix a quiet earpiece on calls?
No. The loudspeaker plays ringtones, media and speakerphone. The earpiece at the top of the phone is a separate part.
Is it made by Samsung?
No. It is a brand new, OEM-quality part made to fit the Samsung Galaxy S22+, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back glass has to be heated and lifted, the battery must be disconnected first, and small flex cables are easy to damage.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
