Power & Volume Button Flex Cable
Samsung Galaxy S22 Ultra Power & Volume Button Flex Cable Replacement
- Fits
- Samsung Galaxy S22 Ultra
- Fixes
- Unresponsive side buttons
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

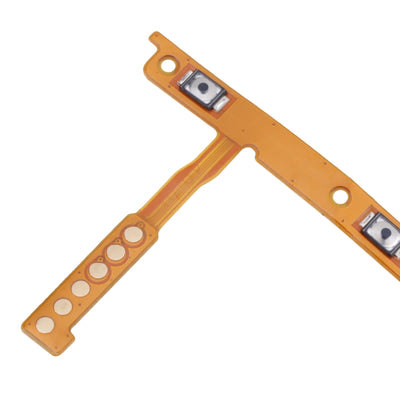

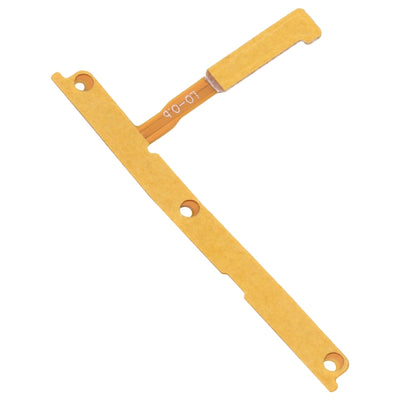

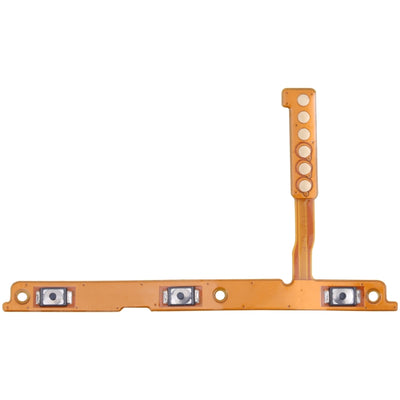

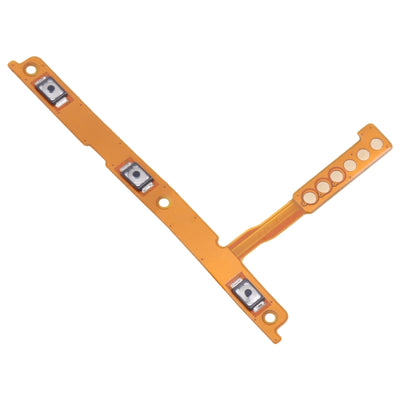

The Galaxy S22 Ultra has its power (side) key and volume keys on the right edge. Behind them, a thin flex cable carries small switches that register each press and connects them to the motherboard. Drops, bending and liquid can damage it.
Before you order, check the buttons are not simply blocked by a tight case or dirt, and restart the phone to rule out a software glitch. If a key still does not click or respond, the flex is the usual cause. If a button cap itself is broken or missing, it is a separate part and is not included.
Compatibility
Specifications and compatibility
- Part
- Power & Volume Button Flex Cable
- Compatible with
- Samsung Galaxy S22 Ultra
- Model numbers
- SM-S908B
- Does not fit
- Galaxy S22, S22+, S23 Ultra or any other model
- Fixes
- A power (side) key or volume keys that do not respond, work only sometimes, or trigger on their own
- Does not fix
- Broken or missing button caps on the frame, software faults, or a phone that will not power on for other reasons
- Quality
- Brand new, OEM-quality power and volume button flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy S22 Ultra
- In the box
- 1 × power and volume button flex cable. Check the photos for any tools or adhesive included.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The side key needs several presses to wake the phone
- Volume up or down does nothing
- A key triggers by itself, such as screenshots or volume changing
- The buttons feel flat with no click
How to check your model
Open Settings › About phone. The model name should read Galaxy S22 Ultra, and the model number should start SM-S908B. The model number is also printed on the phone's box.
The Galaxy S22 Ultra has a 6.8-inch curved screen, a built-in S Pen and four rear cameras. The S23 Ultra looks very similar, so always check the model code.
Professional installation
How a technician fits this part
- Power the phone off and warm the back glass to soften the adhesive.
- Lift the back glass off and remove the covers over the motherboard.
- Disconnect the battery before touching any other connector.
- Unplug the side key flex, peel it gently from the inside of the frame and lift it out.
- Place the new flex with the switches lined up behind the buttons, then reconnect it and the battery.
- Test power and both volume keys, then refit the covers and seal the back glass.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy S22 Ultra?
Yes, if the model number in Settings › About phone starts SM-S908B.
Does it fit the Galaxy S23 Ultra?
No. The Galaxy S23 Ultra (SM-S918B) uses a different side key flex.
Will this fix a button that is physically broken?
No. The metal button caps are separate parts and are not included. This flex fixes keys that are still in place but do not respond.
Is it made by Samsung?
No. It is a brand new, OEM-quality power and volume button flex cable made to fit the Galaxy S22 Ultra, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back glass is glued on and needs heat, and the flex is thin and tears easily if pulled.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders from £5.
