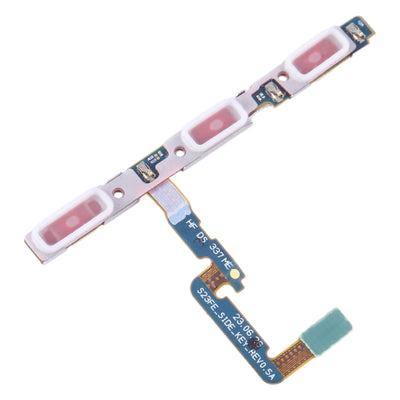

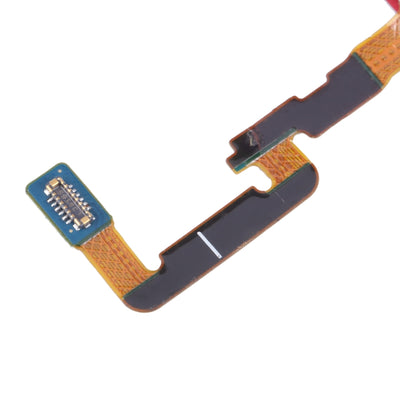

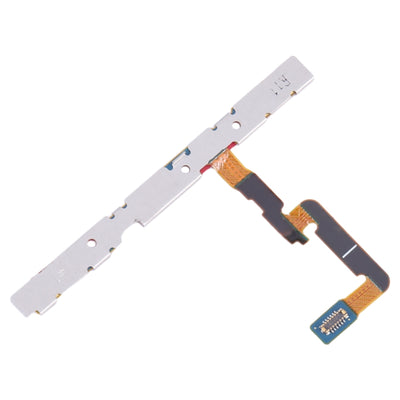

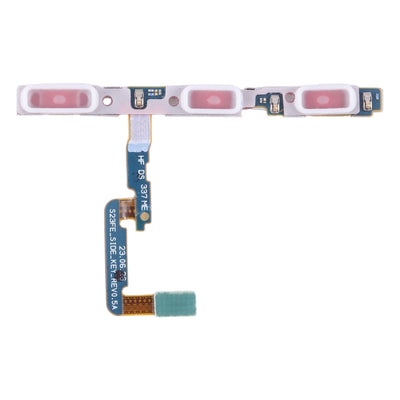

Power & Volume Button Flex Cable
Samsung Galaxy S23 FE Power & Volume Button Flex Cable Replacement
- Fits
- Samsung Galaxy S23 FE
- Fixes
- Unresponsive side buttons
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The Galaxy S23 FE has its side key and volume keys on the right edge. Inside the frame, a thin flex cable holds a small switch behind each key and links them to the motherboard. Bending, drops and liquid can crack the flex or its switches.
Before you order, check the buttons are not simply blocked by a tight case or dirt, and restart the phone to rule out a software glitch. If a key still does not click or respond, the flex is the usual cause. If a button cap itself is broken or missing, it is a separate part and is not included.
Compatibility
Specifications and compatibility
- Part
- Power & Volume Button Flex Cable
- Compatible with
- Samsung Galaxy S23 FE
- Model numbers
- SM-S711B
- Does not fit
- Galaxy S23, S23+, S21 FE or any other model
- Fixes
- A power (side) key or volume keys that do not respond, work only sometimes, or trigger on their own
- Does not fix
- Broken or missing button caps on the frame, software faults, or a phone that will not power on for other reasons
- Quality
- Brand new, OEM-quality power and volume button flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy S23 FE
- In the box
- 1 × power and volume button flex cable. Check the photos for any tools or adhesive included.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The side key needs several presses to wake the phone
- Volume up or down does nothing
- A key triggers by itself, such as screenshots or volume changing
- The buttons feel flat with no click
How to check your model
Open Settings › About phone. The model name should read Galaxy S23 FE, and the model number should start SM-S711B. The model number is also printed on the phone's box.
The Galaxy S23 FE has a 6.4-inch flat screen and three rear cameras. The S21 FE looks similar, so always check the model code.
Professional installation
How a technician fits this part
- Power the phone off and warm the back glass to soften the adhesive.
- Lift the back glass off and remove the covers over the motherboard.
- Disconnect the battery before touching any other connector.
- Unplug the side key flex, peel it gently from the inside of the frame and lift it out.
- Place the new flex with the switches lined up behind the buttons, then reconnect it and the battery.
- Test power and both volume keys, then refit the covers and seal the back glass.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy S23 FE?
Yes, if the model number in Settings › About phone starts SM-S711B.
Does it fit the Galaxy S21 FE?
No. The Galaxy S21 FE (SM-G990B) uses a different side key flex.
Will this fix a button that is physically broken?
No. The metal button caps are separate parts and are not included. This flex fixes keys that are still in place but do not respond.
Is it made by Samsung?
No. It is a brand new, OEM-quality power and volume button flex cable made to fit the Galaxy S23 FE, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back glass is glued on and needs heat, and the flex is thin and tears easily if pulled.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders from £5.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
