Samsung Galaxy S24 Ultra Motherboard Connector Flex Cable Replacement
- Fits
- Samsung Galaxy S24 Ultra
- Fixes
- Main flex faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The main flex in the Galaxy S24 Ultra runs along the inside of the phone and connects the motherboard to the sub-board at the bottom, which carries the charging port. Signals for charging, sound and signal pass through it. A drop, a previous repair or liquid can tear or corrode it.
A faulty main flex can cause several faults at once, such as no charging, no microphone and weak signal. It is a common part to replace when the charging port board alone did not fix the problem. Compare the connectors with the photos before fitting.
Compatibility
Specifications and compatibility

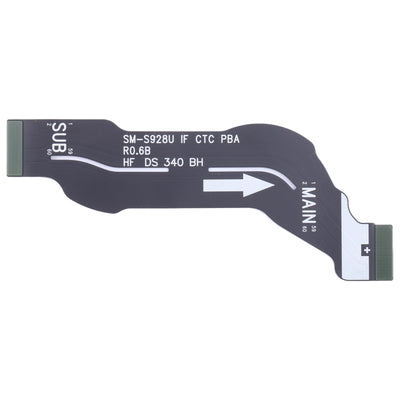

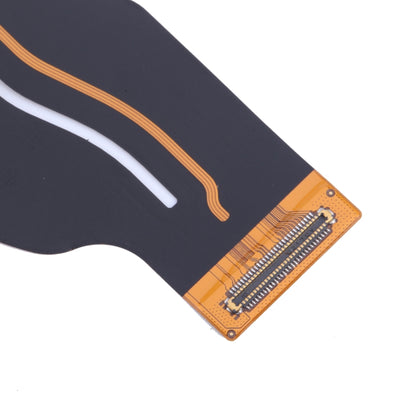

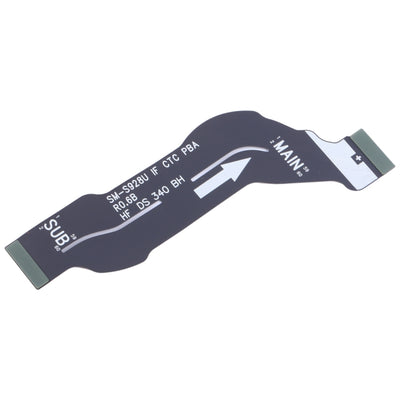

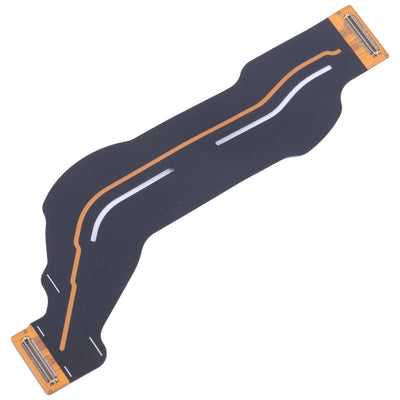

- Part
- Motherboard Connector Flex Cable
- Compatible with
- Samsung Galaxy S24 Ultra
- Model numbers
- SM-S928B
- Does not fit
- Galaxy S23 Ultra, Galaxy S25 Ultra, Galaxy S24+ or any other model
- Fixes
- Faults caused by a torn, creased or corroded main flex cable
- Does not fix
- A faulty motherboard, a worn-out battery or a faulty charging port board
- Quality
- Brand new, OEM-quality motherboard connector flex cable for the Samsung Galaxy S24 Ultra. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy S24 Ultra
- In the box
- 1 × motherboard connector flex cable for the Galaxy S24 Ultra. Check the photos for any tools or adhesive included.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone does not charge even with a new charging port
- The bottom microphone or loudspeaker stopped working at the same time
- Signal is weak or drops after a previous repair
- The old flex is visibly torn, creased or corroded
How to check your model
Open Settings › About phone. The model name should read Galaxy S24 Ultra and the model number should start SM-S928.
The Galaxy S24 Ultra has a 6.8-inch screen, four rear cameras and a built-in S Pen.
Professional installation
How a technician fits this part
- Power the phone off, then warm the back glass and lift it with a suction cup and a thin pick.
- Disconnect the battery before touching any other connector.
- Remove the covers over the motherboard and sub-board, then unplug both ends of the old flex.
- Route the new flex exactly as the old one and press each connector home.
- Test charging, sound, microphone and signal before closing the phone.
- Apply new adhesive, refit the back glass and press evenly while it cures.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy S24 Ultra?
Yes, if Settings › About phone shows Galaxy S24 Ultra with model number SM-S928B. It does not fit the Galaxy S23 Ultra, Galaxy S25 Ultra or Galaxy S24+.
Does it fit the Galaxy S23 Ultra?
No. The Galaxy S23 Ultra looks similar but has a different frame and internal layout. This part is for the Galaxy S24 Ultra only.
How do I know the main flex is the fault?
If several bottom-of-phone functions fail together, such as charging and the microphone, or a new charging port did not help, the main flex is a likely cause. A technician can confirm this when the phone is open.
Is it made by Samsung?
No. It is a brand new, OEM-quality motherboard connector flex cable made to fit the Samsung Galaxy S24 Ultra, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back glass has to be heated and lifted, new adhesive is needed, and the battery must be disconnected before any flex cable is touched.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders from £5. Returns are accepted within 30 days from receipt.
