Charging Port Board
Samsung Galaxy Tab A7 10.4 (2020) Charging Port Board Replacement
- Fits
- Samsung Galaxy Tab A7 10.4 (2020)
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

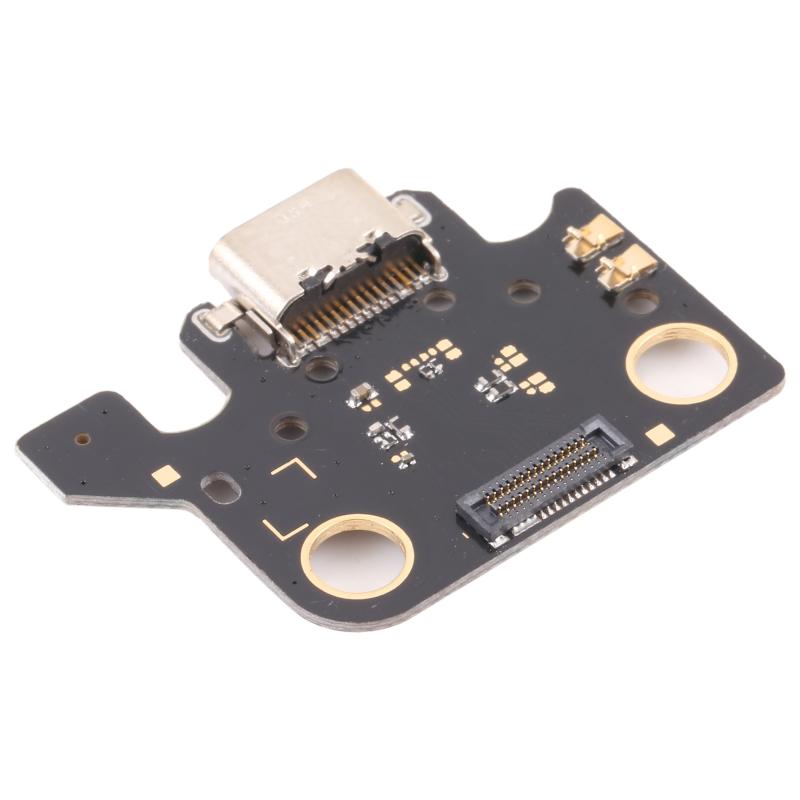

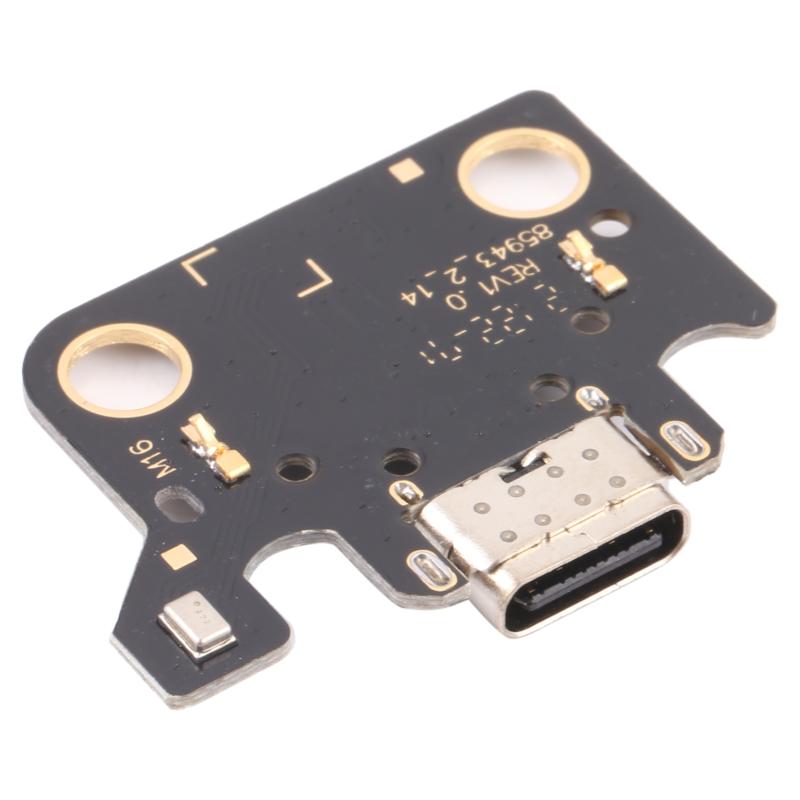

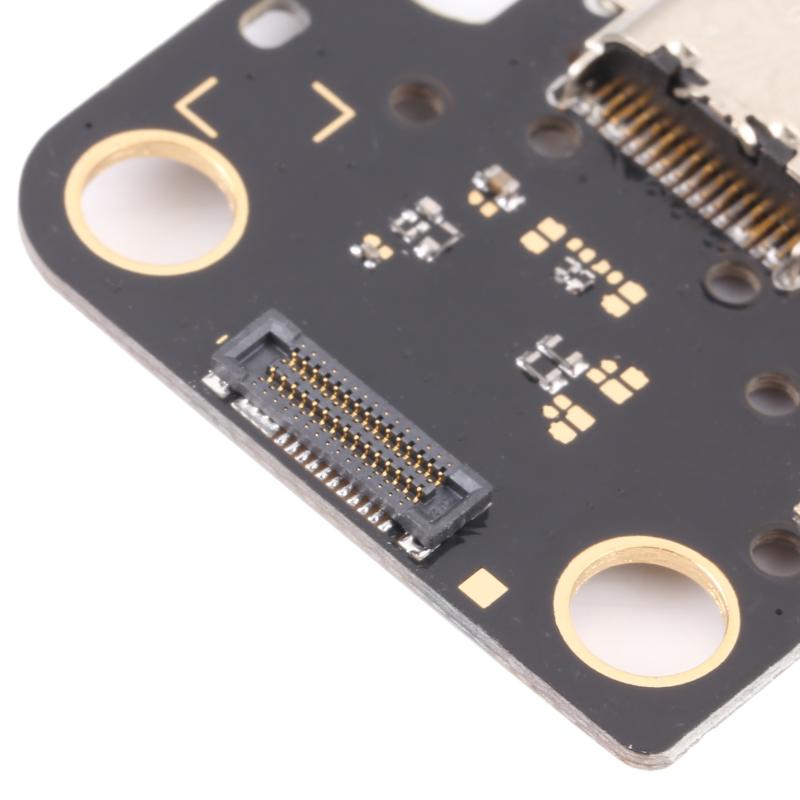

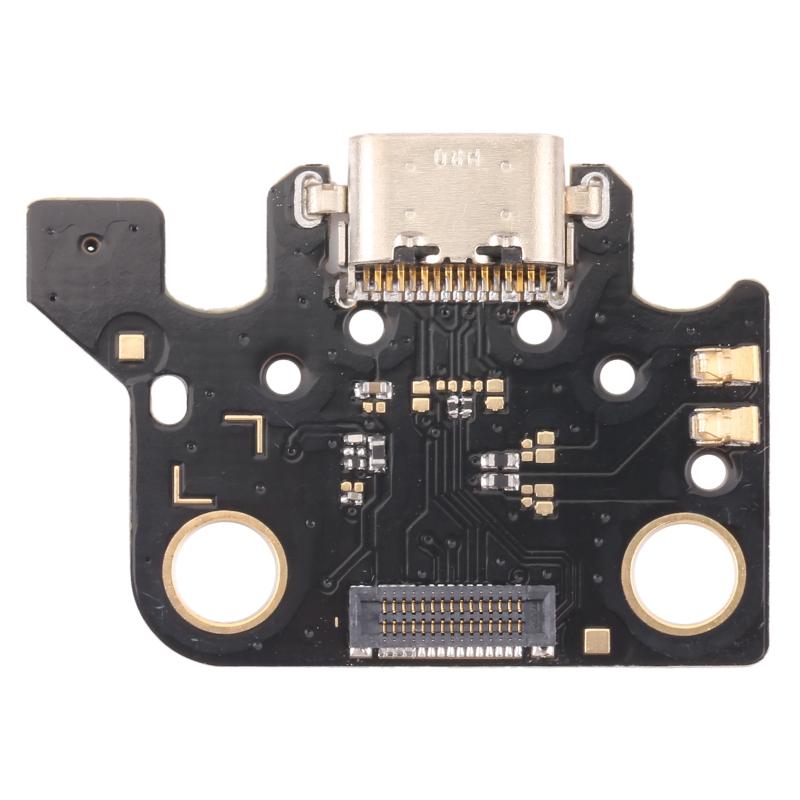

The USB-C socket on the Galaxy Tab A7 10.4 (2020) wears with daily plugging in, and dust or a bent pin can stop it working. This part is a small board with the USB-C socket soldered on.
It connects to the main board with a press-on connector, so no soldering is needed. Before buying, try a different cable and plug, and clean the socket gently with a wooden or plastic pick.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Samsung Galaxy Tab A7 10.4 (2020)
- Model numbers
- SM-T500 · SM-T505
- Does not fit
- Galaxy Tab A7 Lite, Tab A8 or Tab S6 Lite or any other model
- Fixes
- No charging, loose or intermittent charging, and no connection to a computer
- Does not fix
- Battery faults, a failed charging chip on the main board, or screen faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy Tab A7 10.4 (2020)
- In the box
- 1 × USB-C charging port board. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The tablet does not charge with a known good cable and plug
- Charging only works when the cable is held at an angle
- The cable feels loose in the socket
- A computer does not detect the tablet over USB
How to check your model
Open Settings › About tablet. The name should read Galaxy Tab A7 10.4 (2020) and the model number should be SM-T500 or SM-T505 (UK models start SM-). Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Power the tablet off and remove the SIM or micro SD tray.
- Open the tablet as the service guide for this model describes, using gentle heat on glued edges.
- Disconnect the battery before touching any other connector.
- Unplug and unscrew the old part, then fit the new one and press its connectors home.
- Reconnect the battery and test charging and USB data before closing.
- Refit any shields and close the tablet, pressing the edges down evenly.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Tab A7 10.4?
Yes, if Settings › About tablet shows Samsung Galaxy Tab A7 10.4 (2020) (SM-T500 or SM-T505). It does not fit the Galaxy Tab A7 Lite, Tab A8 or Tab S6 Lite.
Does it fit the Galaxy Tab A7 Lite?
No. The Galaxy Tab A7 Lite uses a different part. This one is for the Galaxy Tab A7 10.4 (2020) only.
Does it need soldering?
No. The charging port board connects with a press-on connector and screws. The tablet still has to be opened carefully.
Is it made by Samsung?
No. It is a brand new, OEM-quality part made to fit the Samsung Galaxy Tab A7 10.4 (2020), and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Tab A7 10.4 has to be opened carefully, the battery must be disconnected first, and small connectors are easy to damage.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
