Charging Port Connector
Samsung Galaxy Tab E 9.6 Charging Port Connector Replacement
- Fits
- Samsung Galaxy Tab E 9.6
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

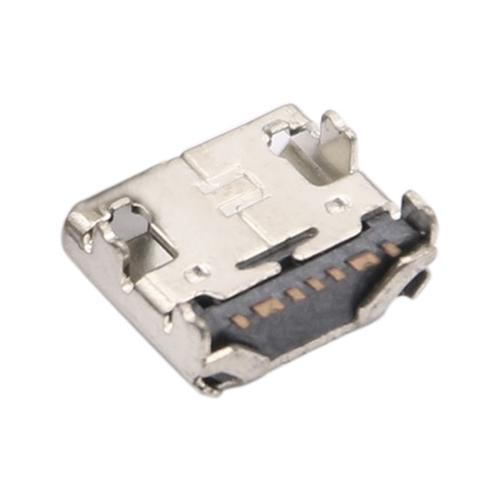

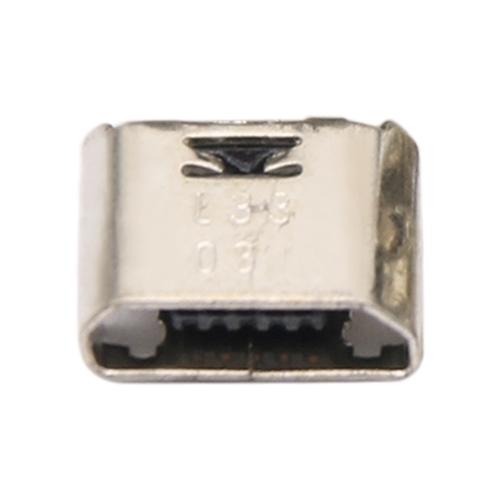

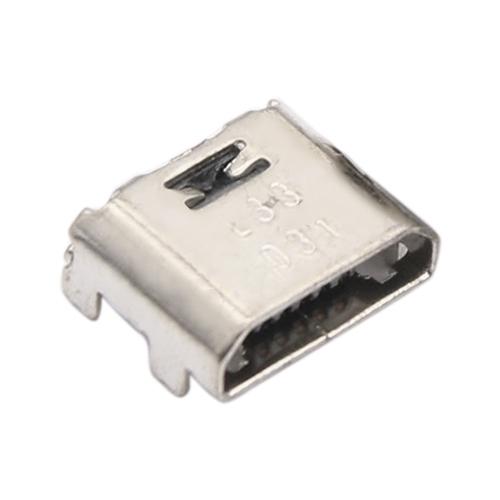

The Micro USB socket on the Galaxy Tab E 9.6 wears with daily plugging in, and dust or a bent pin can stop it working. This part is the bare Micro USB socket only, which is soldered onto the tablet's board.
Fitting it needs soldering, so it is a job for a technician with a micro-soldering station. Before buying, try a different cable and plug, and clean the socket gently with a wooden or plastic pick.
Compatibility
Specifications and compatibility
- Part
- Charging Port Connector
- Compatible with
- Samsung Galaxy Tab E 9.6
- Model numbers
- SM-T560
- Does not fit
- Galaxy Tab A 10.1 (2016), Tab A 9.7 or Tab 4 10.1 or any other model
- Fixes
- No charging, loose or intermittent charging, and no connection to a computer
- Does not fix
- Battery faults, a failed charging chip on the main board, or screen faults
- Quality
- Brand new, OEM-quality charging port connector. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy Tab E 9.6
- In the box
- 1 × Micro USB charging port connector. Check the photos for the exact item and quantity supplied.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The tablet does not charge with a known good cable and plug
- Charging only works when the cable is held at an angle
- The cable feels loose in the socket
- A computer does not detect the tablet over USB
How to check your model
Open Settings › About tablet. The name should read Galaxy Tab E 9.6 and the model number should be SM-T560 (UK models start SM-). Compare your old part with the photos before fitting.
Professional installation
How a technician fits this part
- Power the tablet off and remove the SIM or micro SD tray.
- Open the tablet as the service guide for this model describes, using gentle heat on glued edges.
- Disconnect the battery before touching any other connector.
- Desolder the old socket and solder the new connector in place.
- Reconnect the battery and test charging and USB data before closing.
- Refit any shields and close the tablet, pressing the edges down evenly.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Tab E 9.6?
Yes, if Settings › About tablet shows Samsung Galaxy Tab E 9.6 (SM-T560). It does not fit the Galaxy Tab A 10.1 (2016), Tab A 9.7 or Tab 4 10.1.
Does it fit the Galaxy Tab A 9.7?
No. The Galaxy Tab A 9.7 uses a different part. This one is for the Galaxy Tab E 9.6 only.
Does it need soldering?
Yes. This is the bare Micro USB connector, so the old socket must be desoldered and the new one soldered to the board. It needs a micro-soldering station.
Is it made by Samsung?
No. It is a brand new, OEM-quality part made to fit the Samsung Galaxy Tab E 9.6, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Tab E 9.6 has to be opened carefully, the battery must be disconnected first, and small connectors are easy to damage.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
