Charging Port Board
Samsung Galaxy S21 5G Charging Port Board Replacement
- Fits
- Samsung Galaxy S21 5G
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

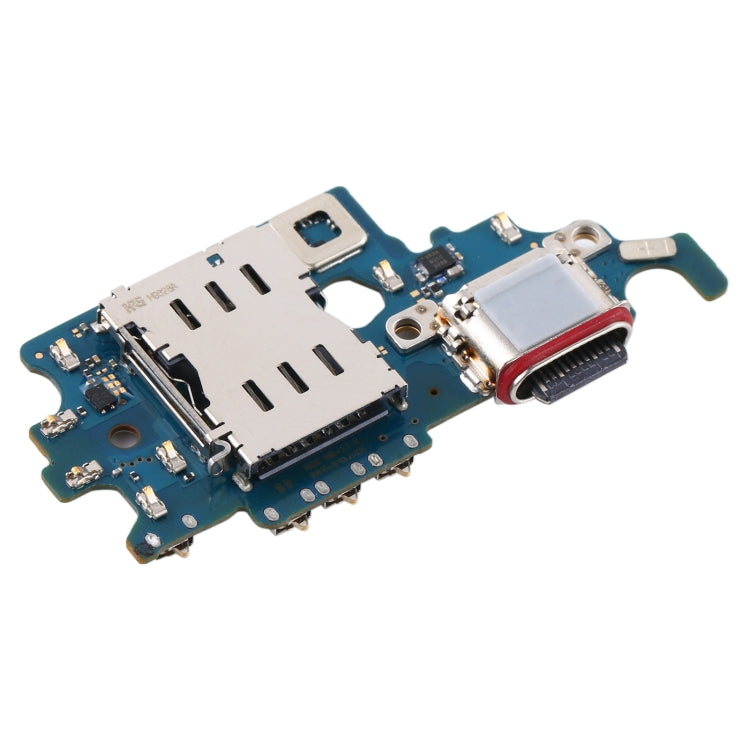

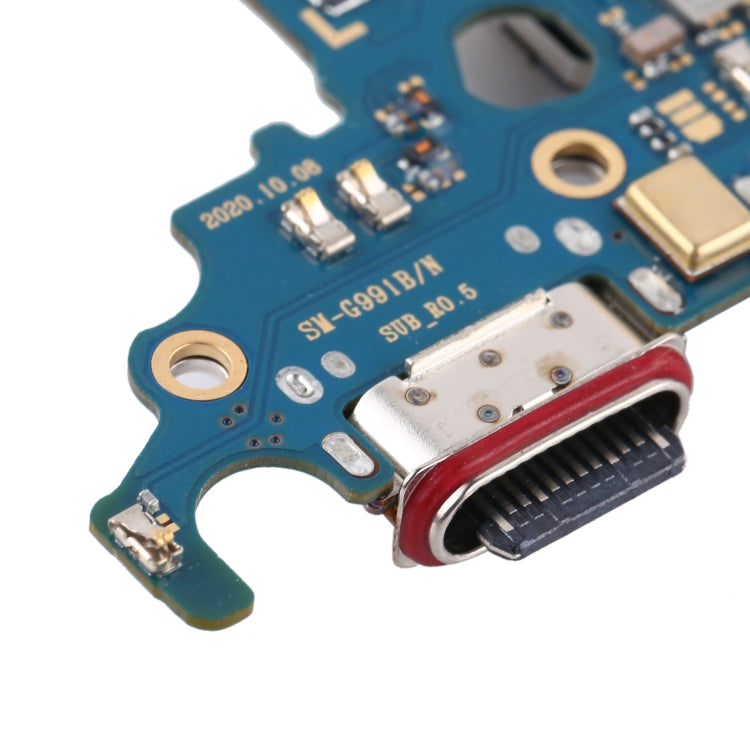

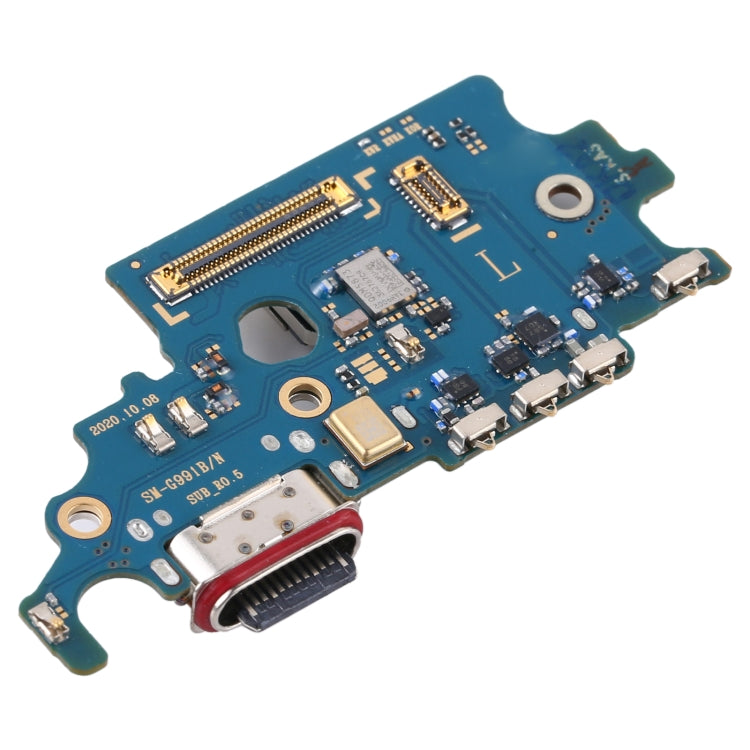

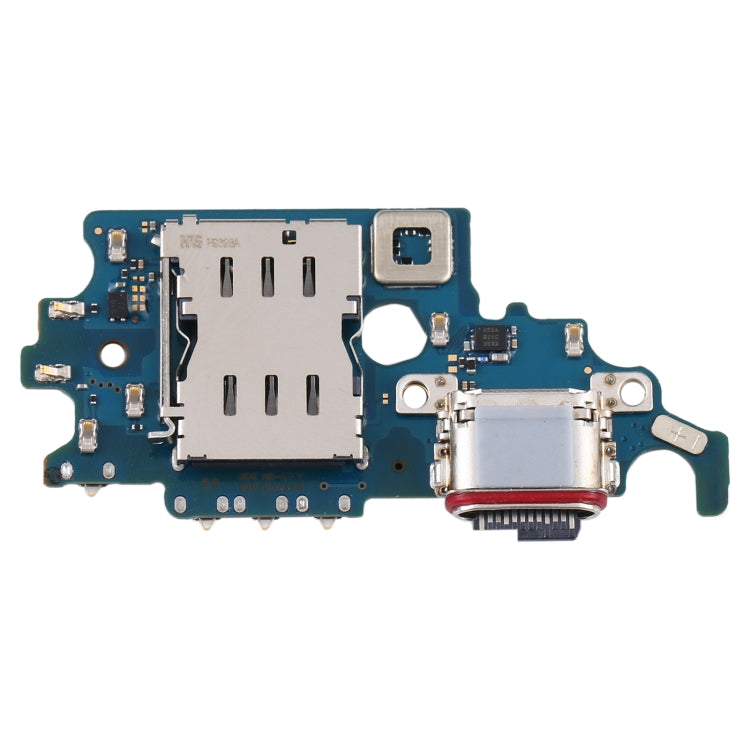

The Galaxy S21 5G charges through a USB-C port on a small board at the bottom of the phone. A flex cable connects it to the main board. Over time the port wears, collects lint or corrodes, and charging becomes unreliable.
This board replaces the port as one assembly, with no soldering. This is the EU version, listed for the UK and European SM-G991B. Try another cable and charger first, and clean the port gently with a non-metal tool.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Samsung Galaxy S21 5G
- Model numbers
- SM-G991B
- Does not fit
- Galaxy S21+, S21 Ultra, S21 FE, US model SM-G991U or any other model
- Fixes
- No charging, slow or intermittent charging, a loose cable and no USB data connection
- Does not fix
- A worn-out battery, wireless charging faults or main board power faults
- Quality
- Brand new, OEM-quality USB-C charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy S21 5G
- In the box
- 1 × USB-C charging port board for the Galaxy S21 5G.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone will not charge with a known good cable
- Charging only works at an angle
- A computer does not see the phone over USB
- The moisture warning appears when the port is dry
How to check your model
Open Settings › About phone. The Model name should read Galaxy S21 5G. The Model number should read SM-G991B.
The Galaxy S21 has a 6.2-inch flat screen and three rear cameras. The S21+ is larger, with a 6.7-inch screen.
Professional installation
How a technician fits this part
- Power the Galaxy S21 5G off and warm the edges of the back cover to soften the adhesive.
- Lift the back cover carefully and disconnect the battery before anything else.
- Remove the screws and the loudspeaker cover to reach the charging port board.
- Disconnect the board flex, remove the old board and fit the new one, pressing the connectors fully home.
- Reconnect the battery and test wired charging, fast charging and a USB data connection before closing.
- Fit new back cover adhesive, close the phone and press evenly while it cures.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy S21 5G?
Yes, if Settings › About phone shows Galaxy S21 5G and the model number is SM-G991B.
Does it fit the Galaxy S21+ or a US S21?
No. The S21+ uses a different board, and this one is the EU version for the SM-G991B. US models (SM-G991U) are not listed.
Does it support fast charging?
Yes, the board carries the same USB-C connection the Galaxy S21 5G uses for fast charging. Charging speed also depends on your charger, cable and battery health.
Is it made by Samsung?
No. It is a brand new, OEM-quality charging port board made to fit the Galaxy S21 5G, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back cover is glued, internal covers must be removed and the battery must be disconnected safely.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders from £5.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
